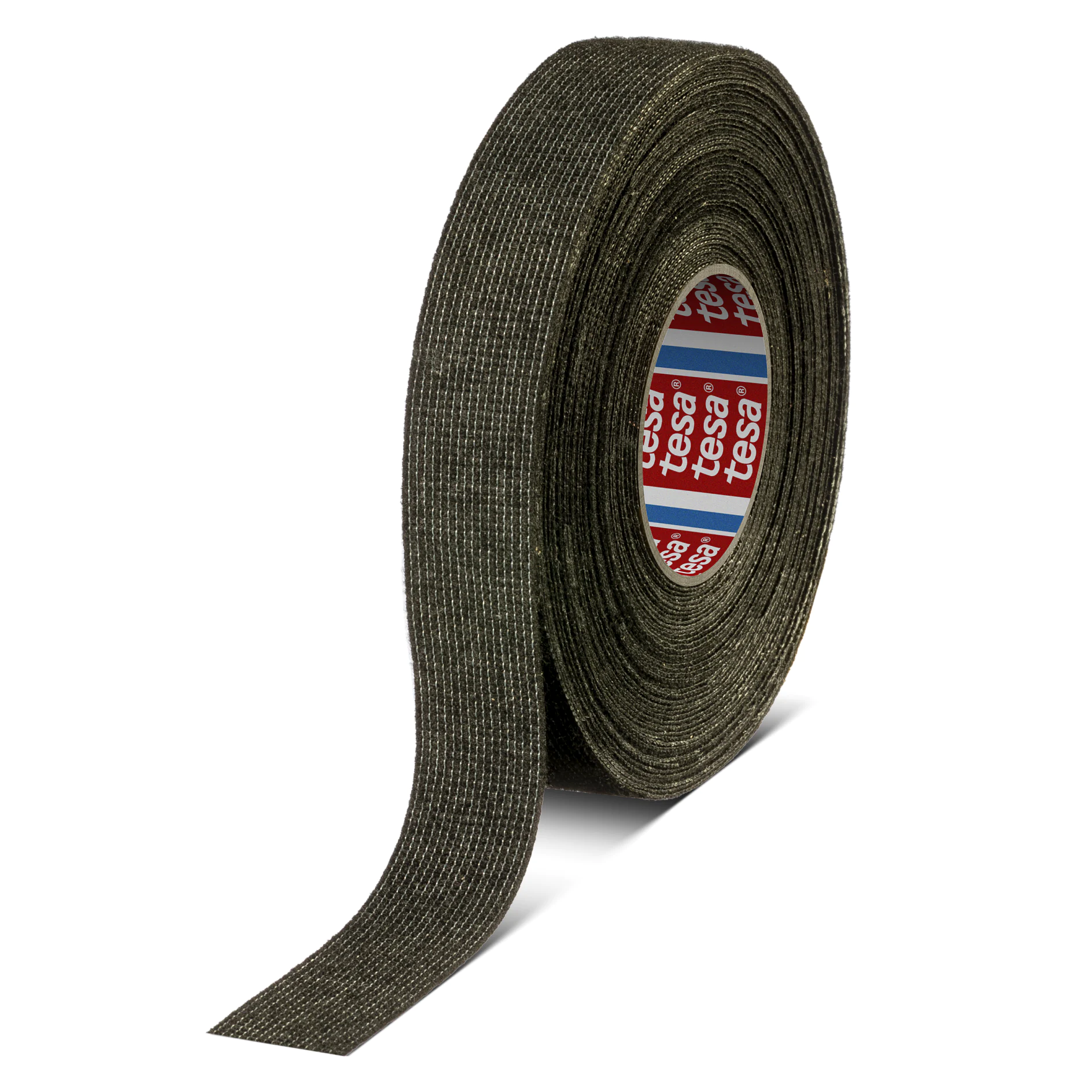

tesa® 51616 ID

Thick PET fleece tape for high noise damping with identifier solution

  • High noise damping
  • High abrasion resistance
  • Handtearable
  • Identifier solution

Product description

tesa® 51616 ID is a PET fleece wire harness tape with a rubber based adhesive.
Color: Black

Application Fields

tesa® 51616 ID is designed for the passenger compartment, providing high noise damping.

Product Construction

Elongation at break 35 %
Type of adhesive rubber based
Tensile strength 30 N/cm
Total thickness 650 µm
Backing material PET fleece

Properties / Performance Values

Abrasion resistance (5mm mandrel) Class C (acc. to LV312)
Temperature resistance (3000h) 105 °C
Temperature resistance min. -40 °C
Unwind force (roll width ≤ 9mm) 12 N/roll (30 m/min)
Unwind force (roll width > 9mm) 12 N/roll (30 m/min)
Noise damping (decibel) Class D (acc. to LV312) dB
Abrasion resistance (10mm mandrel) Class D (acc. to LV312)

Adhesion to Values

Adhesion to steel 3 N/cm

Additional Info

Standard width: 19 mm
Standard length: 10 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm

Note: Elongation at break value depicts the minimum value.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
