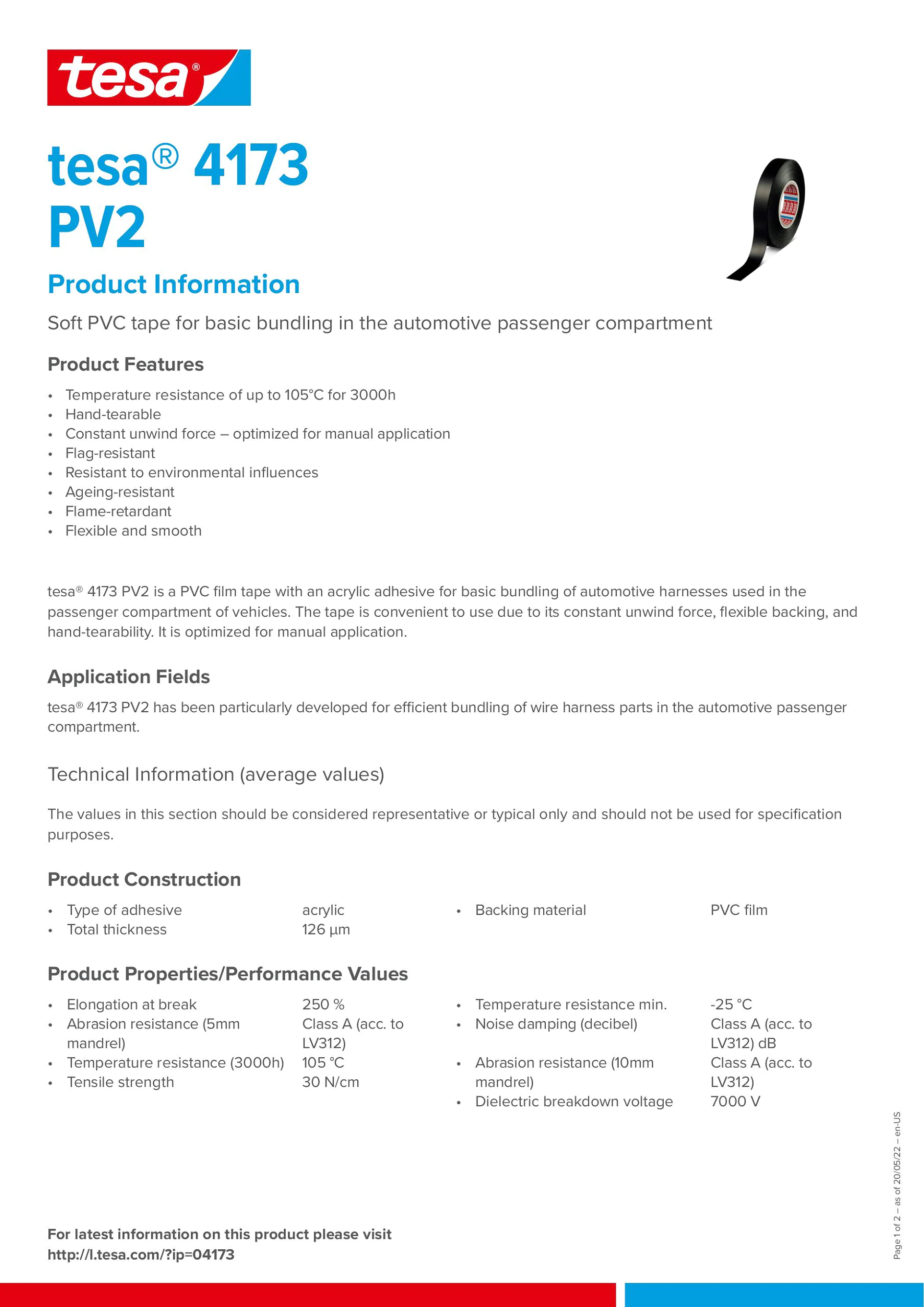

PDF – 35.1 kB
Product description

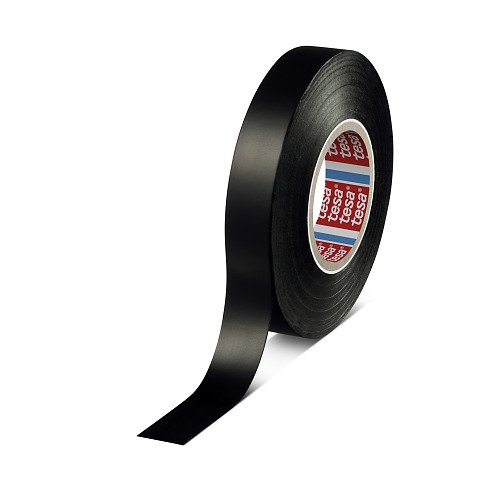

tesa® 4173 PV2 is a PVC film tape with an acrylic adhesive for basic bundling of automotive harnesses used in the passenger compartment of vehicles. The tape is convenient to use due to its constant unwind force, flexible backing, and hand-tearability. It is optimized for manual application.tesa® 4173 PV2 is resistant to temperatures of up to 105°C for 3000 hours, and is class B flame-resistant. The bundling tape is resistant to abrasion and features class A noise damping.
Main features:
- Temperature resistance of up to 105°C for 3000h
- Hand-tearable
- Constant unwind force – optimized for manual application
- Flag-resistant
- Resistant to environmental influences
- Ageing-resistant
- Flame-retardant
- Flexible and smooth
Main applications
tesa® 4173 PV2 has been particularly developed for efficient bundling of wire harness parts in the automotive passenger compartment.
Technical properties
Elongation at break
250 %
Type of adhesive
acrylic
Abrasion resistance (5mm mandrel)
Class A (acc. to LV312)
Temperature resistance min.
-25 °C
Temperature resistance (3000h)
105 °C
Tensile strength
30 N/cm
Total thickness
126 µm
Backing material
PVC film
Adhesion to steel
1.8 N/cm
Flame resistance as composite
Class B (acc. to LV312)
Noise damping (decibel)
Class A (acc. to LV312)
Abrasion resistance (10mm mandrel)
Class A (acc. to LV312)
Dielectric breakdown voltage
7000 volt
Additional Info
Standard widths: 9, 19, 25, 32 mmStandard lengths: 33 m
*Most combinations of width and length are possible
*Further dimensions are available upon request
*Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
