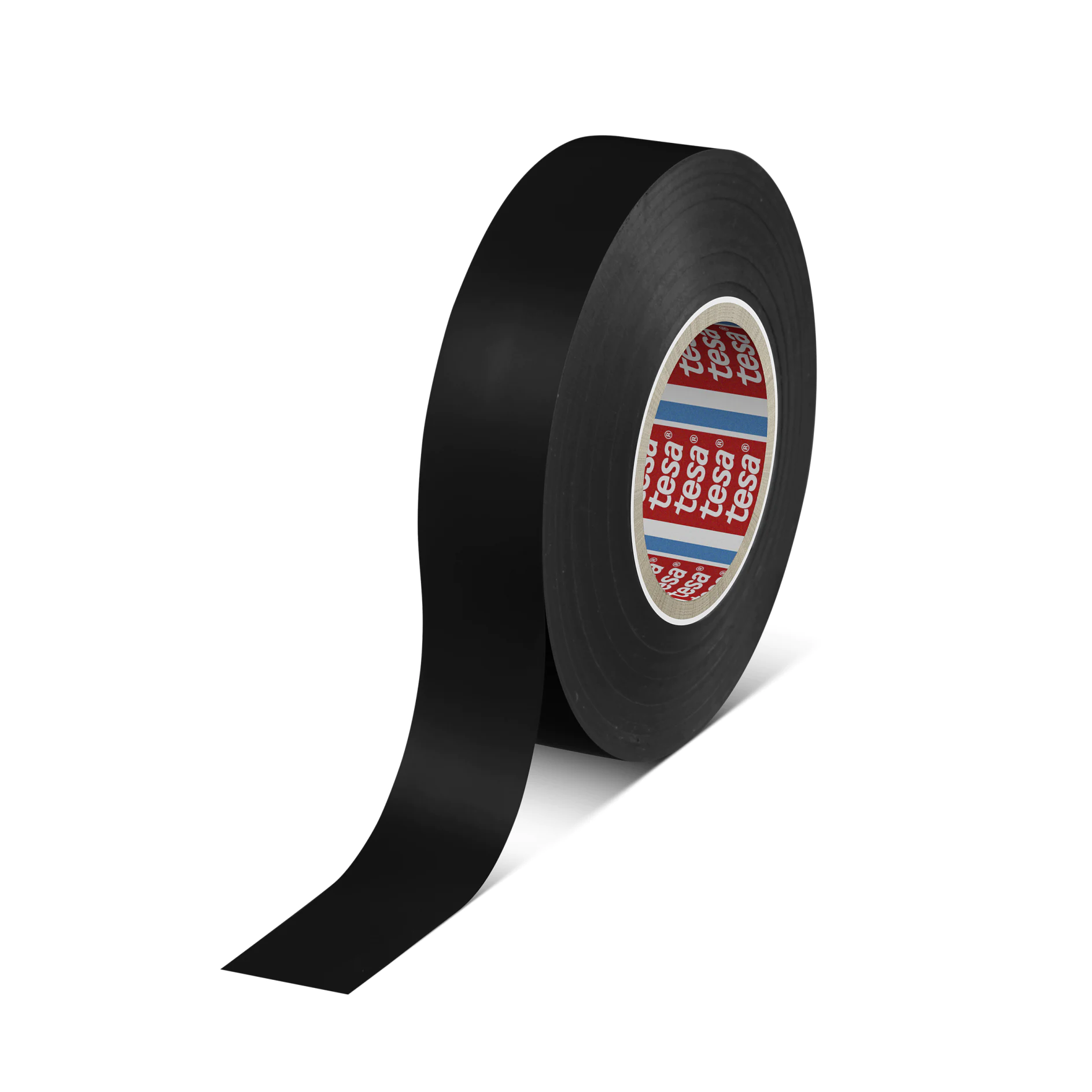

tesa® 4163

Multipurpose Soft PVC Premium


Product description

tesa® 4163 is a specially formulated Soft PVC tape with a good film flexibility. Due to the UV stable acrylic adhesive it is suitable for permanent applications.


Product details and specifications

Application Fields

tesaflex® 4163 is ideal for the following applications:

  • Installation
  • Repairing
  • Marking
  • Splicing
  • Bundling
Backing material soft PVC
Total thickness 126 µm
Type of adhesive acrylic
Elongation at break 295 %
Tensile strength 30 N/cm
Dielectric breakdown voltage 7,000 V
Adhesion to steel 1.8 N/cm

Certificates

  • US 302
It conforms to US safety standard 302. The isogenogrey colour is suitable for instalation of water pipes.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 4163 tesa® 58353 tesa® 54411 tesa® 58358 tesa® 58353 tesa® 4646 tesa® 4648 tesa® 60462 Duct Tape tesa® 4615 PCR duct tape tesa® 4621 Multipurpose - Perfect Tear Edge tesa® 4657 PV0
Total thickness
126 µm
85
220 µm
85 µm
180 µm
120 µm
215 µm
175 µm
125 µm
290 µm
Type of adhesive
acrylic
modified acrylic
acrylic
modified acrylic
modified acrylic
acrylic
natural rubber
synthetic rubber
synthetic rubber
acrylic
thermosetting natural rubber
Backing material
soft PVC
PETP
Ionomer film
PETP
PETP
PE film
PE film
PE laminated cloth
PE laminated cloth
PE extruded cloth
Acrylic-coated cloth
