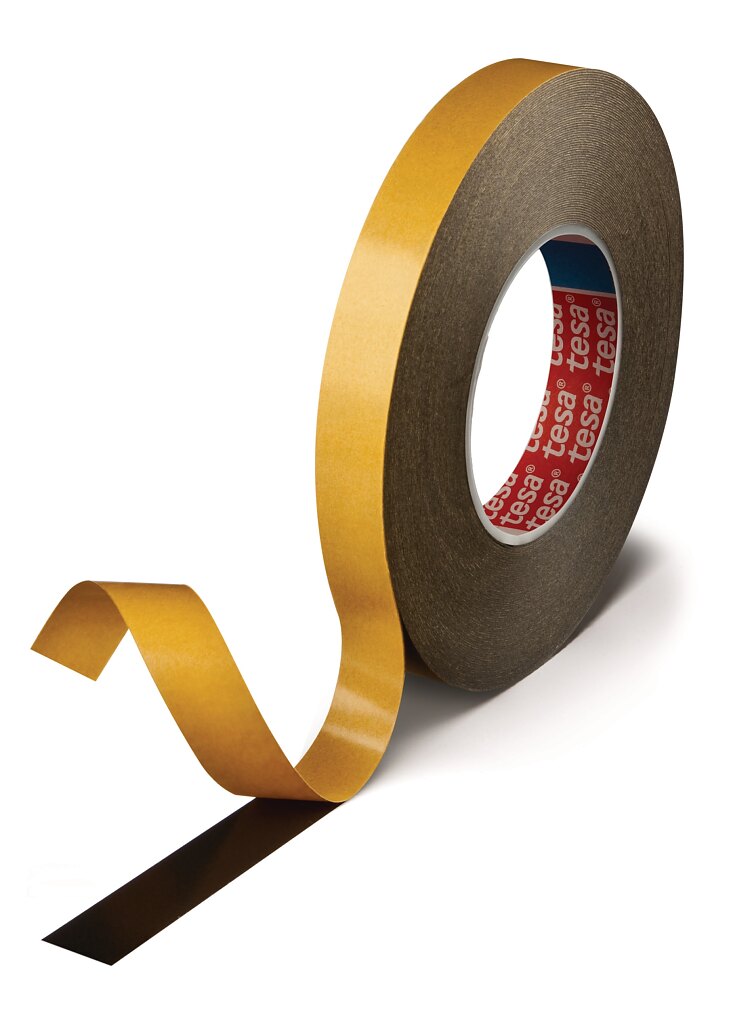

tesa® 62852
Double-sided PE foam tape
Product Features
- High ultimate adhesive strength
- Excellent temperature resistance
- Excellent converting properties, especially for filigree designs
Product description
tesa® 62852 is a double-sided tape consisting of a PE foam backing and a pure acrylic adhesive.
tesa® 62852 features especially:
- High ultimate adhesive strength for a secure bonding performance
- Conformable foam backing to compensate design tolerances or uneven surfaces
- Excellent temperature resistance performance
- Excellent converting properties
Product details and specifications
Product Features
- High ultimate adhesive strength
- Excellent temperature resistance
- Excellent converting properties, especially for filigree designs
- Conformable foam backing to compensate for design tolerances or uneven surfaces
- The black color allows for an almost invisible bond line.
- Due to the high conformability, the tape ensures a good wet out and secure bonding even on uneven surfaces and compensates for design tolerances.
Application Fields
- Permanent mounting of emblems and letters; e.g. single letters for classification of car model or engine data
Product Construction
| Backing material | PE foam |
|---|---|
| Colour | black |
| Colour of liner | brown |
| Thickness of liner | 71 µm |
| Total thickness | 5,000 µm |
| Type of adhesive | pure acrylic |
| Type of liner | glassine |
| Weight of liner | 80 g/m² |
Product Construction
| Backing material | PE foam |
|---|---|
| Colour | black |
| Colour of liner | brown |
| Thickness of liner | 71 µm |
| Total thickness | 5,000 µm |
| Type of adhesive | pure acrylic |
| Type of liner | glassine |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 400 % |
|---|---|
| Tensile strength | 8 N/cm |
| Temperature resistance long term duration | 90 °C |
| Static shear resistance at 40°C | very good |
| Temperature resistance short term duration | 100 °C |
| Static shear resistance at 70°C | very good |
Properties / Performance Values
| Elongation at break | 400 % |
|---|---|
| Tensile strength | 8 N/cm |
| Temperature resistance long term duration | 90 °C |
| Static shear resistance at 40°C | very good |
| Temperature resistance short term duration | 100 °C |
| Static shear resistance at 70°C | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 6 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 13 N/cm |
| Adhesion to PE (initial) | 1.5 N/cm |
| Adhesion to PE (after 14 days) | 1.5 N/cm |
| Adhesion to Steel (initial) | 9.5 N/cm |
| Adhesion to Steel (after 14 days) | 20 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 6 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 13 N/cm |
| Adhesion to PE (initial) | 1.5 N/cm |
| Adhesion to PE (after 14 days) | 1.5 N/cm |
| Adhesion to Steel (initial) | 9.5 N/cm |
| Adhesion to Steel (after 14 days) | 20 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
