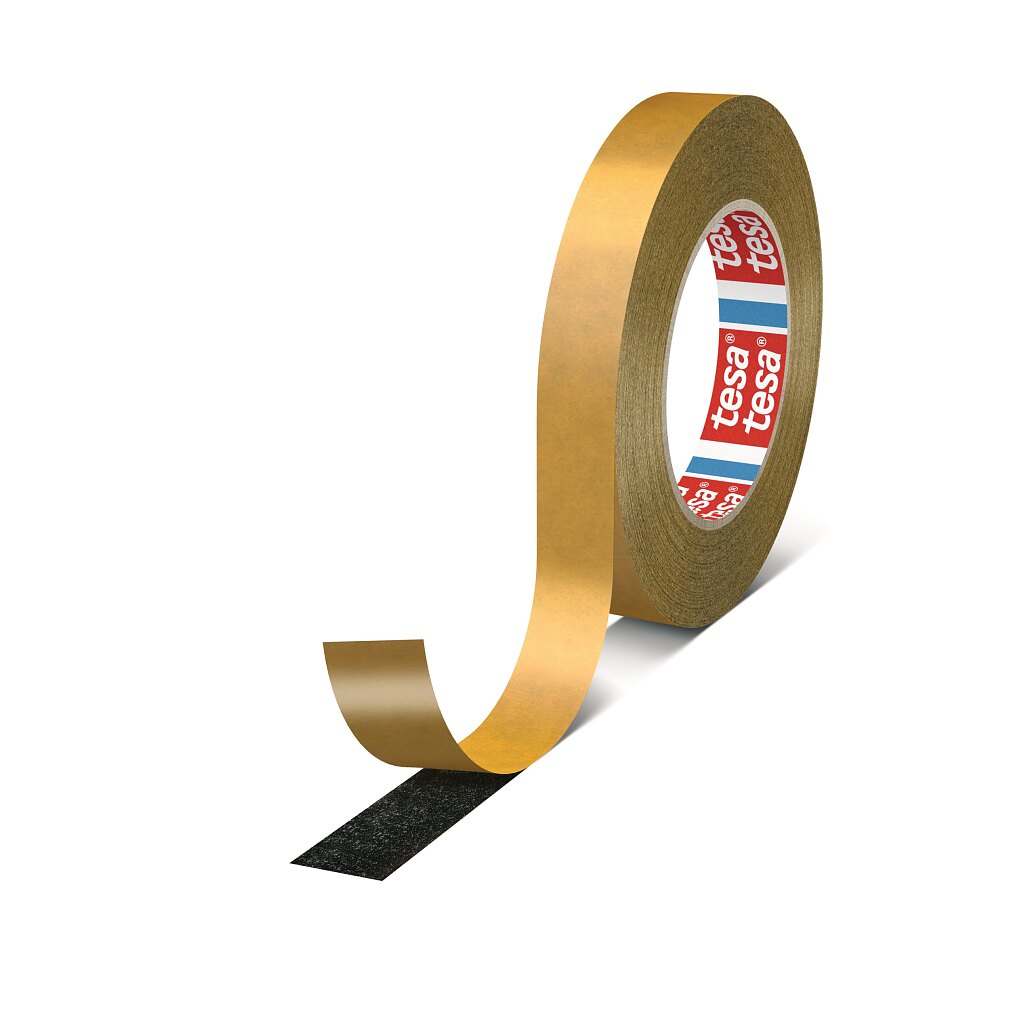

tesa® 51217 PV1

Thick sliding PE-UHMW tape for anti-squeak prevention and abrasion protection

Product description

tesa® 51217 is a thick UV and abrasion resistant high density PE tape with excellent adhesive power. The product is optimised for the automotive industry to protect components, trim parts and harnesses against mechanical damage in combination with noise prevention.

Features:

Transparency and UV resistance assist the application in the visible area
Self-lubricating tape with very good sliding properties reduces wear and friction and prevents noise
High energy absorption capacity even at high stress Levels

Product details and specifications

Application Fields

tesa® 51217 is especially designed for interior and exterior anti-squeak and abrasion protection at the assembly line to ensure a reliable:

Masking of sharp-edged sheet-metal components
Sliding of car roofs, slide doors, delicate components
Prevention of noise and wear, e.g. from trim parts
Protection of harnesses in high friction areas
Application in visible areas e.g. bumper, B-pillar, wheel arch

Backing material	PE
Colour	black
Thickness of liner	71 µm
Total thickness	154 µm
Type of adhesive	pure acrylic
Type of liner	glassine

Backing material	PE
Colour	black
Thickness of liner	71 µm
Total thickness	154 µm
Type of adhesive	pure acrylic
Type of liner	glassine

Elongation at break	350 %
Tensile strength	63 N/cm
Abrasion resistance	very good

Elongation at break	350 %
Tensile strength	63 N/cm
Abrasion resistance	very good

Adhesion to steel	4.3 N/cm

Adhesion to steel	4.3 N/cm

Very good UV resistance: > 1000h WOM Florida test
The product is also available in black under 51217 PV1

The material can be supplied as die cuts in roll or sheets individually to customer specific dimensions under tesa® 54217 transparent or 54217 PV1 black

tesa’s automation and application solution department provides customised equipment and self-designed application tools to enhance productivity.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 51217_en-GB_v12 131.2 kB Product information_tesa® 51217_en-GB 55.6 kB
