tesa® ACX^plus 7284 Multi Purpose (MP)

1100 µm double-sided acrylic foam tape

Product Features

The visco-elastic acrylic foam core of tesa® ACX^plus 7284 MP absorbs and dissipates dynamic and static loads.
Due to this unique formulation, this double-sided acrylic foam tape is able to compensate for thermal elongations of bonded parts.
PFAS/PFOS free product

Product description

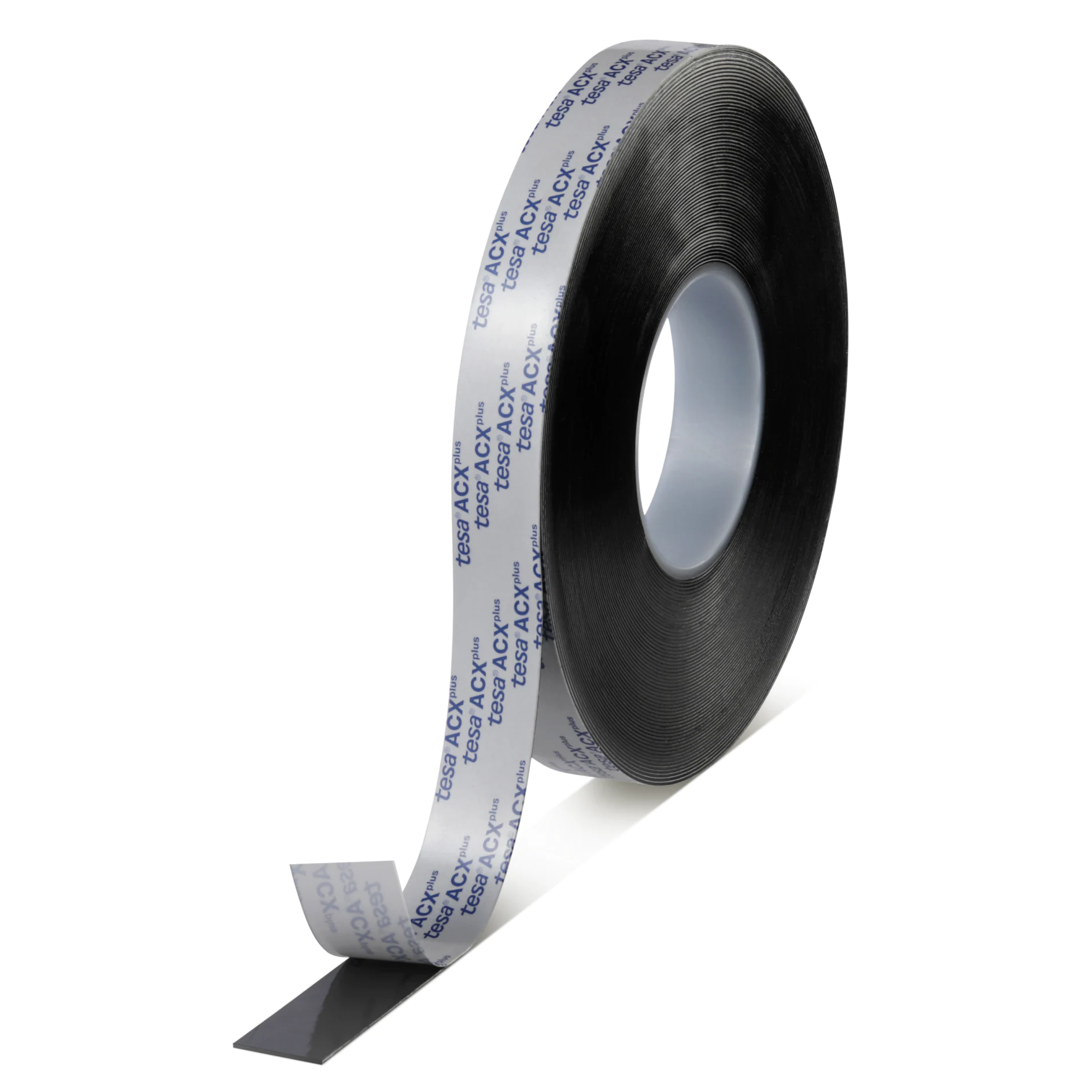

tesa® ACX^plus 7284 MP is a black double-sided acrylic foam tape.

The visco-elastic acrylic foam core of tesa® ACX^plus 7284 MP absorbs and dissipates dynamic and static loads.

Product details and specifications

Product Features

The visco-elastic acrylic foam core of tesa® ACX^plus 7284 MP absorbs and dissipates dynamic and static loads.
Due to this unique formulation, this double-sided acrylic foam tape is able to compensate for thermal elongations of bonded parts.
PFAS/PFOS free product

Application Fields

The tesa® ACX^plus MP product family is suitable for a wide range of multi-purpose bonding applications.
To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) in order to provide the right product recommendation.
tesa® ACX^plus 7284 MP series is especially suitable for bonding applications such as emblem, decorative part or signage mounting.
Additionally, tesa® 7284 perfectly fits for the application on surfaces with low surface energy, e.g. plastics/PE.

Adhesive Type	foamed acrylic blend
Backing material	foamed acrylic
Color	black
Total thickness	1,100 µm

Adhesive Type	foamed acrylic blend
Backing material	foamed acrylic
Color	black
Total thickness	1,100 µm

Temperature resistance short term	200 °C

Temperature resistance short term	200 °C

Adhesion to Aluminium (after 3 days)	29 N/cm
Adhesion to Steel (after 3 days)	29 N/cm

Adhesion to Aluminium (after 3 days)	29 N/cm
Adhesion to Steel (after 3 days)	29 N/cm

Please note that we recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.
Liner versions:
• PV42: White paper liner - branded

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 07284_en 64.4 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® ACXplus 7284 Multi Purpose (MP)	tesa® ACXplus 6812 Black Line	tesa® ACXplus 7255 Multi Purpose (MP)	tesa® ACXplus 7254 Multi Purpose (MP)	tesa® ACXplus 7076	tesa® ACXplus 7054	tesa® ACXplus 7048	tesa® ACXplus 70740	tesa® ACXplus 7074	tesa® ACXplus 7065	tesa® ACXplus 7043	tesa® ACXplus 7042
Total thickness	1,100 µm	1,200 µm	1,000 µm	500 µm	1,500 µm	500 µm	2,000 µm	3,900 µm	1,000 µm	1,200 µm	640 µm	500 µm
Adhesive Type	foamed acrylic blend	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic
Backing material	foamed acrylic	foamed acrylic	solid acrylic	solid acrylic	foamed acrylic	solid acrylic	filled acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	filled acrylic
Color	black	deep black	transparent	transparent	black	transparent		black	black	black
Adhesion to Steel (initial)		20 N/cm	14 N/cm	11 N/cm	18 N/cm			14 N/cm	16 N/cm	30 N/cm	17 N/cm	16 N/cm
Adhesion to Steel (after 14 days)			24 N/cm	19 N/cm	34 N/cm			38 N/cm	33 N/cm	48 N/cm	29 N/cm	24 N/cm
