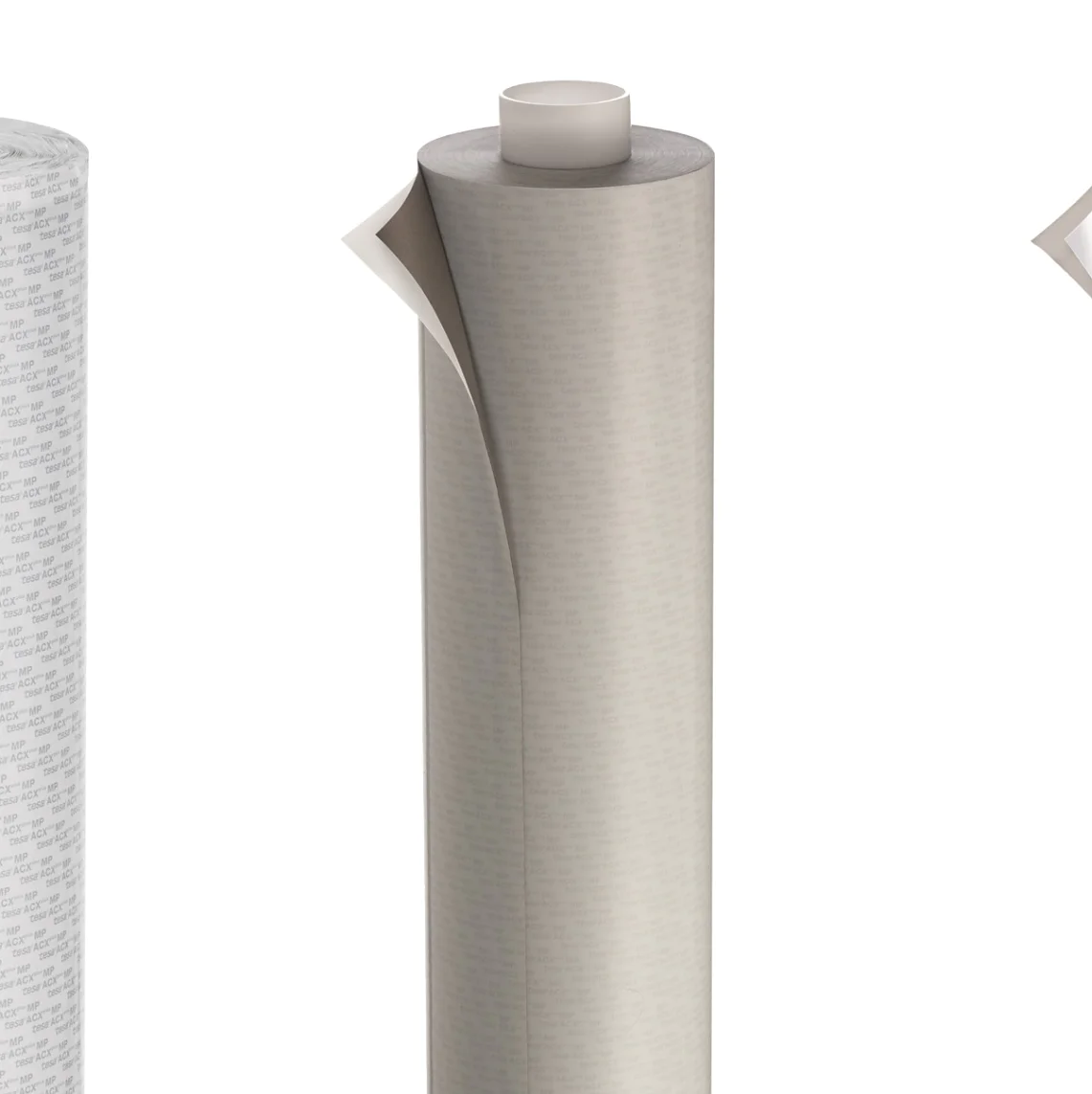

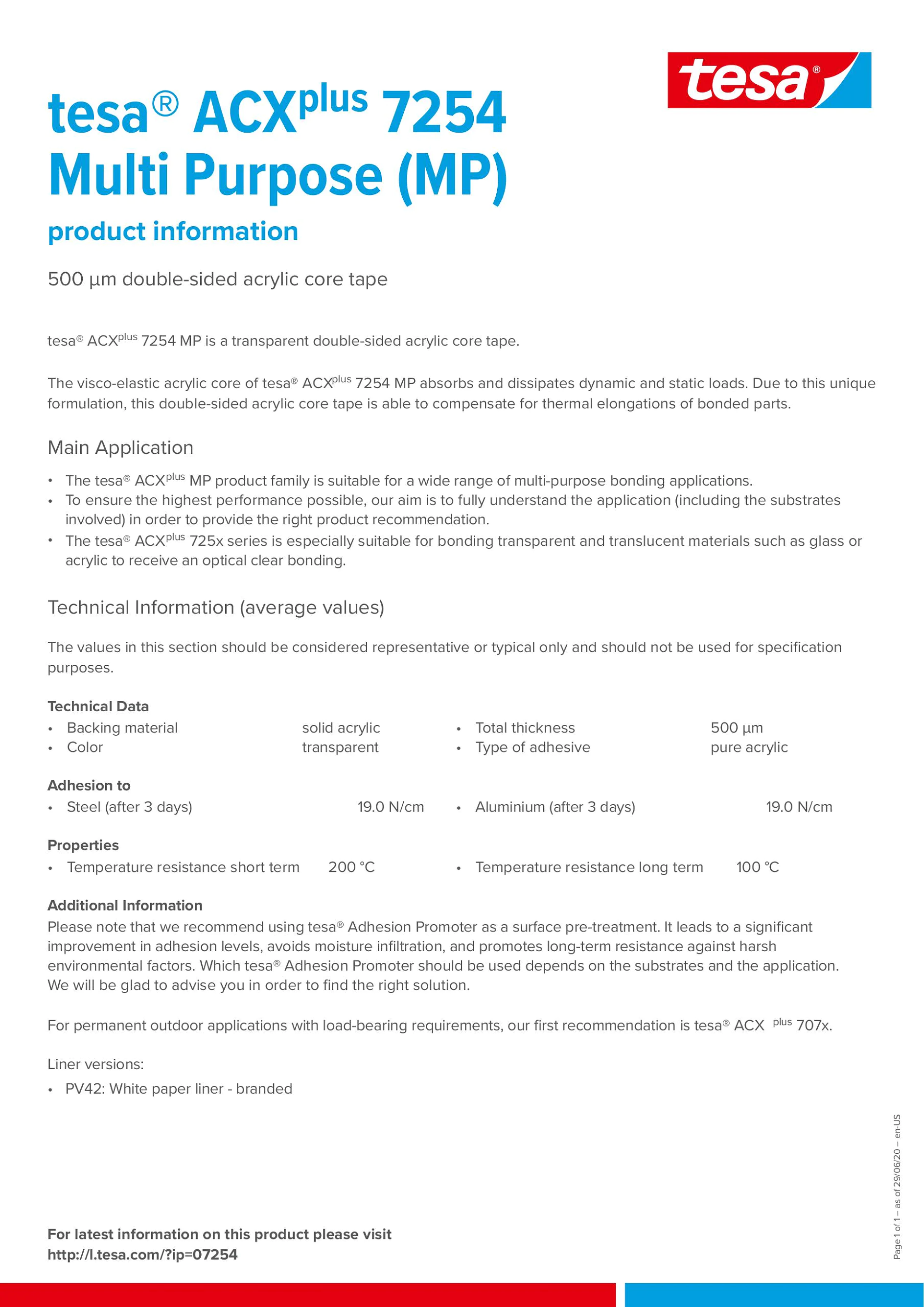

tesa® ACXplus 7254 Multi Purpose (MP)
500 µm double-sided acrylic core tape
- unique formulation
- this double-sided acrylic core tape is able to compensate for thermal elongations of bonded parts
- PFAS/PFOS free product
Product description

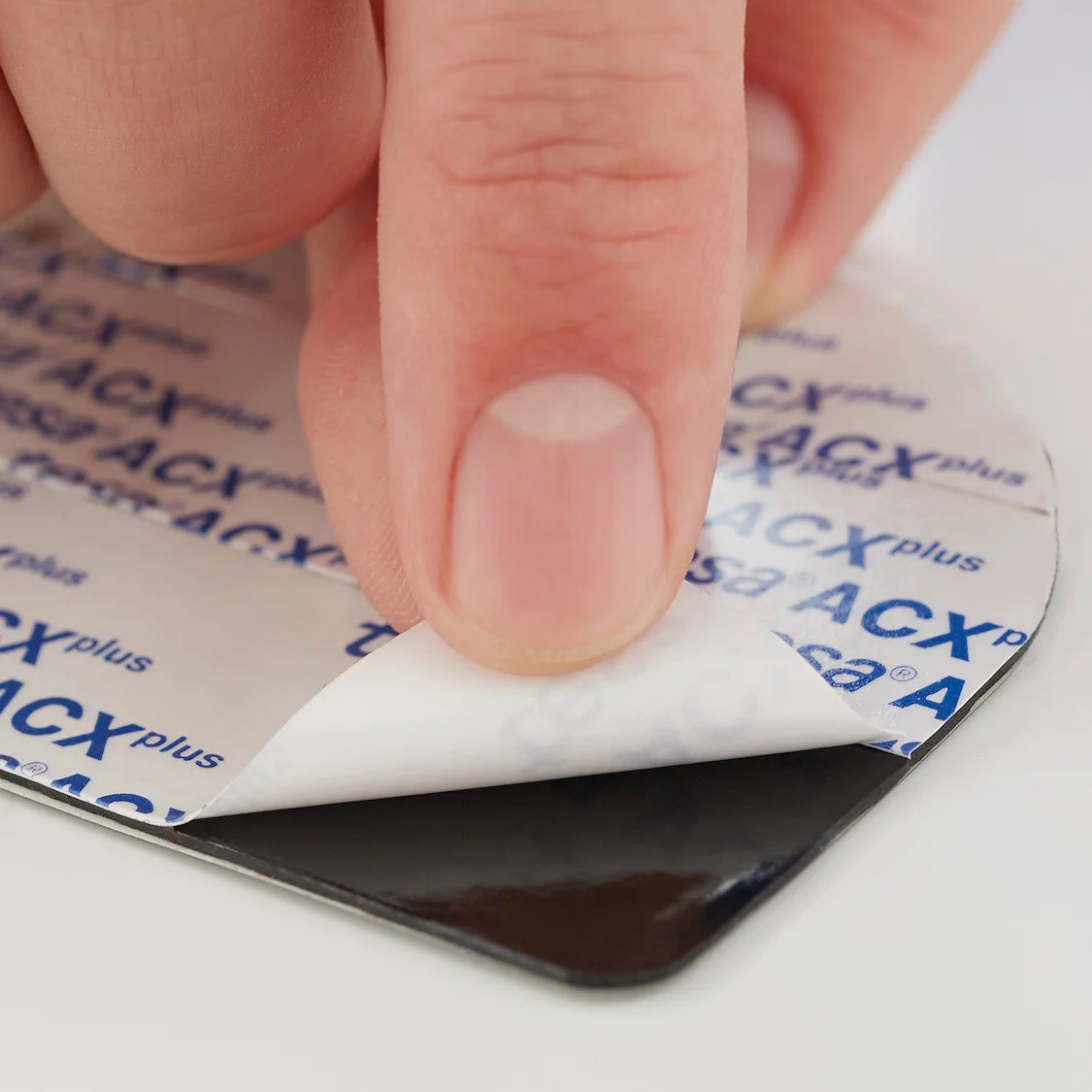

tesa® ACXplus 7254 MP is a transparent double-sided acrylic core tape. The visco-elastic acrylic core of tesa® ACXplus 7254 MP absorbs and dissipates dynamic and static loads.
Application Fields
- The tesa® ACXplus MP product family is suitable for a wide range of multi-purpose bonding applications
- To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) in order to provide the right product recommendation.
- The tesa® ACXplus 725x series is especially suitable for bonding transparent and translucent materials such as glass or acrylic to receive an optical clear bonding.
Product Construction
| Type of adhesive | pure acrylic |
| Total thickness | 500 µm |
| Backing material | solid acrylic |
| Color | transparent |
Properties / Performance Values
| Temperature resistance long term | 100 °C |
| Temperature resistance short term | 200 °C |
Adhesion to Values
| Adhesion to Aluminium (after 3 days) | 19 N/cm |
| Adhesion to Steel (after 3 days) | 19 N/cm |
Additional Info
Please note that we recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.
For permanent outdoor applications with load-bearing requirements, our first recommendation is tesa® ACXplus 707x.
Liner versions:
For permanent outdoor applications with load-bearing requirements, our first recommendation is tesa® ACXplus 707x.
Liner versions:
- PV42: White paper liner - branded
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
