Additional Info
PV 24 = Blue siliconised HDPE filmic liner
PV 25 = White siliconised PE-coated paper liner
PV 25 = White siliconised PE-coated paper liner

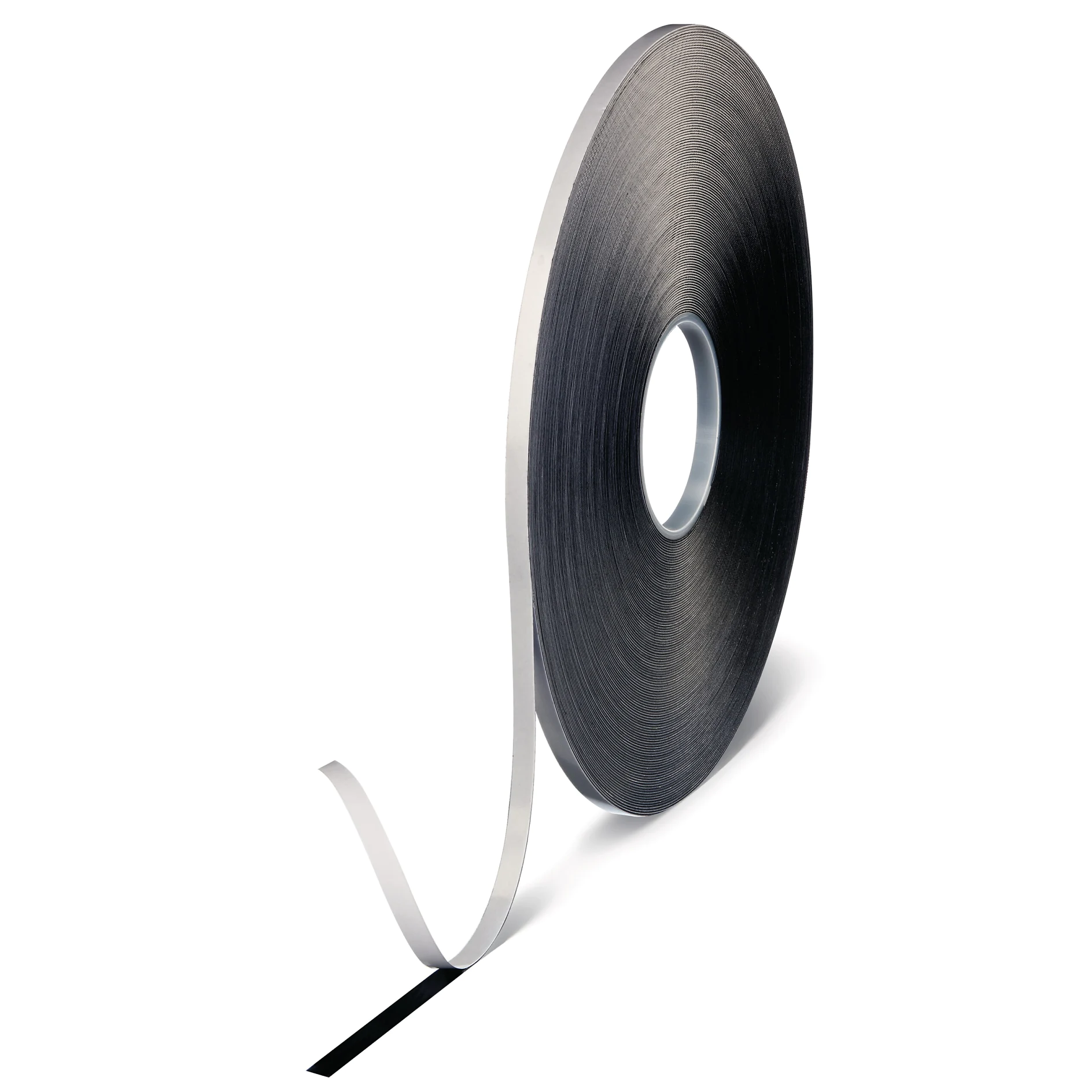

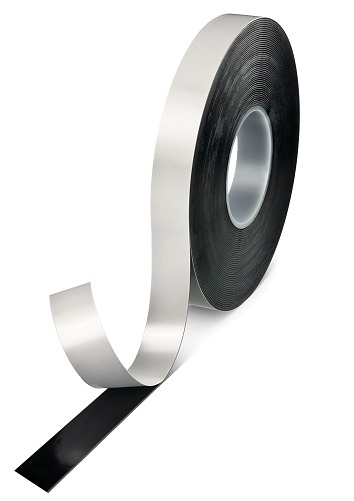

tesa® ACXplus 6808 Black Line
800 µm double-sided acrylic foam tape
Product Features
- Visco-elastic acrylic foam core to compensate for different thermal elongation of bonded parts
- Superior wetting even of rough surfaces to ensure a very high initial and ultimate adhesion
- Deep black colour for enhanced appearance and high design flexibility
Product description
tesa® ACXplus 6808 is a deep black acrylic foam tape for exterior attachment parts.
Product details and specifications
Product Features
- Visco-elastic acrylic foam core to compensate for different thermal elongation of bonded parts
- Superior wetting even of rough surfaces to ensure a very high initial and ultimate adhesion
- Deep black colour for enhanced appearance and high design flexibility
- Closed cell acrylic foam core for reliable sealing to prevent water penetration
- High humidity and UV resistance
- The visco-elastic, medium density acrylic foam core of tesa® ACXplus 6808 optimally absorbs and dissipates dynamic and static loads.
- This exceptional capability enables tesa® ACXplus 6808 to compensate for extreme physical stress as caused by different thermal elongation of bonded parts in rapidly changing temperatures.
Application Fields
Permanent exterior mounting of
- Emblems
- Decorative trims and body side moldings
- Spoilers
- Antennas
- Pillar appliques
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | foamed acrylic |
| Color | deep black |
| Total thickness | 800 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | foamed acrylic |
| Color | deep black |
| Total thickness | 800 µm |
Properties / Performance Values
| Elongation at break | 600 % |
|---|---|
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Properties / Performance Values
| Elongation at break | 600 % |
|---|---|
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Adhesion to Values
| Adhesion to Steel (initial) | 18 N/cm |
|---|---|
| Adhesion to Steel (after 3 days) | 30 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 18 N/cm |
|---|---|
| Adhesion to Steel (after 3 days) | 30 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
