tesa® 88672
100μm double sided black PET tape
Product Features
-
Very good bonding strength
- Easy handling performance in converting processes
- Good resistance to demanding environmental conditions
- Excellent light blocking property in xyz direction
Product description

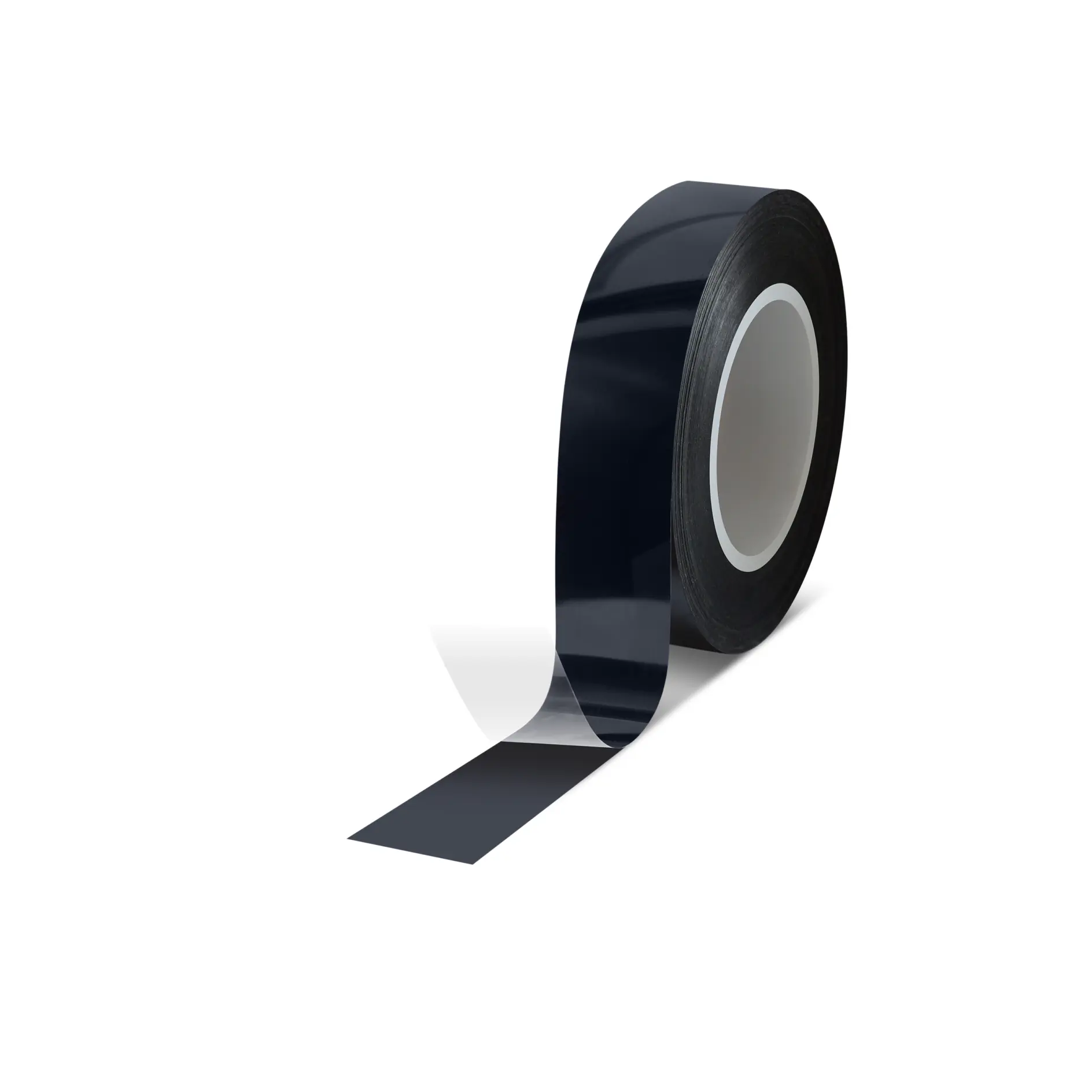

tesa 88672 is a double-sided self-adhesive tape consisting of a black PET film backing and a black tackified acrylic adhesive providing xyz light blocking feature.
Product details and specifications
Product Features
- Very good bonding strength
- Easy handling performance in converting processes
- Good resistance to demanding environmental conditions
- Excellent light blocking property in xyz direction
Application Fields
- Light shielding and light blocking of key components
- Mounting on backlight unit
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PET film |
| Color | black |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 100 µm |
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PET film |
| Color | black |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 100 µm |
Properties / Performance Values
| Elongation at break | 42 % |
|---|---|
| Tensile strength | 120 N/cm |
| Humidity resistance | good |
| Ageing resistance (UV) | good |
Properties / Performance Values
| Elongation at break | 42 % |
|---|---|
| Tensile strength | 120 N/cm |
| Humidity resistance | good |
| Ageing resistance (UV) | good |
Adhesion to Values
| Adhesion to ABS (initial) | 6 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 6.6 N/cm |
| Adhesion to PP (initial) | 5.5 N/cm |
| Adhesion to PP (after 3 days) | 5.7 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 3 days) | 7 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 6 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 6.6 N/cm |
| Adhesion to PP (initial) | 5.5 N/cm |
| Adhesion to PP (after 3 days) | 5.7 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 3 days) | 7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
