Product information

tesa^® 64620

Name: tesa® 64620
Brand: tesa®

Double-sided film tape

Product description

tesa^® 64620 is a double-sided self-adhesive tape, consisting of a white PP-carrier and a synthetic rubber adhesive mass system (hotmelt). With the hotmelt adhesive, tesa^® 64620 is solvent free and offers a high tack.
tesa^® 64620 is protected by a siliconized paper liner.

Main applications

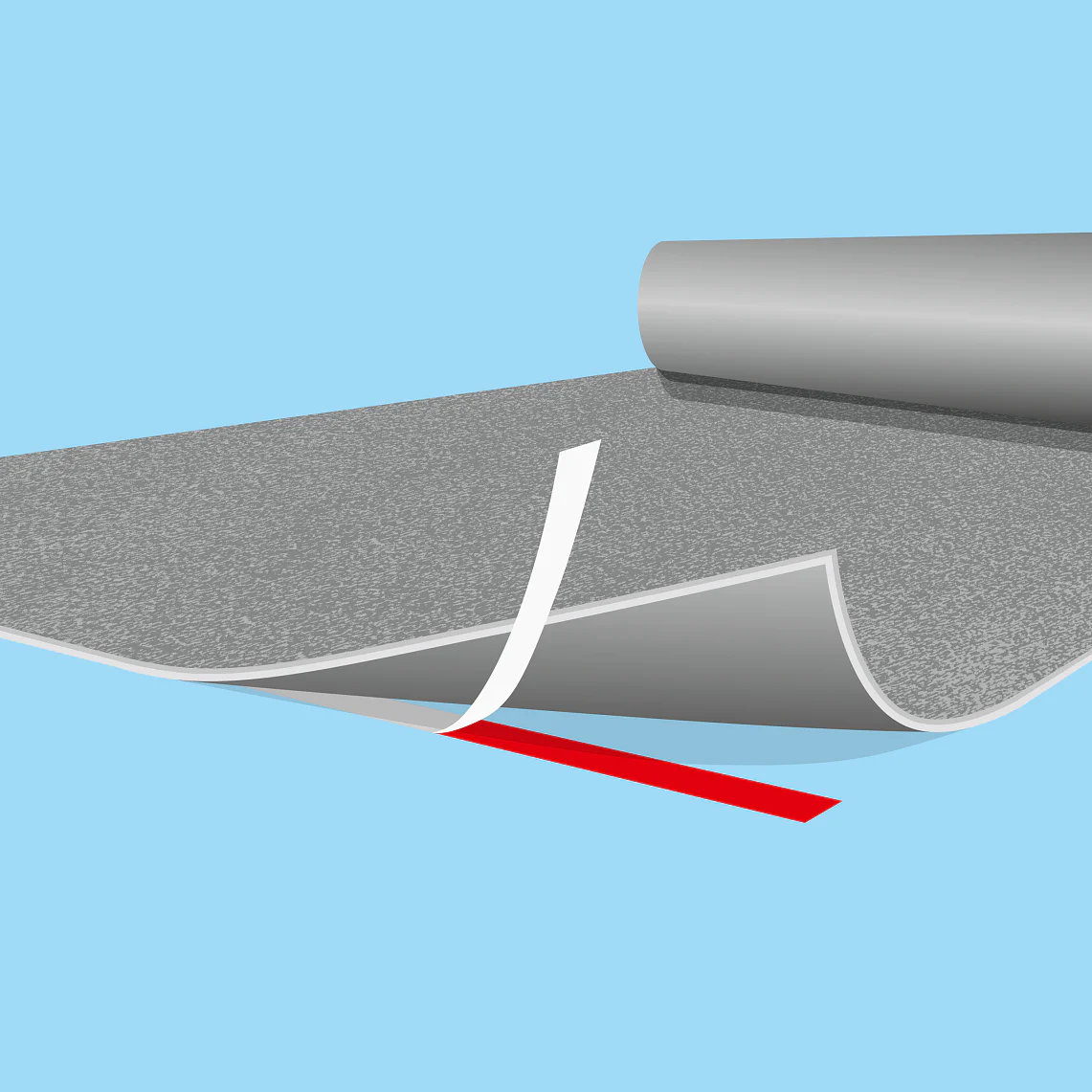

Floor Laying
General purpose fixing tape

tesa-64620-double-sided-film-tape-white-646200000500-pr

tesa_64620_ap_001_fullsize

tesa_64620_ap_008_fullsize

tesa_64620_ap_007_fullsize

tesa_64620_ap_003_fullsize

tesa_64620_ap_002_fullsize

tesa_64620_ap_004_fullsize

tesa_64620_ap_005_fullsize

tesa_64620_ap_006_fullsize

Technical properties

Backing material

PP film

Color

white

Total thickness

185 µm

Type of adhesive

synthetic rubber

Elongation at break

700 %

Tensile strength

30 N/cm

Type of liner

glassine

Colour of liner

brown

Thickness of liner

70 µm

Weight of liner

78 g/m²

Adhesion properties

Adhesion to PE (after 14 days)

8 N/cm

Adhesion to PE (initial)

5.2 N/cm

Adhesion to PP (after 14 days)

12.5 N/cm

Adhesion to PP (initial)

10 N/cm

Adhesion to PVC (after 14 days)

10 N/cm

Adhesion to PVC (initial)

7.5 N/cm

Adhesion to Steel (after 14 days)

14.5 N/cm

Adhesion to Steel (covered side, initial)

10.5 N/cm

Adhesion to Steel (initial)

9.5 N/cm

Rating properties

Temperature resistance short term

80 °C

Temperature resistance long term

40 °C

Tack

Ageing resistance (UV)

Static shear resistance at 23°C

Static shear resistance at 40°C

Static shear resistance at 70°C

Fogging

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
