Additional Info

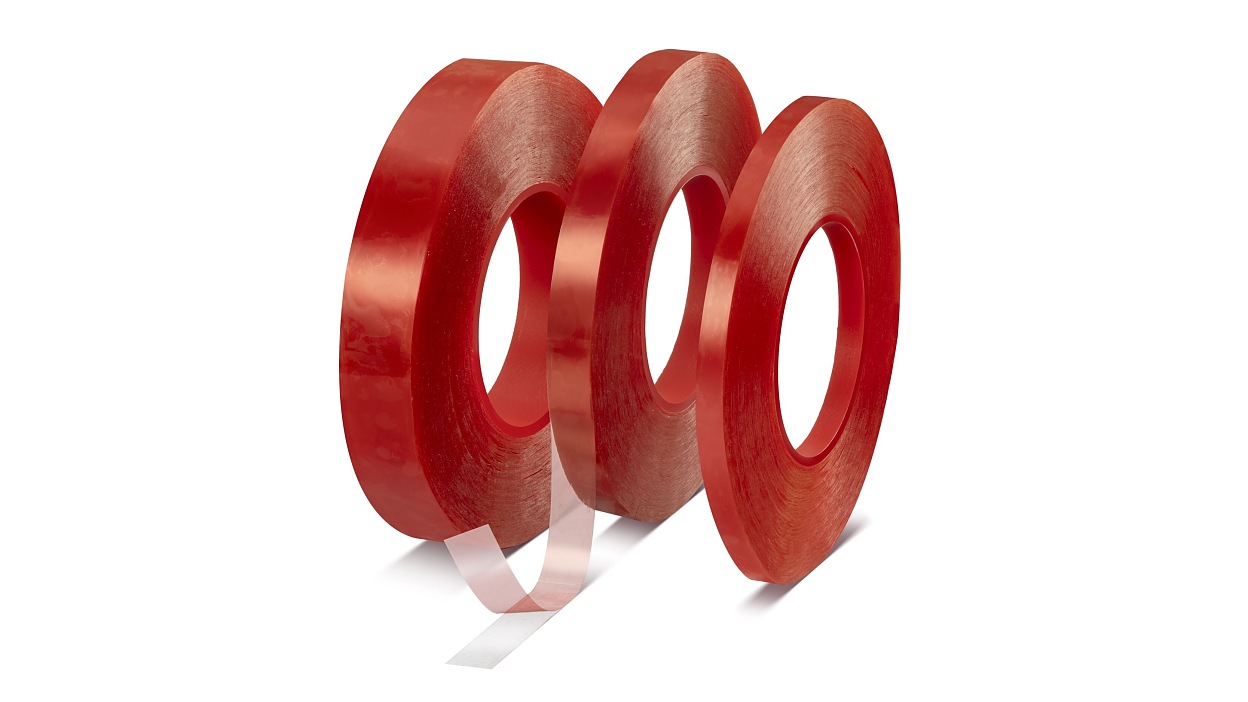

PV0 = red MOPP Liner (80µm)
tesa® flameXtinct 45051
200 µm Flame Retardant Film Tape (Preliminary PI)
Product description
The tesa® flameXtinct product family comprises a variety of high performance adhesive tape solutions for mounting applications. The tesa® flameXtinct assortment, and thus all contained products are clearly defined by following characteristics:
- Flame retardant
- Halogen-free
- High performance adhesives
- Wide product portfolio
tesa® flameXtinct 45051 product is a flame retardant film tape for permanent mounting. The tape comprises of a proprietary flame retardant acrylic adhesive and PET-film backing with excellent flexibility and converting properties. Following features are offered:
- Proven flame retardant characteristics according to UL 94 V-0
- Free of halogens and antimony-trioxide (REACH and ROHS conformity)
- Excellent adhesion characteristics on a variety of surfaces
- High flexibility and converting properties
Product details and specifications
Application Fields
- Building Industry
- Elevators
- Automotive
- Appliance
- Marine
- Trains
Product Construction
| Adhesive Type | FR acrylic |
|---|---|
| Backing material | PET |
| Color | transparent |
| Total thickness | 200 µm |
Product Construction
| Adhesive Type | FR acrylic |
|---|---|
| Backing material | PET |
| Color | transparent |
| Total thickness | 200 µm |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
|---|
Properties / Performance Values
| Static shear resistance at 23°C | very good |
|---|
Adhesion to Values
| Adhesion to Steel (initial) | 9 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 12 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 9 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
