Additional Info
Liner variants:
PV40 white/red logo glassine paper (71µm; 82g/m²)
PV40 white/red logo glassine paper (71µm; 82g/m²)
tesa® 68732
50µm double sided black anti-repulsion filmic tape
Product Features
- Thickness: 50µm
- Excellent repulsion resistance properties
- High bonding strength and shear resistance
Product description
tesa® 68732 is a black double-sided self-adhesive tape consisting of a black PET backing and a special anti-repulsion adhesive.
Product details and specifications
Product Features
- Thickness: 50µm
- Excellent repulsion resistance properties
- High bonding strength and shear resistance
- Very good handling performance in converting processes
- Excellent resistance to demanding environmental conditions
- Black color for easy detection or design purposes
Application Fields
- Bonding on curved surfaces
- Mounting of bended substrates
- Antenna mounting

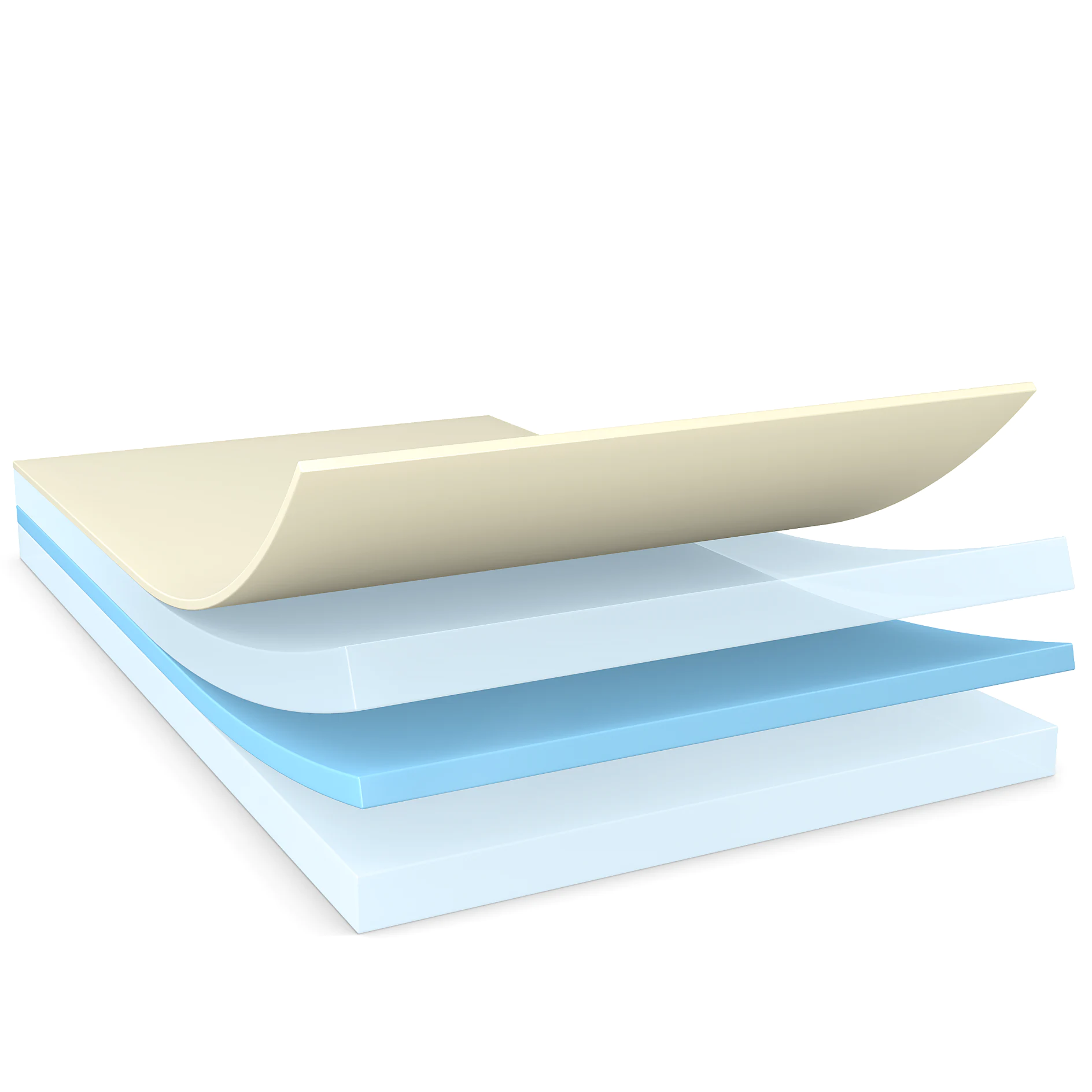

Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | black |
| Total thickness | 50 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | black |
| Total thickness | 50 µm |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
|---|---|
| Tack | medium |
| Temperature resistance long term | 85 °C |
| Temperature resistance short term | 140 °C |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
|---|---|
| Tack | medium |
| Temperature resistance long term | 85 °C |
| Temperature resistance short term | 140 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 4.6 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 7 N/cm |
| Adhesion to PC (initial) | 5.6 N/cm |
| Adhesion to PC (after 14 days) | 7.5 N/cm |
| Adhesion to PE (initial) | 3.1 N/cm |
| Adhesion to PE (after 14 days) | 4.6 N/cm |
| Adhesion to PET (initial) | 5.1 N/cm |
| Adhesion to PET (after 14 days) | 7.3 N/cm |
| Adhesion to PI (initial) | 5.4 N/cm |
| Adhesion to PI (after 14 days) | 7.7 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 7 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 4.6 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 7 N/cm |
| Adhesion to PC (initial) | 5.6 N/cm |
| Adhesion to PC (after 14 days) | 7.5 N/cm |
| Adhesion to PE (initial) | 3.1 N/cm |
| Adhesion to PE (after 14 days) | 4.6 N/cm |
| Adhesion to PET (initial) | 5.1 N/cm |
| Adhesion to PET (after 14 days) | 7.3 N/cm |
| Adhesion to PI (initial) | 5.4 N/cm |
| Adhesion to PI (after 14 days) | 7.7 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
