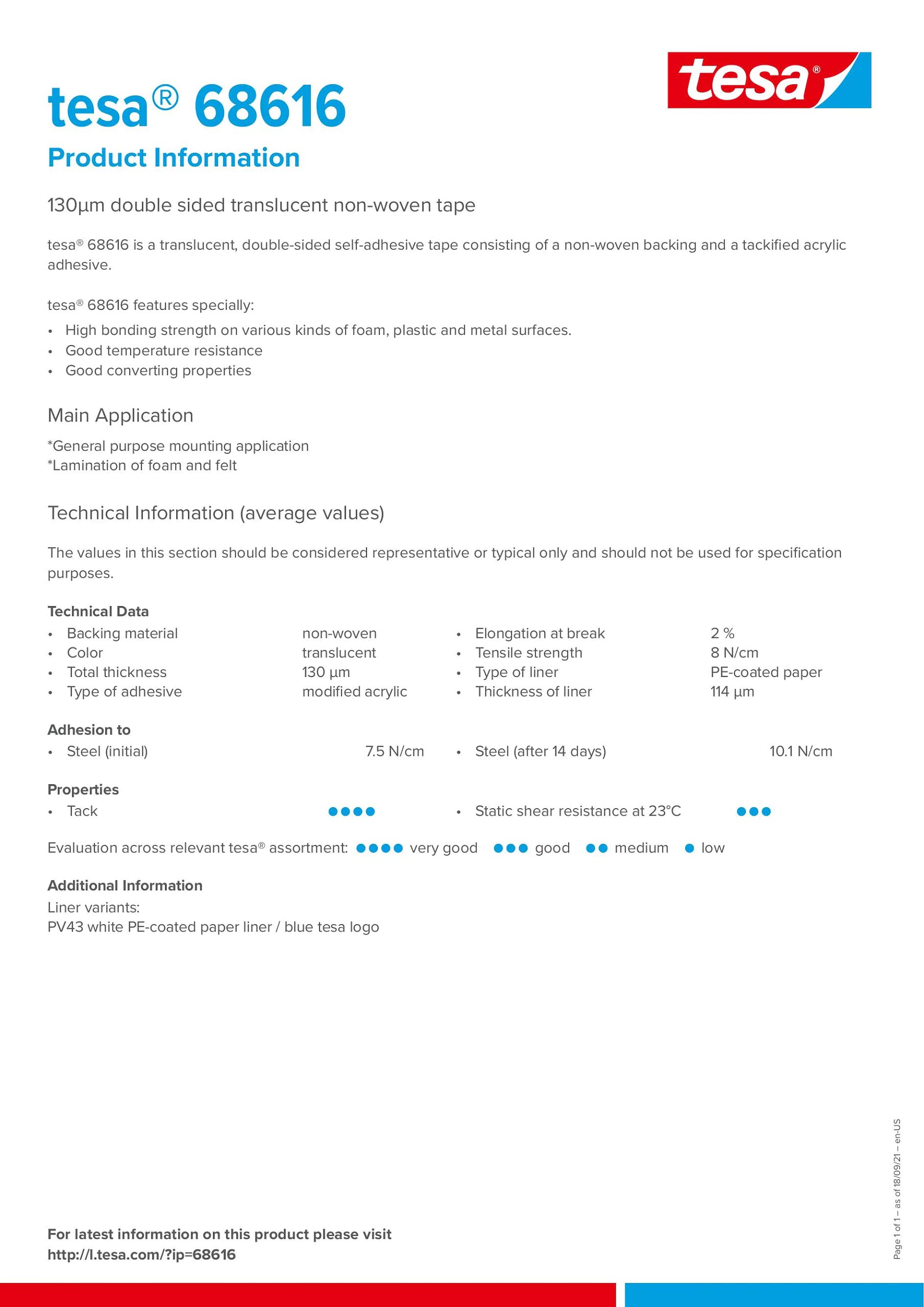

tesa® 68616
130µm double sided translucent non-woven tape
Product Features- High bonding strength on various kinds of foam, plastic and metal surfaces.
- Good temperature resistance
- Good converting properties
Product description
tesa® 68616 is a translucent, double-sided self-adhesive tape consisting of a non-woven backing and a tackified acrylic adhesive.
Product Features
- High bonding strength on various kinds of foam, plastic and metal surfaces.
- Good temperature resistance
- Good converting properties
Application Fields
1 General purpose mounting application
1 Lamination of foam and felt
Product Construction
| Type of adhesive | modified acrylic |
| Type of liner | PE-coated paper |
| Total thickness | 130 µm |
| Thickness of liner | 114 µm |
| Backing material | non-woven |
| Color | translucent |
Properties / Performance Values
| Elongation at break | 2 % |
| Static shear resistance at 23°C | good |
| Tack | very good |
| Tensile strength | 8 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 7.5 N/cm |
| Adhesion to Steel (after 14 days) | 10.1 N/cm |
Additional Info
Liner variants:
PV43 white PE-coated paper liner / blue tesa logo
PV43 white PE-coated paper liner / blue tesa logo
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
