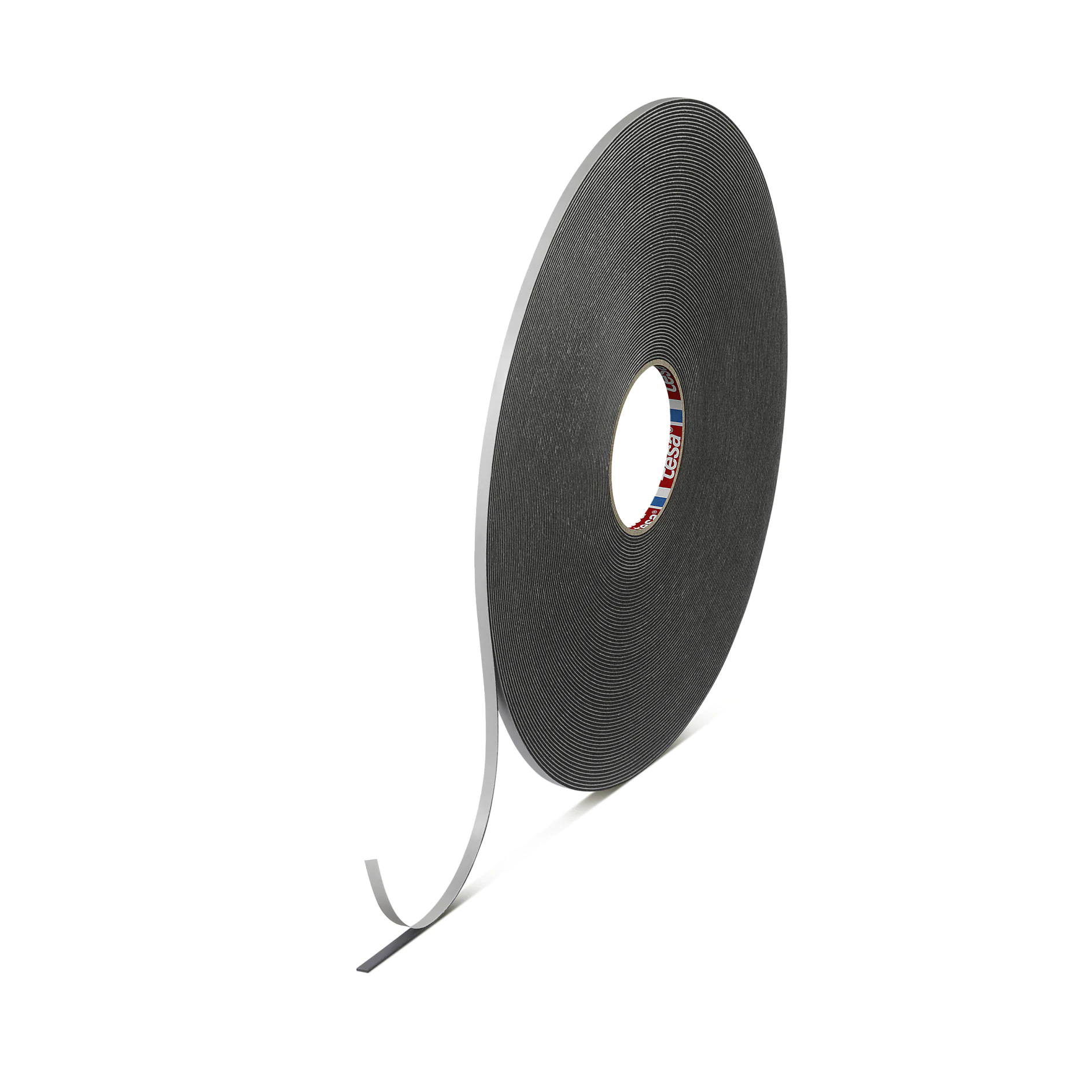

tesa® 6703 New Bond
1100µm double-sided acrylic foam tape
Product Features
- Good bonding on various substrates
- Good temperature resistance and aging performance
- Cost-effective as entry level standard product
Product description
tesa® 6703 is a double-sided acrylic foam tape in gray color, the AC foam works both as backing and adhesive.
Product details and specifications
Product Features
- Good bonding on various substrates
- Good temperature resistance and aging performance
- Cost-effective as entry level standard product
Application Fields
Example mounting applications include but are not limited to:
- Decorative glass panel mounting
- Plastic panel mounting
- Nameplate and parts mounting
- TV back panel mounting
Product Construction
Adhesive Type | pure acrylic |
---|---|
Backing material | foamed acrylic |
Color | gray |
Liner Type | PE-coated paper |
Total thickness | 1100 µm |
Product Construction
Adhesive Type | pure acrylic |
---|---|
Backing material | foamed acrylic |
Color | gray |
Liner Type | PE-coated paper |
Total thickness | 1100 µm |
Properties / Performance Values
Static shear resistance at 40°C | very good |
---|---|
Static shear resistance at 70°C | very good |
Static shear resistance at 23°C | very good |
Temperature resistance short term | 200 °C |
Temperature resistance long term | 100 °C |
Humidity resistance | very good |
Properties / Performance Values
Static shear resistance at 40°C | very good |
---|---|
Static shear resistance at 70°C | very good |
Static shear resistance at 23°C | very good |
Temperature resistance short term | 200 °C |
Temperature resistance long term | 100 °C |
Humidity resistance | very good |
Adhesion to Values
Adhesion to ABS (initial) | 11 N/cm |
---|---|
Adhesion to ABS (after 3 days) | 14 N/cm |
Adhesion to Aluminium (initial) | 20 N/cm |
Adhesion to Aluminium (after 3 days) | 30 N/cm |
Adhesion to Glass (initial) | 20 N/cm |
Adhesion to Glass (after 3 days) | 25 N/cm |
Adhesion to PC (initial) | 15 N/cm |
Adhesion to PC (after 3 days) | 18 N/cm |
Adhesion to Steel (initial) | 18 N/cm |
Adhesion to Steel (after 3 days) | 28 N/cm |
Adhesion to Values
Adhesion to ABS (initial) | 11 N/cm |
---|---|
Adhesion to ABS (after 3 days) | 14 N/cm |
Adhesion to Aluminium (initial) | 20 N/cm |
Adhesion to Aluminium (after 3 days) | 30 N/cm |
Adhesion to Glass (initial) | 20 N/cm |
Adhesion to Glass (after 3 days) | 25 N/cm |
Adhesion to PC (initial) | 15 N/cm |
Adhesion to PC (after 3 days) | 18 N/cm |
Adhesion to Steel (initial) | 18 N/cm |
Adhesion to Steel (after 3 days) | 28 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
