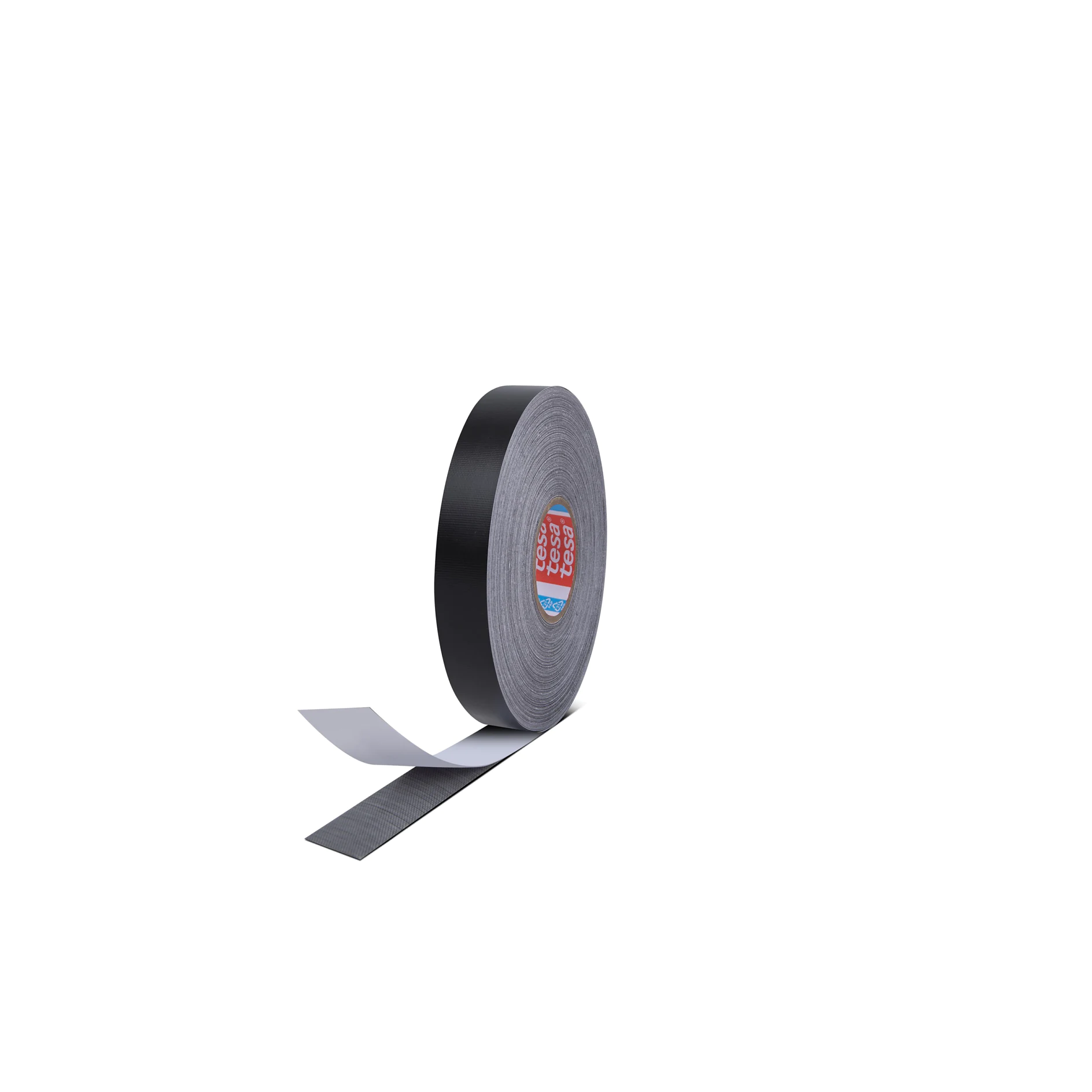

tesa® 67003 PV0

Fire resistant electrical insulation s/s tape for EV battery


Product Features
  • Very soft and flexible
  • Excellent cable & busbar compatibility
  • Wide working temperature range
All product features
Product description

tesa® 67003 is multilayer fire protection tape with acrylic adhesive primarily targeted to be used in the battery pack to keep
electrical insulation property when thermal runaway happens.


Product details and specifications

Product Features

  • Very soft and flexible
  • Excellent cable & busbar compatibility
  • Wide working temperature range
  • Excellent high temperature insulation performance
  • Superior fireproof performance

Application Fields

Offer fire resistant single sided tape which provides a high temperature protection property in electrical system.
Adhesive Type acrylic
Backing material fibreglass
Tensile strength 120 N/cm
Temperature resistance min. -40 °C
Dielectric breakdown voltage 40,000 V
Adhesion to Steel 3.4 N/cm
  • Standard Cut roll widths: 20, 60 mm
  • Standard lengths: 25 m
  • Standard log roll widths: 1000 mm
  • Standard lengths: 75 m
  • Further dimensions available upon request
  • Cloth tape is suggested to cover on top of tesa 67003 to avoid the flagging.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 67003 PV0 tesa® Spiralsleeve 51036 PV5 tesa® 61036 tesa® 51036 PV78 Supersleeve tesa® 51036 PV0 tesa® Supersleeve 51036 PV6 A tesa® 51035 tesa® 51036 PV01 tesa® Sleeve 51036 PV9 A tesa® 51638 PV0VN tesa® Supersleeve 51026 PV6
Adhesive Type
acrylic
advanced acrylic
water-based acrylic
advanced acrylic
advanced acrylic
advanced acrylic
acrylic
acrylic
acrylic
Backing material
fibreglass
PET cloth
PET fleece
PET cloth
PET cloth
PET cloth
PET cloth
PET fleece
PET cloth
Adhesion to Steel
3.4 N/cm
3 N/cm
5 N/cm
3 N/cm
5 N/cm
4 N/cm
5 N/cm
5 N/cm
2.3 N/cm
5.5 N/cm
Temperature resistance min.
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
Total thickness
530 µm
455 µm
260 µm
530 µm
240 µm
260 µm
220 µm
260 µm
530 µm
Temperature resistance max.
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
105 °C
150 °C
