Additional Info
Liner variants:
PV01 White paper with blue logo, d/s release coating (150µm)
PV01 White paper with blue logo, d/s release coating (150µm)
400µm double-sided acrylic foam tape
tesa® 6700 is double-sided acrylic foam tape in grey color, the AC foam works both as backing and adhesive
| Adhesive Type | pure acrylic |
|---|---|
| Backing material | foamed acrylic |
| Color | gray |
| Liner Type | PE-coated paper |
| Total thickness | 400 µm |
| Adhesive Type | pure acrylic |
|---|---|
| Backing material | foamed acrylic |
| Color | gray |
| Liner Type | PE-coated paper |
| Total thickness | 400 µm |
| Elongation at break | 890 % |
|---|---|
| Tensile strength | 2.6 N/cm |
| Temperature resistance long term | 100 °C |
| Static shear resistance at 70°C | good |
| Elongation at break | 890 % |
|---|---|
| Tensile strength | 2.6 N/cm |
| Temperature resistance long term | 100 °C |
| Static shear resistance at 70°C | good |
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 12 N/cm |
| Adhesion to Aluminium (initial) | 14 N/cm |
| Adhesion to Aluminium (after 3 days) | 25 N/cm |
| Adhesion to Glass (initial) | 14 N/cm |
| Adhesion to Glass (after 3 days) | 18 N/cm |
| Adhesion to PC (initial) | 12 N/cm |
| Adhesion to PC (after 3 days) | 15 N/cm |
| Adhesion to Steel (initial) | 14 N/cm |
| Adhesion to Steel (after 3 days) | 21 N/cm |
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 12 N/cm |
| Adhesion to Aluminium (initial) | 14 N/cm |
| Adhesion to Aluminium (after 3 days) | 25 N/cm |
| Adhesion to Glass (initial) | 14 N/cm |
| Adhesion to Glass (after 3 days) | 18 N/cm |
| Adhesion to PC (initial) | 12 N/cm |
| Adhesion to PC (after 3 days) | 15 N/cm |
| Adhesion to Steel (initial) | 14 N/cm |
| Adhesion to Steel (after 3 days) | 21 N/cm |

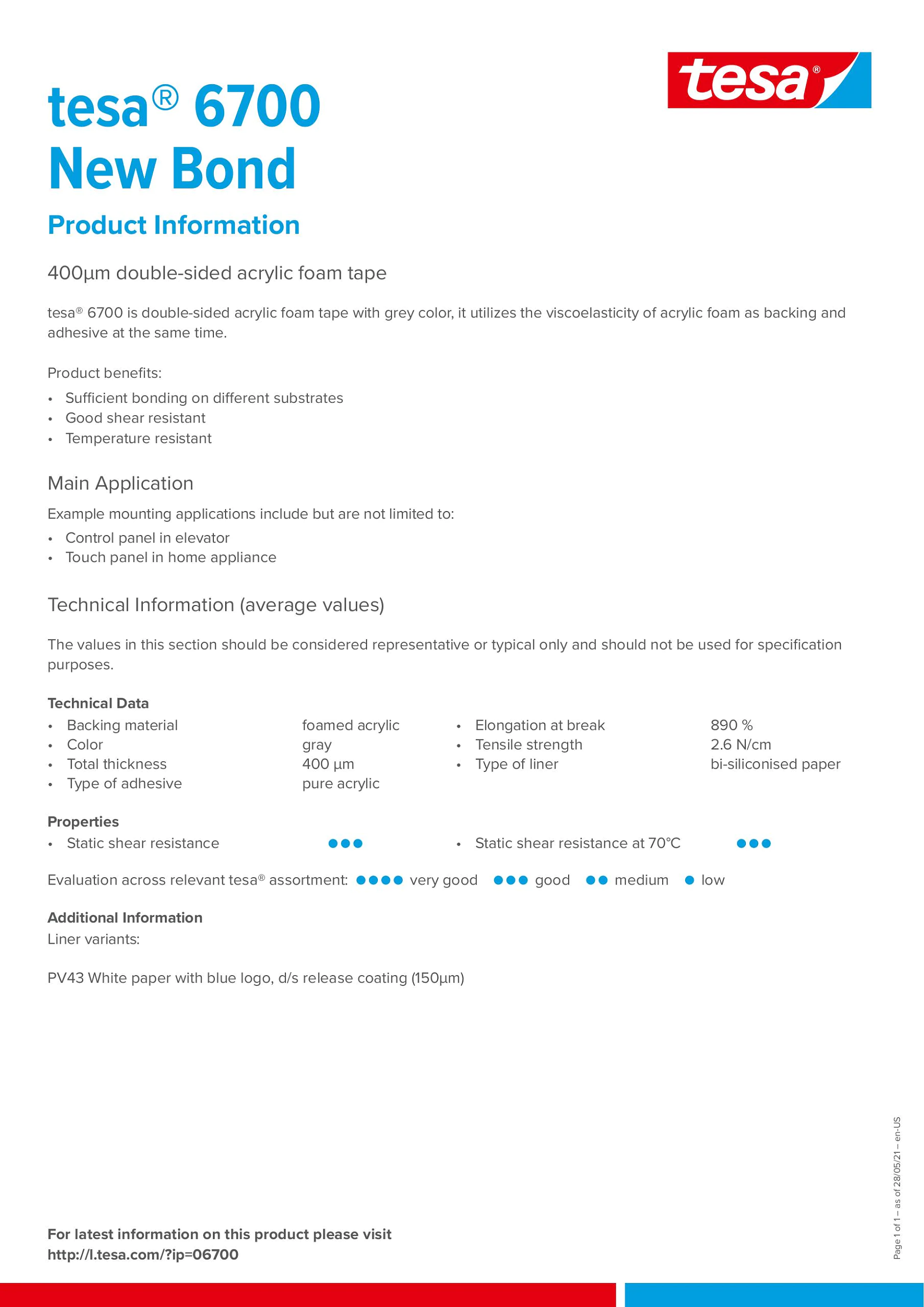

Download the files below for more technical details and information on this product.
