tesa® 66530
tesa® 66530 40μm single sided high temperature resistant removable PI tape
Product description

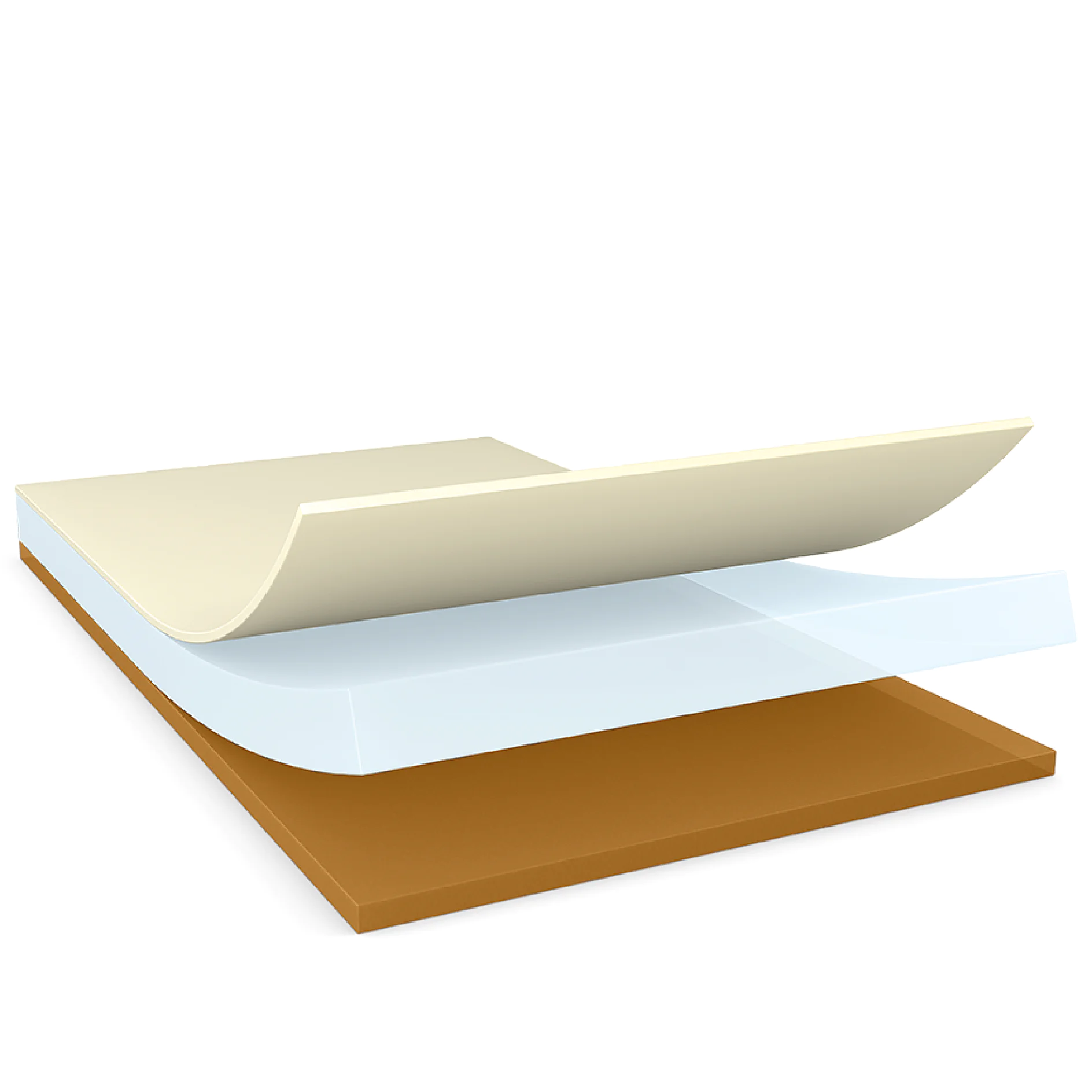

tesa® 66530 is a single-sided self-adhesive tape consisting of an amber PI film with special high temperature resistant removable acrylic adhesive.
Special features:
- Excellent removability on various substrates after high temperature processing
- Temperature resistance up to 260˚C
- Excellent resistance to demanding environmental conditions
- Very good handling performance in converting processes
Product details and specifications
Application Fields
- Removable mounting
- Temporary fixation under high temperature & high humidity processing and operating environments
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | Polyimide |
| Color | amber |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 40 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | Polyimide |
| Color | amber |
| Color of liner | transparent |
| Liner Type | PET film |
| Total thickness | 40 µm |
Adhesion to Values
| Adhesion to Glass (initial) | 0.27 N/cm |
|---|---|
| Adhesion to Glass (after 14 days) | 0.36 N/cm |
| Adhesion to Steel (initial) | 0.24 N/cm |
| Adhesion to Steel (after 14 days) | 0.42 N/cm |
Adhesion to Values
| Adhesion to Glass (initial) | 0.27 N/cm |
|---|---|
| Adhesion to Glass (after 14 days) | 0.36 N/cm |
| Adhesion to Steel (initial) | 0.24 N/cm |
| Adhesion to Steel (after 14 days) | 0.42 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
