Additional Info
Liner variants:
- PV06 red MOPP film (80µm)

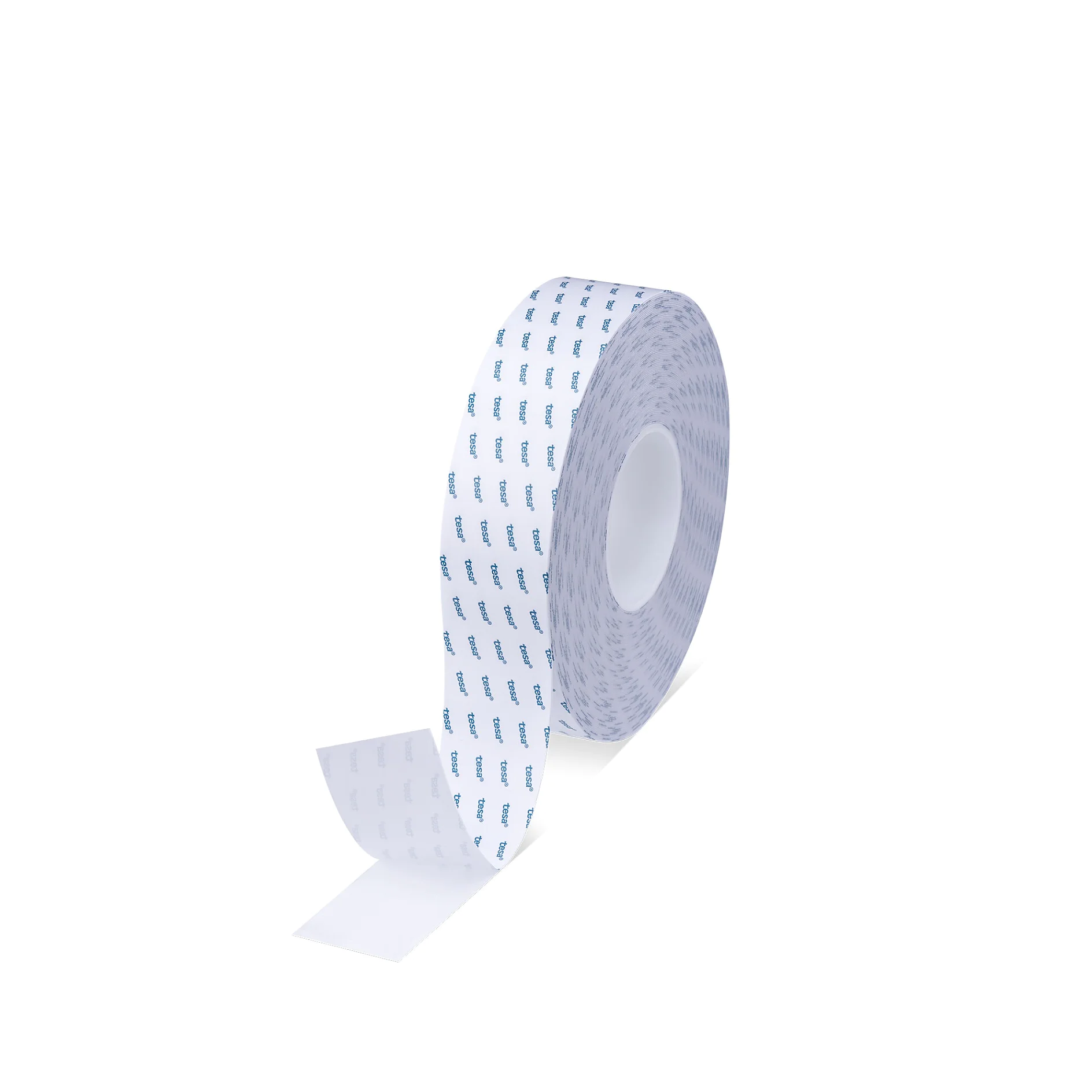

tesa® 64956
800µm double sided PE foam tape
Product Features
- Thickness: 800µm
- Excellent immediate bonding strength
- High bonding strength even on low surface energy substrates
Product description
tesa® 64956 is a double sided PE foam tape. The tape is equipped with a synthetic rubber adhesive.
Product details and specifications
Product Features
- Thickness: 800µm
- Excellent immediate bonding strength
- High bonding strength even on low surface energy substrates
- Highly conformable foam backing provides high bonding strength on rough or uneven surfaces
- Multi-purpose tape suitable for hand or automatic application
Application Fields
- Bonding of trims and profiles (plastic extrusions)
- Mounting of shelf edge labelling systems
- Fixing of cable channels
- Construction of POS-displays
- Mounting of indoor signs
- Assembly aid, pre-fixation
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | PE foam |
| Color | black/white |
| Color of liner | yellow |
| Liner Type | glassine |
| Thickness of liner | 70 µm |
| Total thickness | 800 µm |
Product Construction
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | PE foam |
| Color | black/white |
| Color of liner | yellow |
| Liner Type | glassine |
| Thickness of liner | 70 µm |
| Total thickness | 800 µm |
Properties / Performance Values
| Elongation at break | 180 % |
|---|---|
| Tensile strength | 8 N/cm |
| Ageing resistance (UV) | medium |
| Humidity resistance | good |
| Temperature resistance short term | 60 °C |
| Static shear resistance at 40°C | medium |
| Tack | good |
| Chemical Resistance | medium |
| Softener resistance | medium |
| Temperature resistance long term | 40 °C |
Properties / Performance Values
| Elongation at break | 180 % |
|---|---|
| Tensile strength | 8 N/cm |
| Ageing resistance (UV) | medium |
| Humidity resistance | good |
| Temperature resistance short term | 60 °C |
| Static shear resistance at 40°C | medium |
| Tack | good |
| Chemical Resistance | medium |
| Softener resistance | medium |
| Temperature resistance long term | 40 °C |
Adhesion to Values
| Adhesion to PC (initial) | 15 N/cm |
|---|---|
| Adhesion to PC (after 14 days) | 15 N/cm |
| Adhesion to PE (initial) | 12 N/cm |
| Adhesion to PE (after 14 days) | 12 N/cm |
| Adhesion to PET (initial) | 15 N/cm |
| Adhesion to PET (after 14 days) | 15 N/cm |
| Adhesion to PP (initial) | 15 N/cm |
| Adhesion to PP (after 14 days) | 15 N/cm |
| Adhesion to PVC (initial) | 15 N/cm |
| Adhesion to PVC (after 14 days) | 15 N/cm |
| Adhesion to Steel (initial) | 15 N/cm |
| Adhesion to Steel (after 14 days) | 15 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 15 N/cm |
|---|---|
| Adhesion to PC (after 14 days) | 15 N/cm |
| Adhesion to PE (initial) | 12 N/cm |
| Adhesion to PE (after 14 days) | 12 N/cm |
| Adhesion to PET (initial) | 15 N/cm |
| Adhesion to PET (after 14 days) | 15 N/cm |
| Adhesion to PP (initial) | 15 N/cm |
| Adhesion to PP (after 14 days) | 15 N/cm |
| Adhesion to PVC (initial) | 15 N/cm |
| Adhesion to PVC (after 14 days) | 15 N/cm |
| Adhesion to Steel (initial) | 15 N/cm |
| Adhesion to Steel (after 14 days) | 15 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
