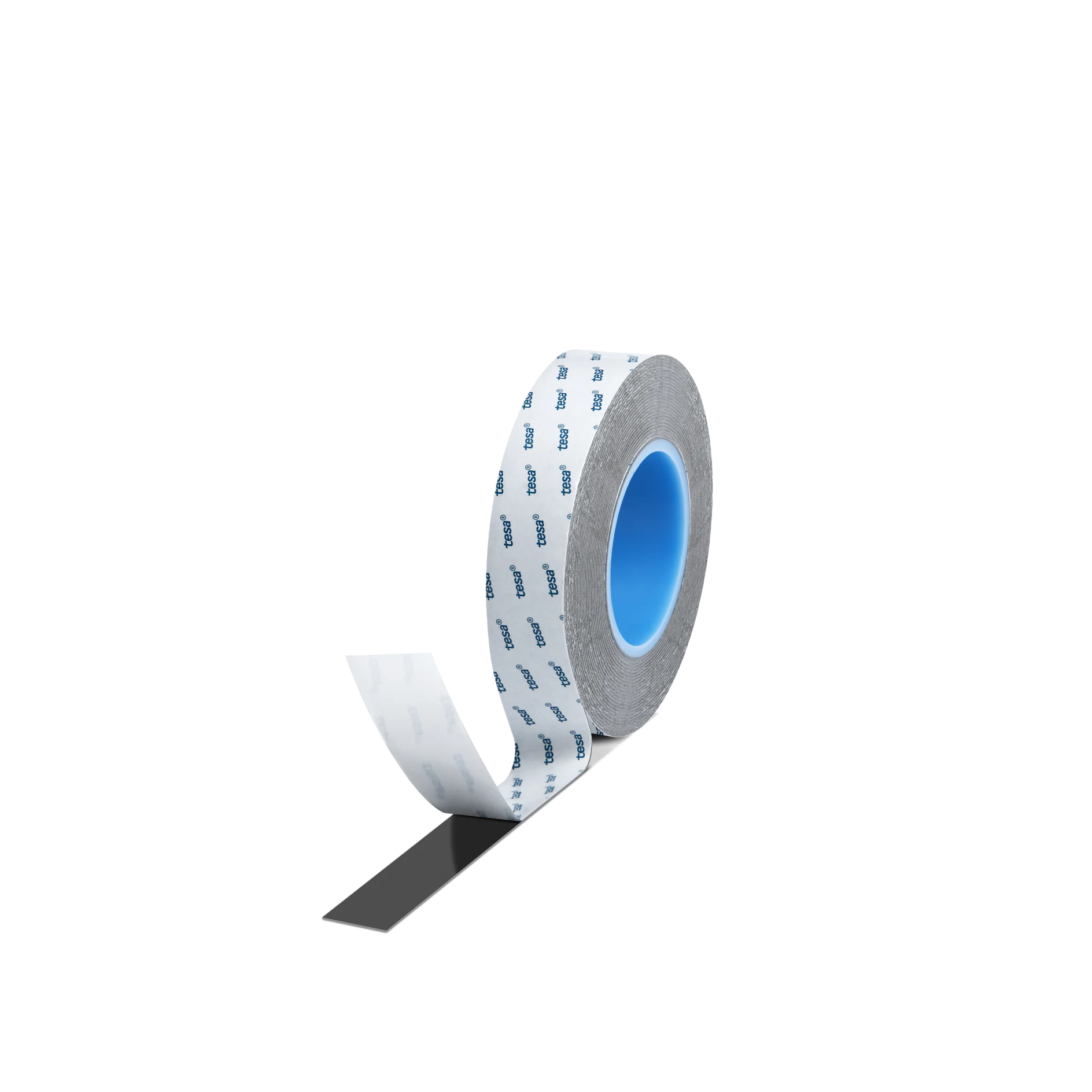

tesa® 6411
1100µm black double-sided acrylic foam tape
Product Features
- • Excellent bonding performance with LSE substrates • No primer required • High initial bonding at various substrate • Excellent water proof • Soft and comfortable leading to good repulsion resistance • Suitable for low temperature operation LSE: low surface energy
Product description
tesa® 6411 is a double-sided acrylic foam tape in black color, it is a triple-layer symmetrically designed product, coated on both sides with high performance LSE adhesive. It can help eliminate the primer in the process. Its high-performance LSE adhesive creates an excellent tack and initial bonding leading to an efficient and secure bond to parts without primer.
In addition, tesa® 6411 provide a very high level of water proof and its soft and comfortable foam backing also provide excellent repulsion resistance when applying to curve edges. Moreover, tesa® 6411 has the ability to absorb and dissipate dynamic and static loads because of its viscoelastic acrylic foam core.
Product details and specifications
Product Features
- • Excellent bonding performance with LSE substrates • No primer required • High initial bonding at various substrate • Excellent water proof • Soft and comfortable leading to good repulsion resistance • Suitable for low temperature operation LSE: low surface energy
Application Fields
tesa® 6411 is suitable for a wide range of permanent mounting applications. To ensure the highest performance, we need to fully understand application (including the substrates involved) in order to provide the right product recommendation.
Example mounting applications include but not limited to:
• Decorative glass panel mounting
• Plastic panel mounting
• Nameplate and parts mounting
• Painted/powder coated components mounting
• Household products such as hook, deco elements
Example mounting applications include but not limited to:
• Decorative glass panel mounting
• Plastic panel mounting
• Nameplate and parts mounting
• Painted/powder coated components mounting
• Household products such as hook, deco elements
Product Construction
| Adhesive Type | LSE |
|---|---|
| Backing material | Acrylic foam |
| Color | black |
| Liner Type | PE-coated paper |
| Total thickness | 1,100 µm |
Product Construction
| Adhesive Type | LSE |
|---|---|
| Backing material | Acrylic foam |
| Color | black |
| Liner Type | PE-coated paper |
| Total thickness | 1,100 µm |
Properties / Performance Values
| Static shear resistance at 40°C | good |
|---|---|
| Chemical Resistance | good |
| Temperature resistance short term | 120 °C |
| Static shear resistance at 70°C | good |
| Temperature resistance long term | 80 °C |
| Tack | very good |
| Static shear resistance at 23°C | good |
Properties / Performance Values
| Static shear resistance at 40°C | good |
|---|---|
| Chemical Resistance | good |
| Temperature resistance short term | 120 °C |
| Static shear resistance at 70°C | good |
| Temperature resistance long term | 80 °C |
| Tack | very good |
| Static shear resistance at 23°C | good |
Adhesion to Values
| Adhesion to ABS (initial) | 42 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 46 N/cm |
| Adhesion to Aluminium (initial) | 44 N/cm |
| Adhesion to Aluminium (after 3 days) | 48 N/cm |
| Adhesion to Glass (initial) | 37 N/cm |
| Adhesion to Glass (after 3 days) | 47 N/cm |
| Adhesion to PE (initial) | 22 N/cm |
| Adhesion to PE (after 3 days) | 28 N/cm |
| Adhesion to PP (initial) | 29 N/cm |
| Adhesion to PP (after 3 days) | 31 N/cm |
| Adhesion to Steel (initial) | 46 N/cm |
| Adhesion to Steel (after 3 days) | 51 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 42 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 46 N/cm |
| Adhesion to Aluminium (initial) | 44 N/cm |
| Adhesion to Aluminium (after 3 days) | 48 N/cm |
| Adhesion to Glass (initial) | 37 N/cm |
| Adhesion to Glass (after 3 days) | 47 N/cm |
| Adhesion to PE (initial) | 22 N/cm |
| Adhesion to PE (after 3 days) | 28 N/cm |
| Adhesion to PP (initial) | 29 N/cm |
| Adhesion to PP (after 3 days) | 31 N/cm |
| Adhesion to Steel (initial) | 46 N/cm |
| Adhesion to Steel (after 3 days) | 51 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
