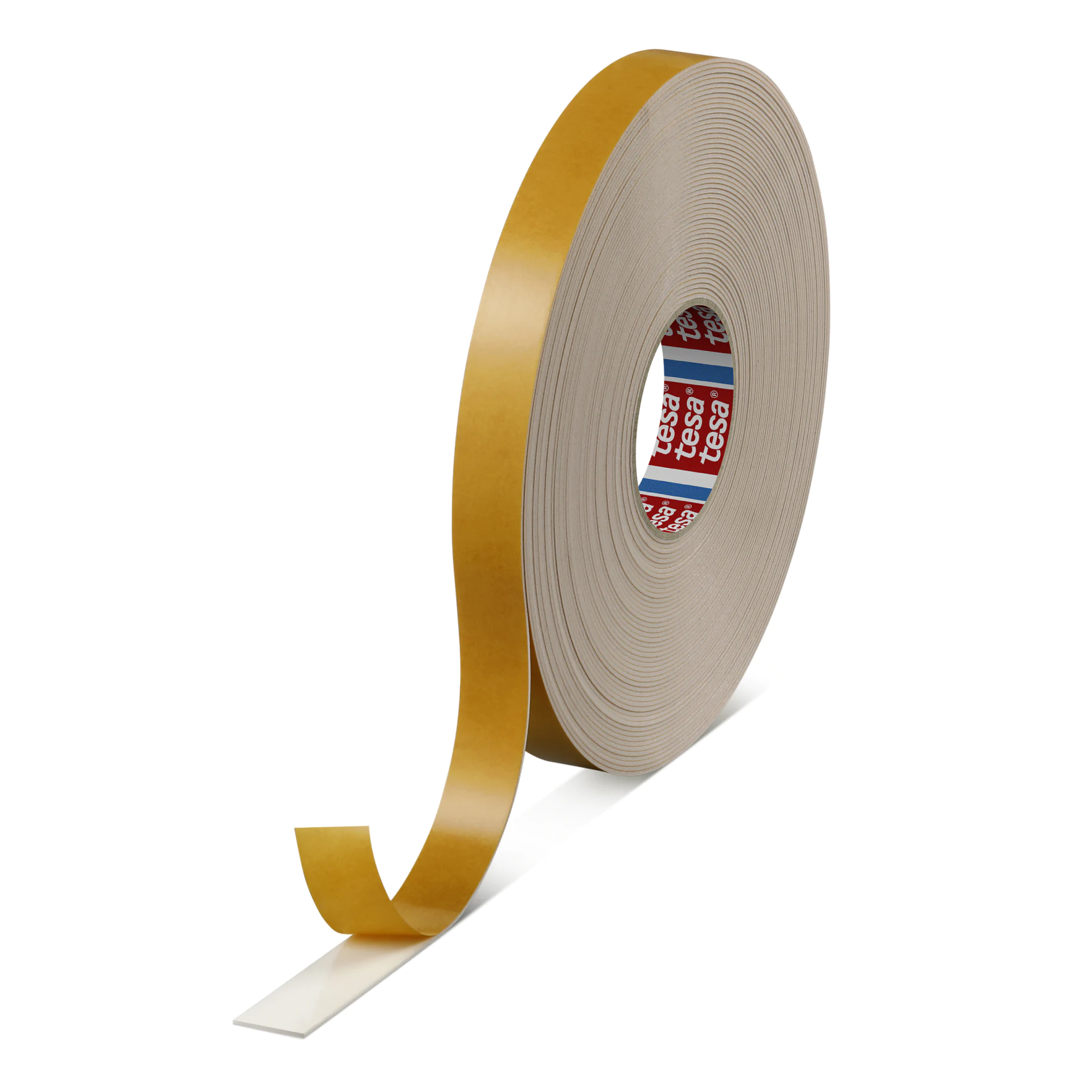

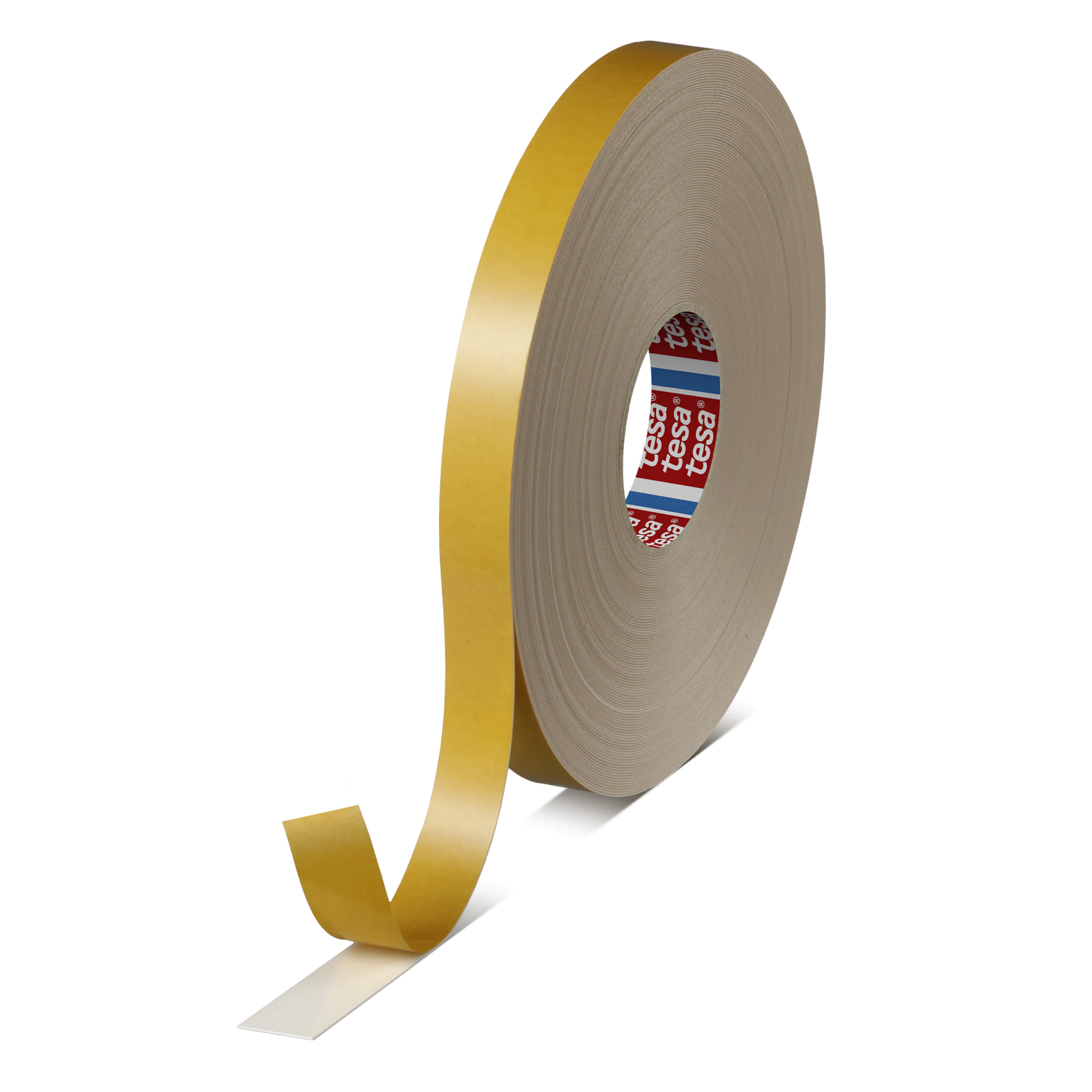

tesa® 62934

800µm double sided PE foam tape

Product Features

Versatile adhesive for high immediate adhesion on numerous substrates
Skin contact certification according to ISO 10993-5 and ISO 10993-10
High ultimate adhesion level for a secure bonding performance

All product features

Product description

tesa® 62934 is a double sided PE foam tape for constructive mounting applications. It consists of a highly conformable PE foam backing and a tackified acrylic adhesive.

Product details and specifications

Product Features

Versatile adhesive for high immediate adhesion on numerous substrates
Skin contact certification according to ISO 10993-5 and ISO 10993-10
High ultimate adhesion level for a secure bonding performance
Fully outdoor suitable: UV, water and ageing resistant
Compensates for differing thermal expansion of dissimilar materials
High immediate bonding strength even at low bonding pressure
Very good cold shock absorbtion

Application Fields

Decorative aluminium cover screens on brown goods
Doorhandles in kitchen furniture
Moulded plastic parts
Mirrors and coloured glass panels

Adhesive Type	tackified acrylic
Backing material	PE foam
Color	black/white
Total thickness	800 µm

Adhesive Type	tackified acrylic
Backing material	PE foam
Color	black/white
Total thickness	800 µm

Elongation at break	250 %
Tensile strength	8 N/cm
Humidity resistance	very good
Static shear resistance at 40°C	good
Ageing resistance (UV)	good
Temperature resistance long term	80 °C
Temperature resistance short term	80 °C
Tack	good
Static shear resistance at 23°C	good
Softener resistance	medium

Elongation at break	250 %
Tensile strength	8 N/cm
Humidity resistance	very good
Static shear resistance at 40°C	good
Ageing resistance (UV)	good
Temperature resistance long term	80 °C
Temperature resistance short term	80 °C
Tack	good
Static shear resistance at 23°C	good
Softener resistance	medium

Adhesion to ABS (initial)	17 N/cm
Adhesion to ABS (after 14 days)	17 N/cm
Adhesion to Aluminium (initial)	17 N/cm
Adhesion to Aluminium (after 14 days)	17 N/cm
Adhesion to PC (initial)	15 N/cm
Adhesion to PC (after 14 days)	17 N/cm
Adhesion to PE (initial)	2.7 N/cm
Adhesion to PE (after 14 days)	2.8 N/cm
Adhesion to PET (initial)	12.5 N/cm
Adhesion to PET (after 14 days)	17 N/cm
Adhesion to PP (initial)	2.8 N/cm
Adhesion to PP (after 14 days)	5.5 N/cm
Adhesion to PS (initial)	15 N/cm
Adhesion to PS (after 14 days)	17 N/cm
Adhesion to PVC (initial)	17 N/cm
Adhesion to PVC (after 14 days)	17 N/cm
Adhesion to Steel (initial)	17 N/cm
Adhesion to Steel (after 14 days)	17 N/cm

Adhesion to ABS (initial)	17 N/cm
Adhesion to ABS (after 14 days)	17 N/cm
Adhesion to Aluminium (initial)	17 N/cm
Adhesion to Aluminium (after 14 days)	17 N/cm
Adhesion to PC (initial)	15 N/cm
Adhesion to PC (after 14 days)	17 N/cm
Adhesion to PE (initial)	2.7 N/cm
Adhesion to PE (after 14 days)	2.8 N/cm
Adhesion to PET (initial)	12.5 N/cm
Adhesion to PET (after 14 days)	17 N/cm
Adhesion to PP (initial)	2.8 N/cm
Adhesion to PP (after 14 days)	5.5 N/cm
Adhesion to PS (initial)	15 N/cm
Adhesion to PS (after 14 days)	17 N/cm
Adhesion to PVC (initial)	17 N/cm
Adhesion to PVC (after 14 days)	17 N/cm
Adhesion to Steel (initial)	17 N/cm
Adhesion to Steel (after 14 days)	17 N/cm

Liner variants:

PV0 brown glassine paper (71 µm)
PV10 red transparent PP film (120 µm)
PV15 blue PE film (100 µm)

Peel Adhesion:

immediate: foam splitting on Steel, Aluminium, ABS
after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC

tesa® 62934 has been tested by TÜV Rheinland, Germany. The test confirms the longterm adhesion performance after IEC 61215 / 61646 climate tests and a 85°C temperature resistance. (TÜV report number 21209595).

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 62934_en_en-US_v14 131.5 kB Bonding Performance tesa 62934 Solar Modules TÜV 103.7 kB tesa 6293x Family Skin contact - statement 124.6 kB Product information_tesa® 62934_en 53.2 kB
