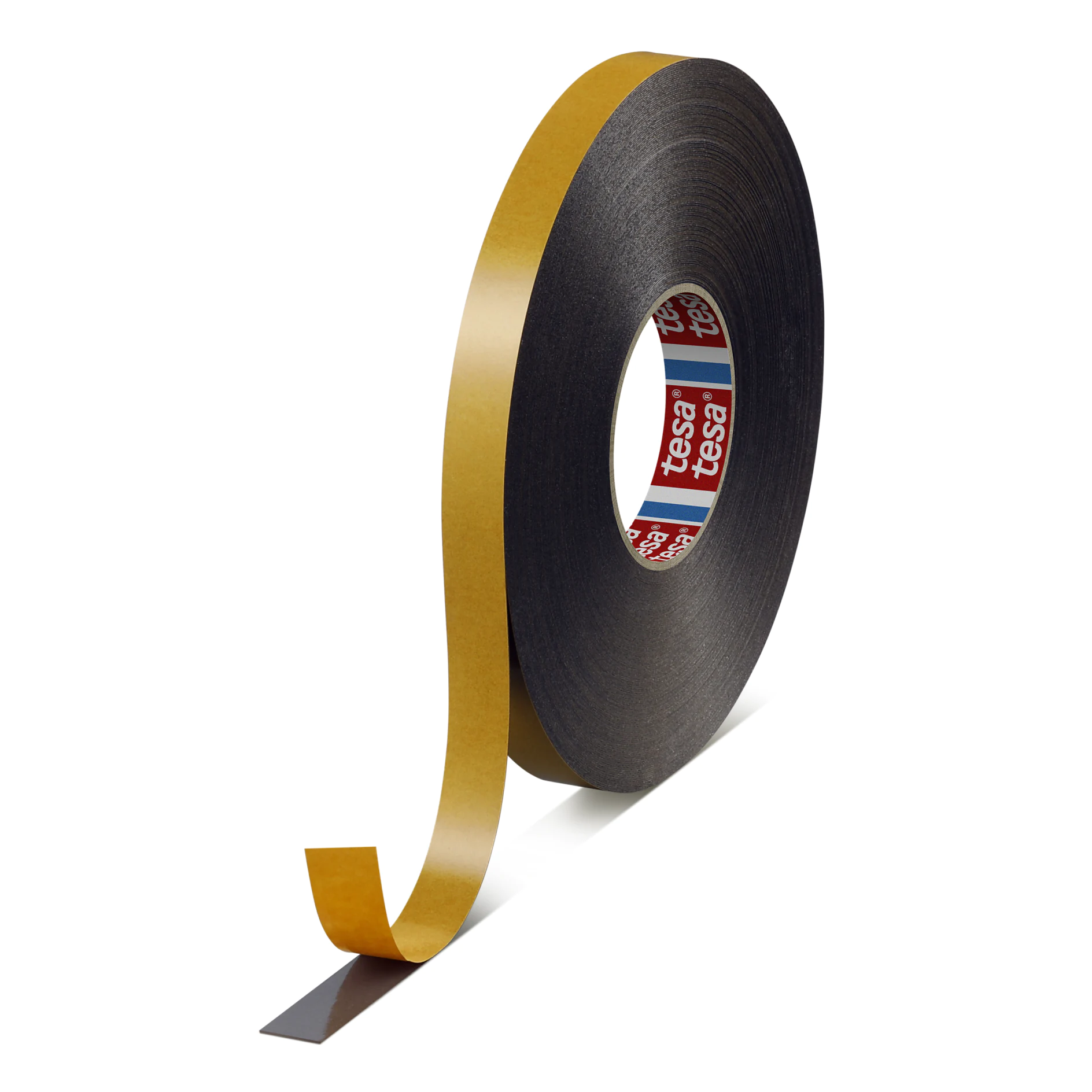

tesa® 62932

500 µm double sided PE foam tape

Product Features

Thin foam backing for a small design gap
Skin contact certification according to ISO 10993-5 and ISO 10993-10
Versatile adhesive for high immediate adhesion on numerous substrates

All product features

Product description

tesa® 62932 is a double sided PE foam tape for constructive mounting applications. It consists of a conformable PE foam backing and a tackified acrylic adhesive.

Product details and specifications

Product Features

Thin foam backing for a small design gap
Skin contact certification according to ISO 10993-5 and ISO 10993-10
Versatile adhesive for high immediate adhesion on numerous substrates
High ultimate adhesion level for a secure bonding performance
Fully outdoor suitable: UV, water and ageing resistant
High immediate bonding strength even at low bonding pressure
Very good cold shock absorbtion

Application Fields

Decorative aluminium cover screens on brown goods
Doorhandles in kitchen furniture
Moulded decorative profiles for refrigerators or freezers
Glass and mirror panels

Adhesive Type	tackified acrylic
Backing material	PE foam
Color	black/white
Total thickness	500 µm

Adhesive Type	tackified acrylic
Backing material	PE foam
Color	black/white
Total thickness	500 µm

Elongation at break	270 %
Tensile strength	8 N/cm
Static shear resistance at 23°C	good
Ageing resistance (UV)	good
Temperature resistance long term	80 °C
Humidity resistance	very good
Temperature resistance short term	80 °C
Tack	good
Static shear resistance at 40°C	good
Chemical Resistance	good
Softener resistance	medium

Elongation at break	270 %
Tensile strength	8 N/cm
Static shear resistance at 23°C	good
Ageing resistance (UV)	good
Temperature resistance long term	80 °C
Humidity resistance	very good
Temperature resistance short term	80 °C
Tack	good
Static shear resistance at 40°C	good
Chemical Resistance	good
Softener resistance	medium

Adhesion to ABS (initial)	14 N/cm
Adhesion to ABS (after 14 days)	17 N/cm
Adhesion to Aluminium (initial)	13 N/cm
Adhesion to Aluminium (after 14 days)	17 N/cm
Adhesion to PC (initial)	9 N/cm
Adhesion to PC (after 14 days)	17 N/cm
Adhesion to PE (initial)	1.7 N/cm
Adhesion to PE (after 14 days)	3 N/cm
Adhesion to PET (initial)	12.5 N/cm
Adhesion to PET (after 14 days)	17 N/cm
Adhesion to PP (initial)	1.8 N/cm
Adhesion to PP (after 14 days)	3.3 N/cm
Adhesion to PS (initial)	10.5 N/cm
Adhesion to PS (after 14 days)	17 N/cm
Adhesion to PVC (initial)	14.5 N/cm
Adhesion to PVC (after 14 days)	17 N/cm
Adhesion to Steel (initial)	13 N/cm
Adhesion to Steel (after 14 days)	17 N/cm

Adhesion to ABS (initial)	14 N/cm
Adhesion to ABS (after 14 days)	17 N/cm
Adhesion to Aluminium (initial)	13 N/cm
Adhesion to Aluminium (after 14 days)	17 N/cm
Adhesion to PC (initial)	9 N/cm
Adhesion to PC (after 14 days)	17 N/cm
Adhesion to PE (initial)	1.7 N/cm
Adhesion to PE (after 14 days)	3 N/cm
Adhesion to PET (initial)	12.5 N/cm
Adhesion to PET (after 14 days)	17 N/cm
Adhesion to PP (initial)	1.8 N/cm
Adhesion to PP (after 14 days)	3.3 N/cm
Adhesion to PS (initial)	10.5 N/cm
Adhesion to PS (after 14 days)	17 N/cm
Adhesion to PVC (initial)	14.5 N/cm
Adhesion to PVC (after 14 days)	17 N/cm
Adhesion to Steel (initial)	13 N/cm
Adhesion to Steel (after 14 days)	17 N/cm

Liner variants:

PV0 brown glassine paper (71 µm)
PV10 redtransparent PP film(120 µm)
PV14 PE coated paper (122 µm)
PV15 blue PE film (100 µm)

Peel Adhesion:

after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC

UL Certificates:

check out our UL certification by clicking on the following link - https://iq.ulprospector.com/en/profile?e=131668

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

tesa 6293x Family Skin contact - statement 124.6 kB Product information_tesa® 62932_en 55.9 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 62932	tesa® 6308 New Bond	tesa® 6305 New Bond	tesa® 6311 New Bond	tesa® flameXtinct 45001	tesa® 63608	tesa® 63605	tesa® 88623	tesa® 63615	tesa® 55576	tesa® 63610	tesa® 6700 New Bond
Total thickness	500 µm	800 µm	500 µm	1100 µm	1000 µm	800 µm	500 µm	1000 µm	1500 µm	1200 µm	1000 µm	400 µm
Adhesive Type	tackified acrylic	LSE	LSE	LSE	FR acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	acrylic	tackified acrylic	pure acrylic
Backing material	PE foam	Acrylic foam	Acrylic foam	Acrylic foam	FR PE foam	PE foam	PE foam	PE foam	PE foam	PE foam	PE foam	foamed acrylic
Color	black/white	gray	gray	gray	white	black/white	black/white	white	black/white	white	black/white	gray
Adhesion to Steel (initial)	13 N/cm	28 N/cm	26 N/cm	30 N/cm	19.2 N/cm	11 N/cm	12 N/cm	22 N/cm	12 N/cm	5.5 N/cm	11 N/cm	14 N/cm
Adhesion to Steel (after 14 days)	17 N/cm				22 N/cm	11 N/cm	12 N/cm		12 N/cm		11 N/cm
Adhesion to PVC (initial)	14.5 N/cm					5 N/cm	5 N/cm	13 N/cm	6 N/cm	3 N/cm	6 N/cm
