Additional Info
The Adhesion to Steel data is tested according to ASTM-3330
tesa® 60978
160μm double sided non-woven tape
Product Features
- Good adhesion to a variety of polar surfaces
- Sufficient adhesion to non-polar surfaces
- Excellent holding power at escalated temperature
Product description

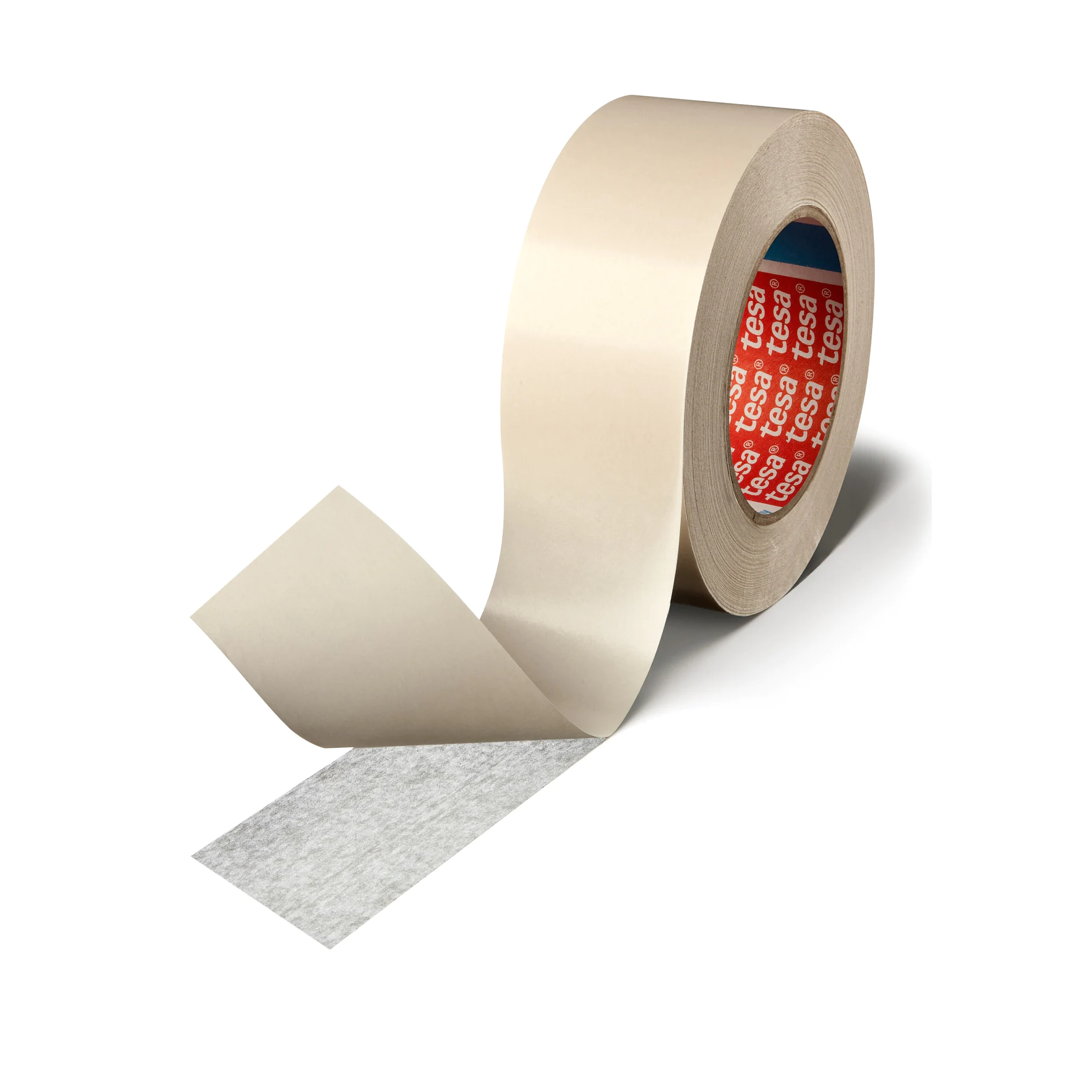

tesa® 60978 is a 160μm double sided non-woven tape consisting of a non-woven backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Good adhesion to a variety of polar surfaces
- Sufficient adhesion to non-polar surfaces
- Excellent holding power at escalated temperature
- Good Anti-repulsion performance
- Suitable for permanent applications
Application Fields
- Membrane switch mounting
- Foam lamination
- Textile lamination
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | PE-coated paper |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | PE-coated paper |
Properties / Performance Values
| Temperature resistance long term | 80 °C |
|---|---|
| Static shear resistance at 70°C | very good |
| Tack | good |
| Temperature resistance min. | 160 °C |
Properties / Performance Values
| Temperature resistance long term | 80 °C |
|---|---|
| Static shear resistance at 70°C | very good |
| Tack | good |
| Temperature resistance min. | 160 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 7.7 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 9.9 N/cm |
| Adhesion to Glass (initial) | 8.3 N/cm |
| Adhesion to PC (initial) | 7.9 N/cm |
| Adhesion to PC (after 3 days) | 9.8 N/cm |
| Adhesion to PE (initial) | 3.8 N/cm |
| Adhesion to PET (initial) | 6.5 N/cm |
| Adhesion to PP (initial) | 6.2 N/cm |
| Adhesion to PP (after 3 days) | 8.1 N/cm |
| Adhesion to PVC (initial) | 5.2 N/cm |
| Adhesion to Steel (initial) | 7.9 N/cm |
| Adhesion to Steel (after 3 days) | 10.2 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 7.7 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 9.9 N/cm |
| Adhesion to Glass (initial) | 8.3 N/cm |
| Adhesion to PC (initial) | 7.9 N/cm |
| Adhesion to PC (after 3 days) | 9.8 N/cm |
| Adhesion to PE (initial) | 3.8 N/cm |
| Adhesion to PET (initial) | 6.5 N/cm |
| Adhesion to PP (initial) | 6.2 N/cm |
| Adhesion to PP (after 3 days) | 8.1 N/cm |
| Adhesion to PVC (initial) | 5.2 N/cm |
| Adhesion to Steel (initial) | 7.9 N/cm |
| Adhesion to Steel (after 3 days) | 10.2 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
