The Adhesion to Steel data is tested according to ASTM-3330
tesa® 60977
140μm double sided non-woven tape
Product description

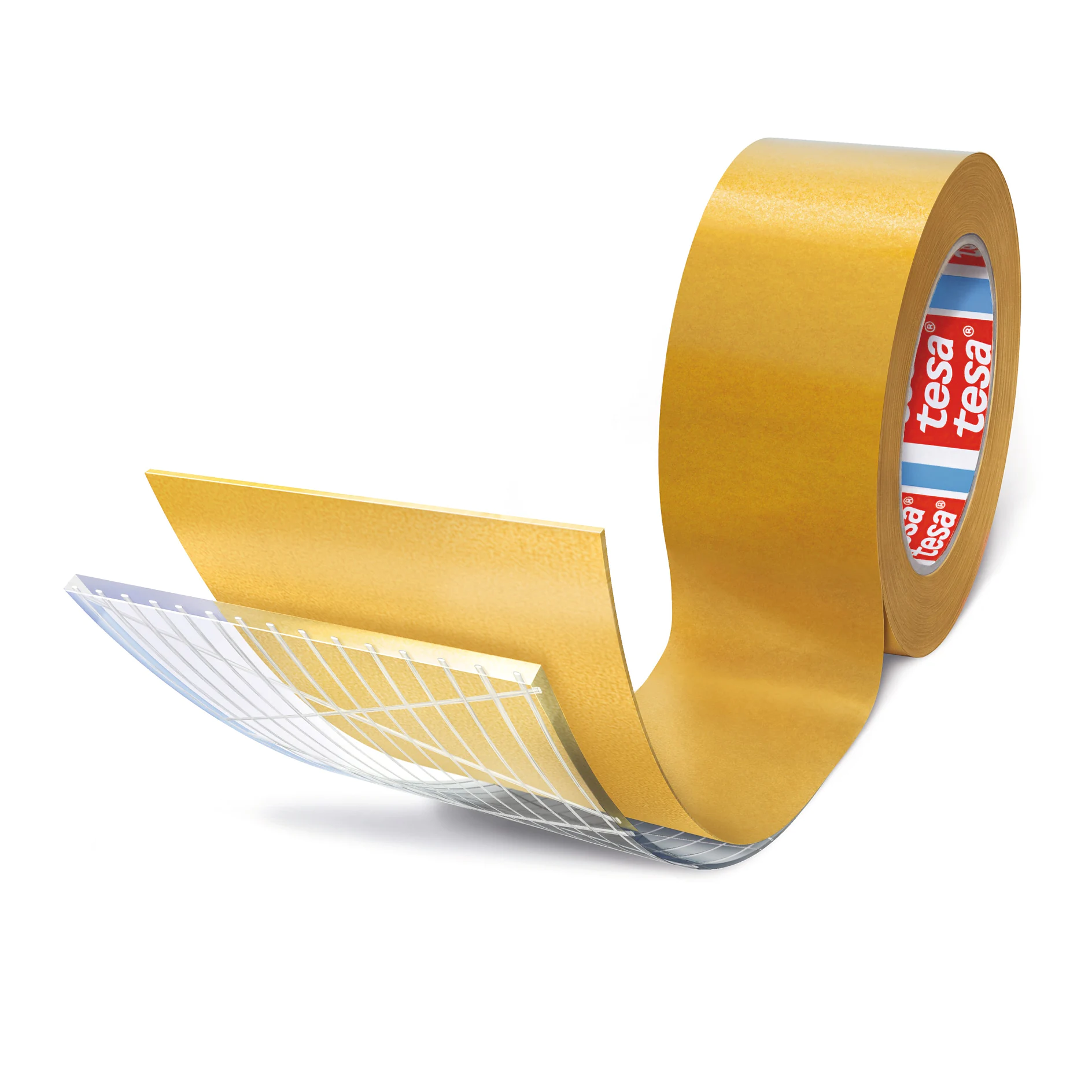

tesa® 60977 is a 140μm double sided non-woven tape consisting of a non-woven backing and a tackified acrylic adhesive.
Features:
- Conformable
- Excellent adhesion to a variety of polar surfaces
- Easily removable liner
- Suitable for permanent applications
Product details and specifications
Application Fields
- Control panel mounting
- Foam lamination
- Textile lamination
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Liner Type | PE-coated paper |
Properties / Performance Values
| Tack | good |
|---|---|
| Temperature resistance long term | 70 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 11.2 N/cm |
|---|---|
| Adhesion to ABS (after 3 days) | 13.2 N/cm |
| Adhesion to Glass (initial) | 12.7 N/cm |
| Adhesion to PC (initial) | 10.5 N/cm |
| Adhesion to PC (after 3 days) | 12.2 N/cm |
| Adhesion to PE (initial) | 4.4 N/cm |
| Adhesion to PP (initial) | 3 N/cm |
| Adhesion to PP (after 3 days) | 3.2 N/cm |
| Adhesion to PVC (initial) | 6.4 N/cm |
| Adhesion to Steel (initial) | 9.6 N/cm |
| Adhesion to Steel (after 3 days) | 11.2 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
