tesa® 60687
700µm single sided gray electrically conductive foam tape
Product Features
- Highly compressible with very low force
- Excellent recovery property
- Excellent conformability to surface variations and tolerances
Product description
tesa® 60687 is a gray single sided electrically conductive self adhesive foam tape. It consists of a highly compressible electrically conductive foam backing and an electrically conductive adhesive.
Product details and specifications
Product Features
- Highly compressible with very low force
- Excellent recovery property
- Excellent conformability to surface variations and tolerances
- Good electrical conductivity over a wide working range in XYZ-direction even at high temperatures and humidity
- High bonding strength even at harsh environmental conditions
- Excellent shock absorbing and cushioning properties
Application Fields
- Conductive gap filling
- EMI shielding and grounding applications
- Electrostatic discharge applications

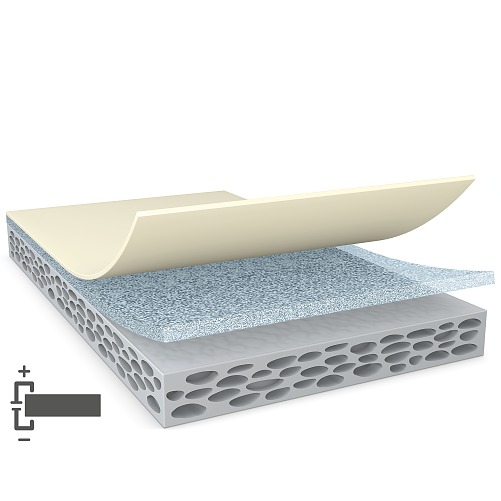

Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive foam |
| Color | gray |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 120 µm |
| Total thickness | 700 µm |
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive foam |
| Color | gray |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 120 µm |
| Total thickness | 700 µm |
Properties / Performance Values
| Contact resistance z-direction (initial) | 0.03 Ohm / square inch |
|---|---|
| Release of liner | easy |
| Temperature resistance short term | 200 °C |
| Surface resistance x-y-direction | 0.2 Ohm / square |
Properties / Performance Values
| Contact resistance z-direction (initial) | 0.03 Ohm / square inch |
|---|---|
| Release of liner | easy |
| Temperature resistance short term | 200 °C |
| Surface resistance x-y-direction | 0.2 Ohm / square |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 8 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (after 14 days) | 8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
