tesa® 60333
tesa® 60333 30 μm single sided matte black single sided electrically conductive copper tape
Product Features
- Excellent matte black appearance
- Excellent electrical conductivity in XYZ-direction
- Excellent EMI shielding performance
Product description

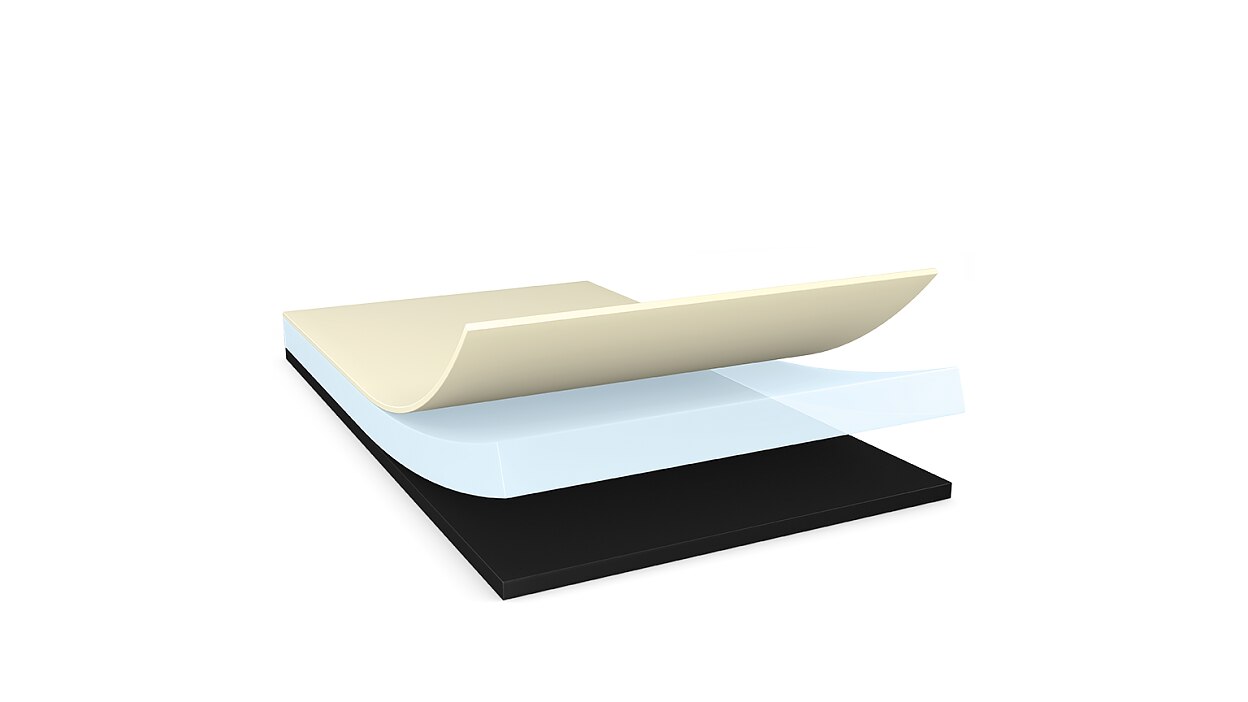

tesa® 60333 is matte black single sided electrically conductive copper tape. It consists of electrically conductive matte black copper backing and single sided conductive adhesive coating layer. Designed for EMI shielding for display, FPC, MLB and other components applications.
Product details and specifications
Product Features
- Excellent matte black appearance
- Excellent electrical conductivity in XYZ-direction
- Excellent EMI shielding performance
- Good bonding strength
- Good heat spreading performance with copper backing

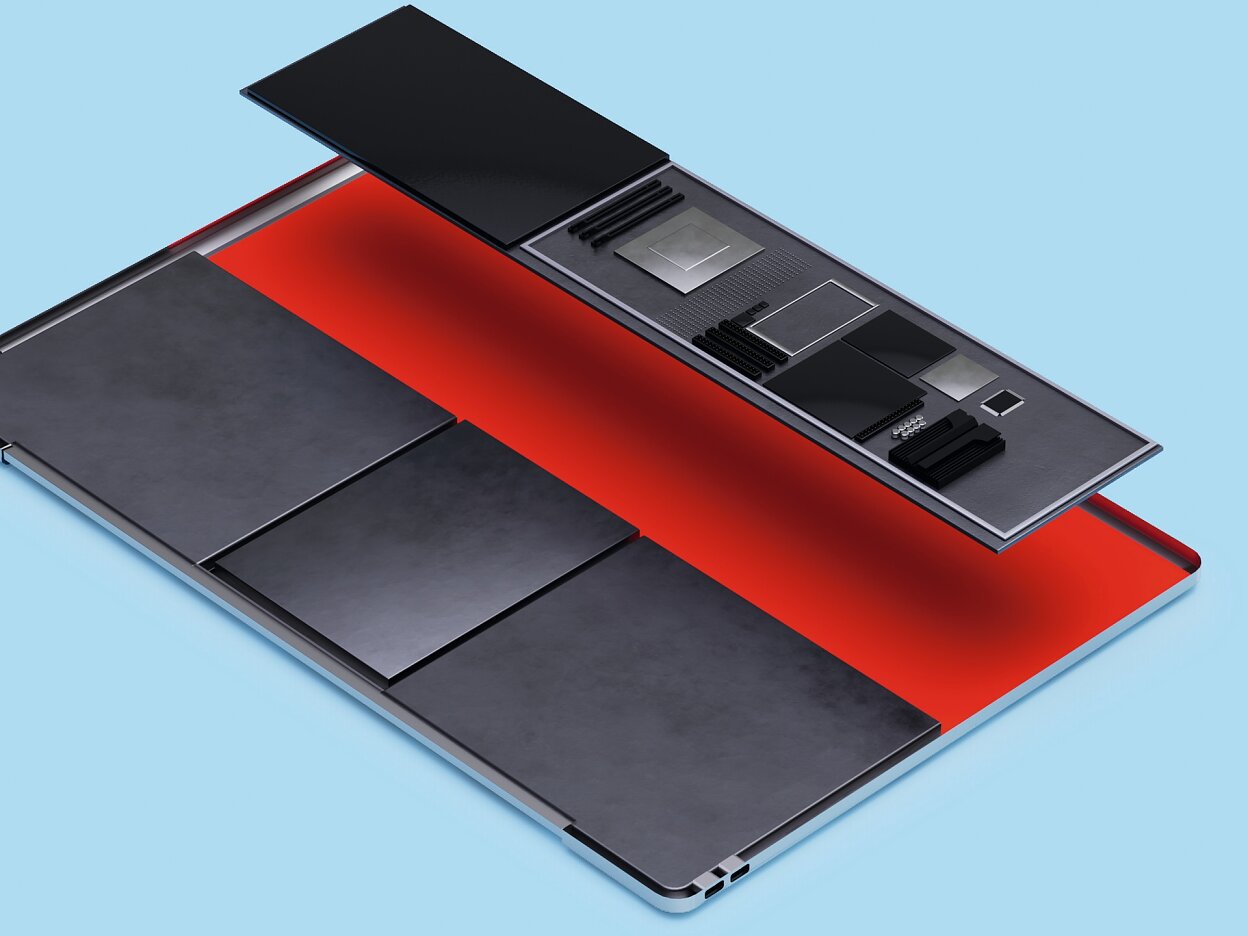

Application Fields
- Display covering and shielding
- MLB shielding
- FPC shielding
- Matte black shielding and covering on component
Technical Information (average values)
The values in this section should be considered representative or typical only and should not be used for specification purposes.
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | black-coated copper |
| Color | matte black |
| Color of liner | translucent |
| Liner Type | PET film |
| Thickness of liner | 100 µm |
| Total thickness | 30 µm |
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | black-coated copper |
| Color | matte black |
| Color of liner | translucent |
| Liner Type | PET film |
| Thickness of liner | 100 µm |
| Total thickness | 30 µm |
Properties / Performance Values
| Gloss level (60°) | 1.1 GU |
|---|---|
| Surface resistance x-y-direction (backing) | 0.1 Ohm / square |
| Surface resistance x-y-direction (adhesive) | 0.1 Ohm / square |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Properties / Performance Values
| Gloss level (60°) | 1.1 GU |
|---|---|
| Surface resistance x-y-direction (backing) | 0.1 Ohm / square |
| Surface resistance x-y-direction (adhesive) | 0.1 Ohm / square |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Adhesion to Values
| Adhesion to Steel (initial) | 4 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (initial) | 4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
