tesa® 60246
300µm single sided grey electrically conductive foam tape
Product Features
- Thickness: 300µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
Product description
tesa® 60246 is a grey single sided electrically conductive self adhesive foam tape. It consist of a perforated foam with electrically conductive coating and an electrically conductive adhesive.
Product details and specifications
Product Features
- Thickness: 300µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
- Very good shock absorbing and cushioning properties
- High stability of the foam to avoid flaking of particles
Application Fields
- EMI shielding and grounding applications
- Electrostatic discharge applications

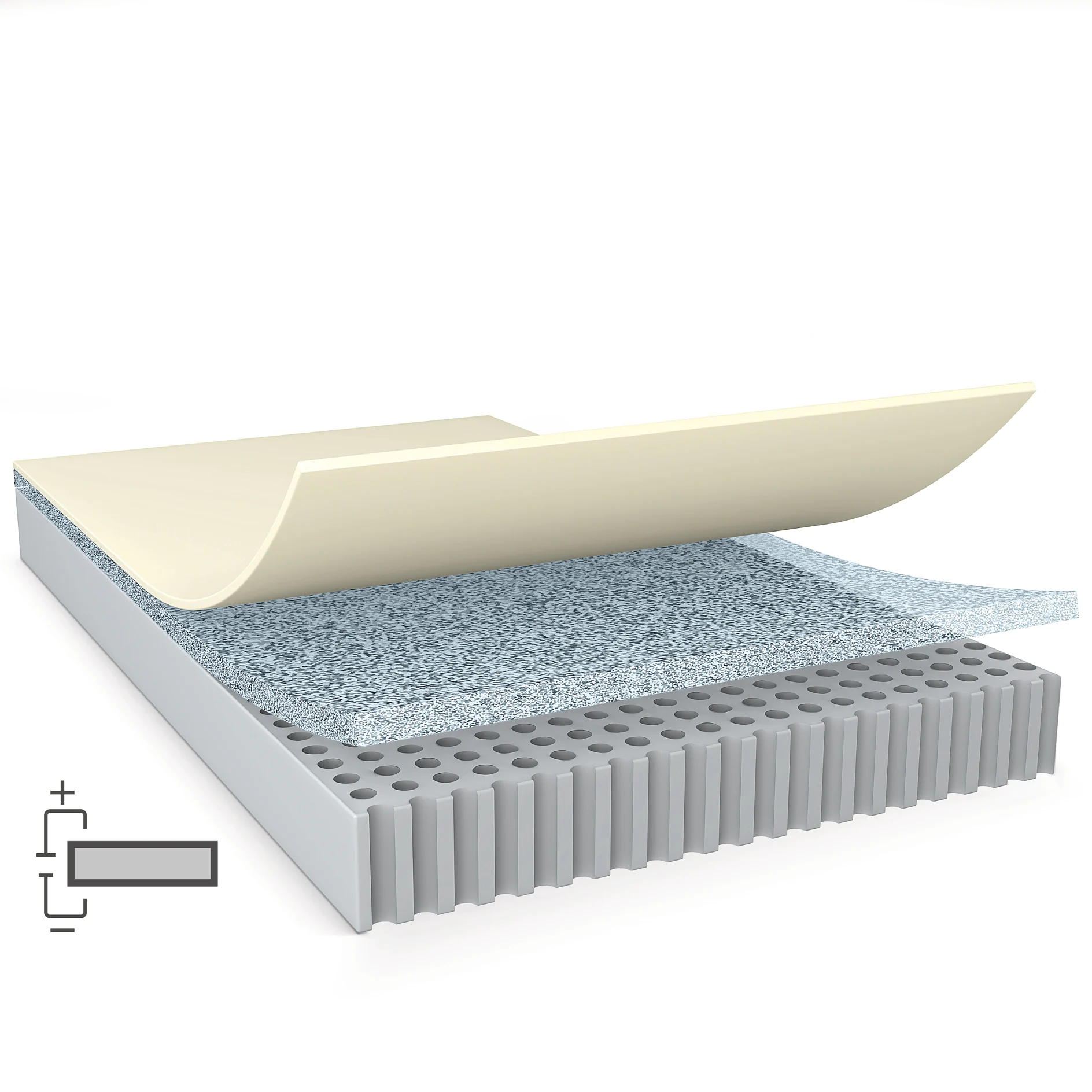

Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive foam |
| Color | gray |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 120 µm |
| Total thickness | 300 µm |
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive foam |
| Color | gray |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 120 µm |
| Total thickness | 300 µm |
Properties / Performance Values
| Temperature resistance short term | 160 °C |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.03 Ohm / square inch |
Properties / Performance Values
| Temperature resistance short term | 160 °C |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.03 Ohm / square inch |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 5.3 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (after 14 days) | 5.3 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
