tesa® 58337
45 µm PP tape for In-Cell applications
Product Features
- Electrolyte Resistance
- Laser Printability
Product description

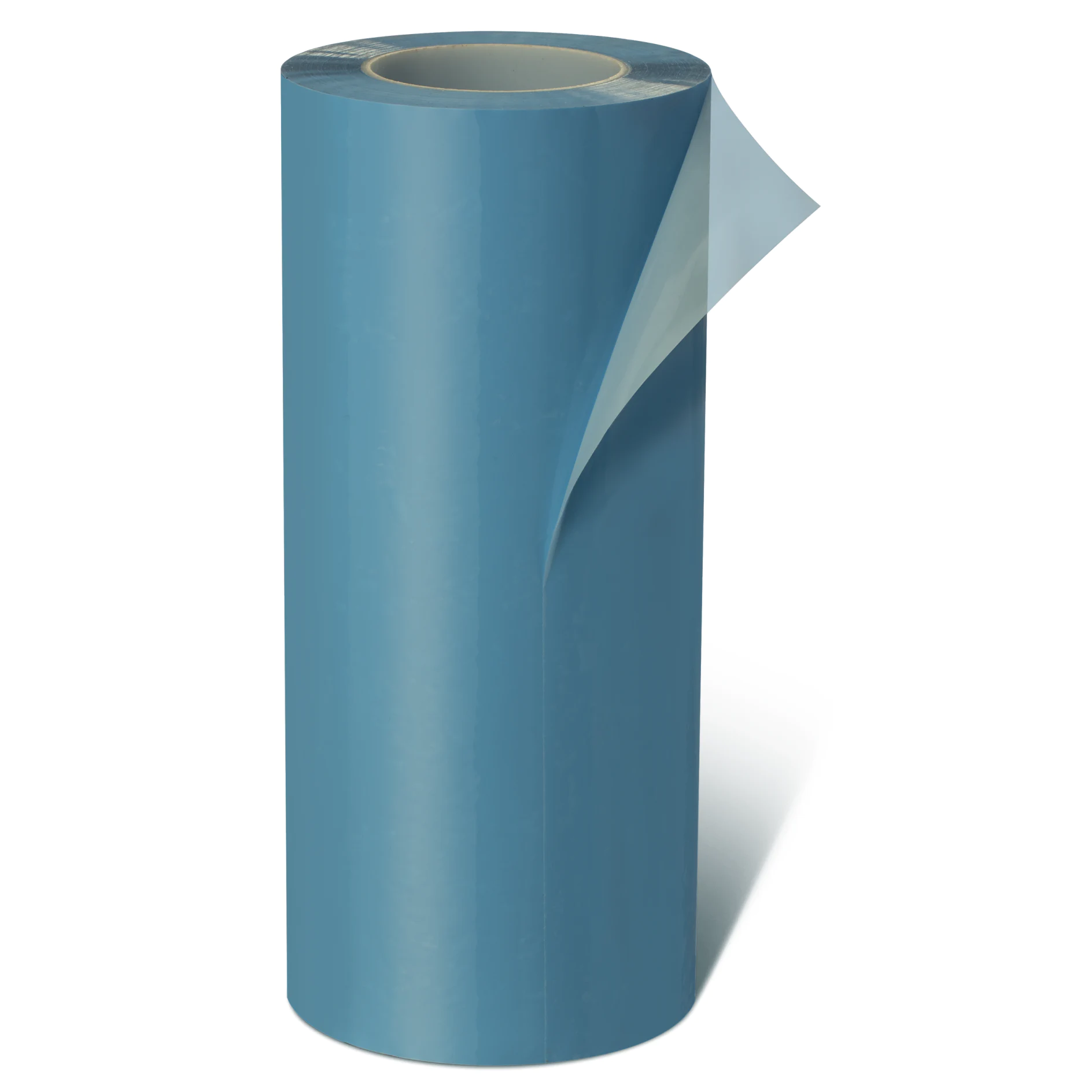

tesa® 58337 is a light blue 45 µm PP tape with an acrylic adhesive. tesa® 58337 has been designed for applications inside of EV battery cells.
Product details and specifications
Product Features
- Electrolyte Resistance
- Laser Printability
Application Fields
- Jelly-Roll Fixation
- Stack Fixation
- Welding-Seam Protection
- Cell-Tab Protection
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PP film |
| Total thickness | 45 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PP film |
| Total thickness | 45 µm |
Properties / Performance Values
| Elongation at break | 150 % |
|---|---|
| Tensile strength | 35 N/cm |
| Electrolyte resistance | yes |
Properties / Performance Values
| Elongation at break | 150 % |
|---|---|
| Tensile strength | 35 N/cm |
| Electrolyte resistance | yes |
Adhesion to Values
| Adhesion to Steel | 2.4 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
