Product Construction
| Backing material | PET |
| Color of liner | transparent |
| Thickness of liner | 36 µm |
| Total thickness | 130 µm |
| Type of adhesive | type: tackified acrylic |
| Type of liner | type: PET film |
tesa® 58356
130µm single-sided black PET tape
Product Features
- Excellent electrical insulation protection in battery
- Suitable for automation process
- Reliable processing through strong liner and backing
Product description
tesa® 58356 is a 130µm single-sided black PET tape equipped with 100µm black PET backing to ensure an outstanding electrical insulation property. Its tackified acrylic adhesive offers a very good reliable bonding strength during applications. Transparent PET liner provides easy handling while converting.
Product details and specifications
Product Features
- Excellent electrical insulation protection in battery
- Suitable for automation process
- Reliable processing through strong liner and backing
- Outstanding reliability performance according to automotive environment
- RoHS, REACH compliance
- Halogen-free
Application Fields

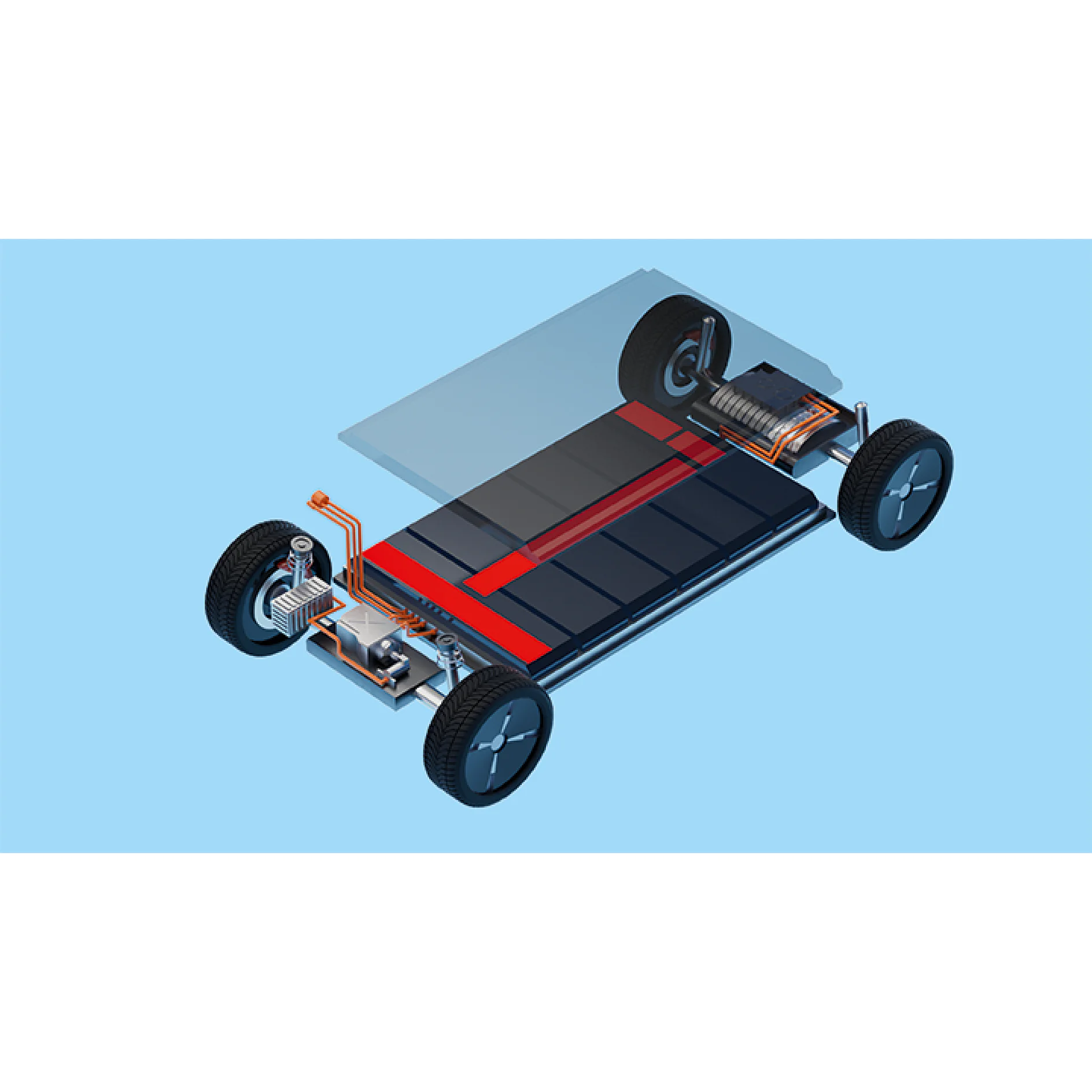

Electrical insulation of battery side plate and other components of electric vehicles.
Product Construction
| Backing material | PET |
| Color of liner | transparent |
| Thickness of liner | 36 µm |
| Total thickness | 130 µm |
| Type of adhesive | type: tackified acrylic |
| Type of liner | type: PET film |
Properties / Performance Values
| Elongation at break | 154 % |
| Tensile strength | 165 N/cm |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 125 °C |
| Static shear resistance at 40°C | very good |
| Dielectric breakdown voltage | 13330 V |
| Humidity resistance | very good |
Properties / Performance Values
| Elongation at break | 154 % |
| Tensile strength | 165 N/cm |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 125 °C |
| Static shear resistance at 40°C | very good |
| Dielectric breakdown voltage | 13330 V |
| Humidity resistance | very good |
Adhesion to Values
| Adhesion to Aluminium (initial) | 5.1 N/cm |
| Adhesion to Aluminium (after 14 days) | 7.2 N/cm |
| Adhesion to Steel | 8 N/cm |
| Adhesion to Steel (after 14 days) | 12.5 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 5.1 N/cm |
| Adhesion to Aluminium (after 14 days) | 7.2 N/cm |
| Adhesion to Steel | 8 N/cm |
| Adhesion to Steel (after 14 days) | 12.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
