tesa® 58344
tesa® 58344
Product Features
- Excellent electrical insulation property.
- Suitable adhesion on metal parts.
- Good convertability
Product description

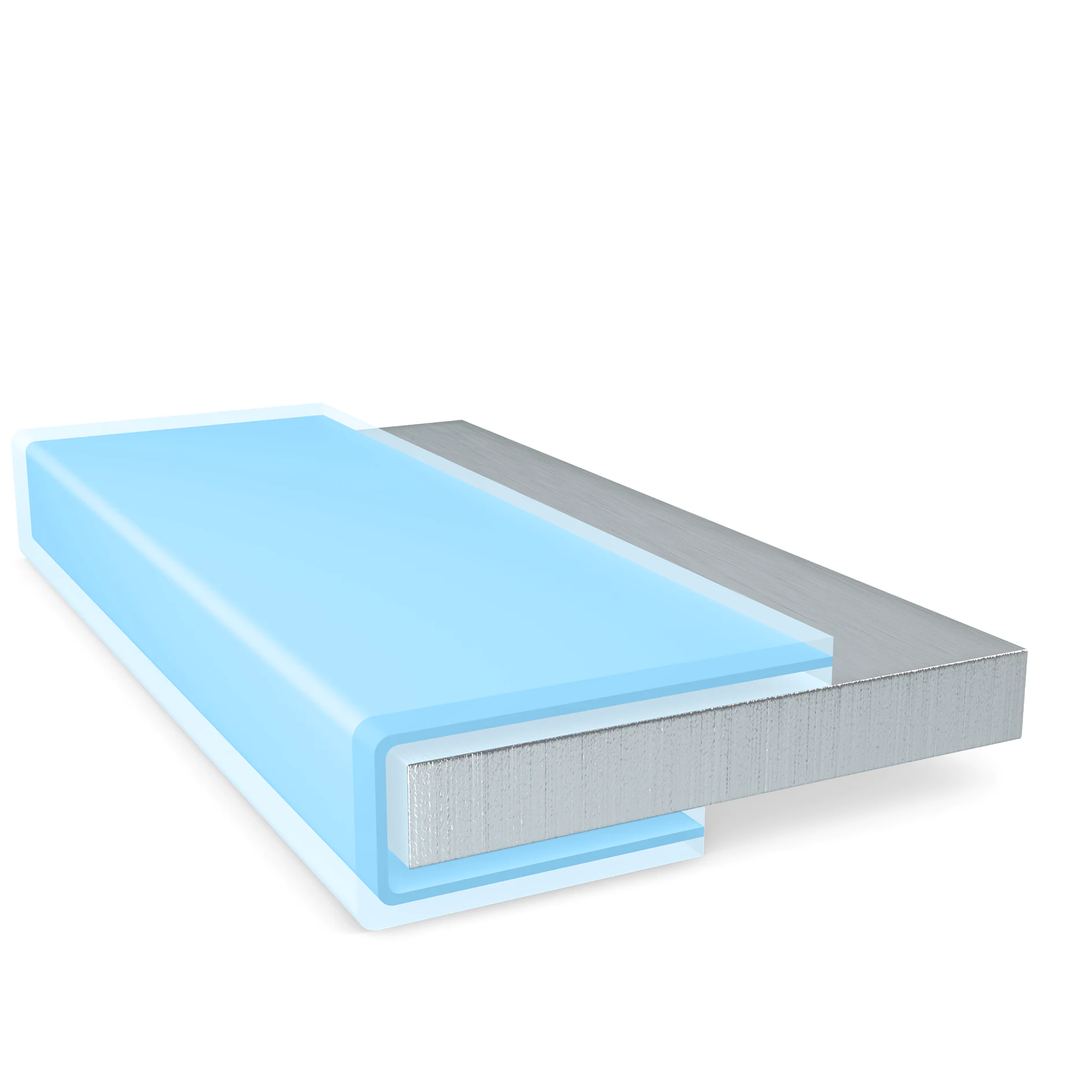

is a 90µm single-sided blue PET filmic tape.
The 75µm blue PET backing offers excellent electrical insulation property. The PET liner ensures it can be easily released without adhesive residue and provides good converting ability.
Product details and specifications
Product Features
- Excellent electrical insulation property.
- Suitable adhesion on metal parts.
- Good convertability
- Halogen-free
Application Fields
- Electrical insulation on metal parts.
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PET |
| Color | blue |
| Color of liner | transparent |
| Liner Type | PET |
| Total thickness | 90 µm |
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PET |
| Color | blue |
| Color of liner | transparent |
| Liner Type | PET |
| Total thickness | 90 µm |
Properties / Performance Values
| Elongation at break | 140 % |
|---|---|
| Tensile strength | 100 N/cm |
| Suitable for die cutting | yes |
| Temperature resistance long term | 125 °C |
| Temperature resistance | very good |
| Dielectric breakdown voltage | 12000 V |
Properties / Performance Values
| Elongation at break | 140 % |
|---|---|
| Tensile strength | 100 N/cm |
| Suitable for die cutting | yes |
| Temperature resistance long term | 125 °C |
| Temperature resistance | very good |
| Dielectric breakdown voltage | 12000 V |
Adhesion to Values
| Adhesion to Aluminium (initial) | 5 N/cm |
|---|---|
| Adhesion to Steel (initial) | 7 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 5 N/cm |
|---|---|
| Adhesion to Steel (initial) | 7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
