Additional Info
Liner variants:
- PV0 red PE (80 µm)
- PV14 white paper (110 µm)

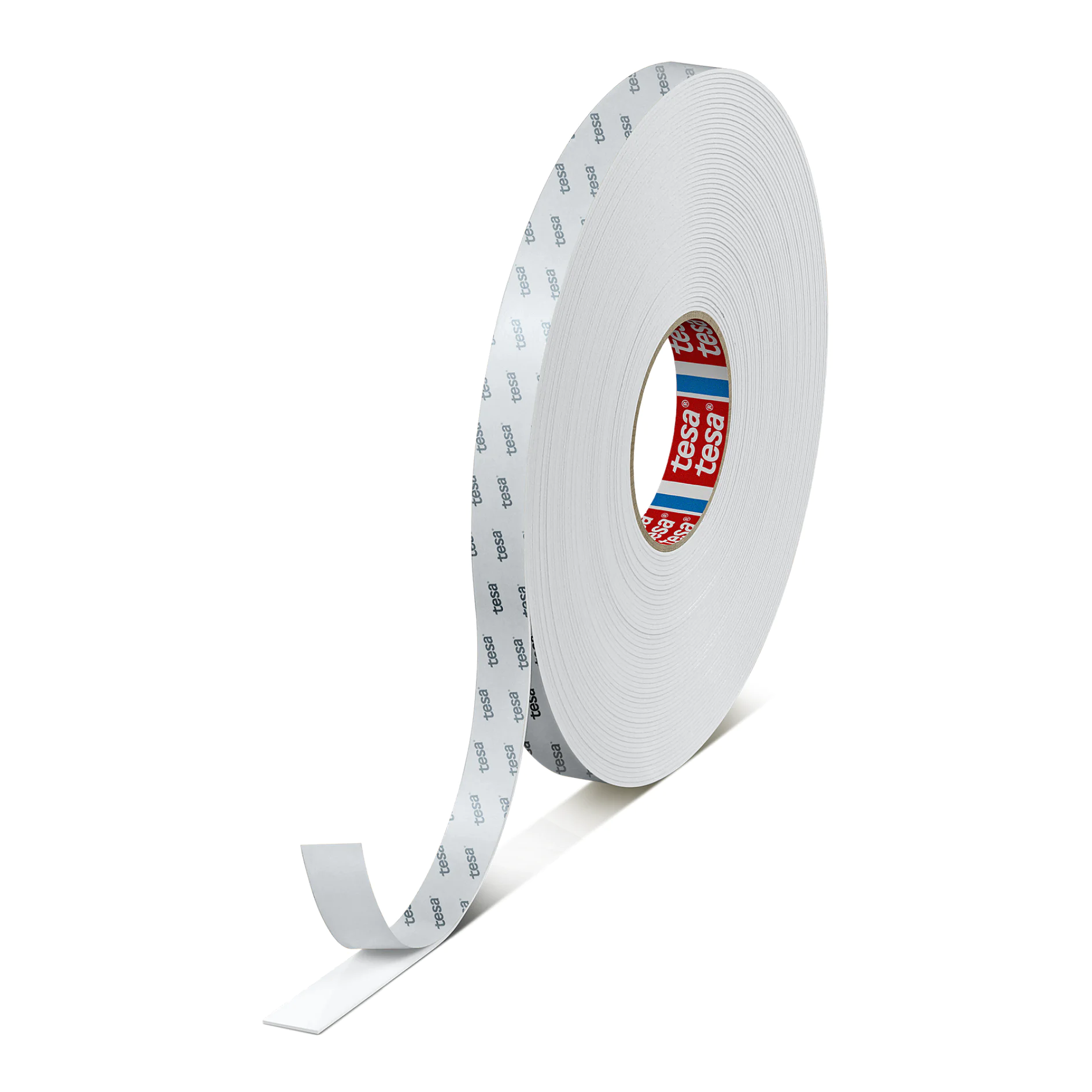

tesa® 55576
1200 µm double sided PE foam tape
Product Features
- tesa® 55576 is a double sided PE foam tape for light duty mounting applications. It consists of a PE foam backing and a tackified acrylic adhesive.
Product description
tesa® 55576 is a double sided PE foam tape for light duty mounting applications. It consists of a PE foam backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- tesa® 55576 is a double sided PE foam tape for light duty mounting applications. It consists of a PE foam backing and a tackified acrylic adhesive.
Application Fields
- Trims & Profiles Mounting
- POS Signs & Advertising Material Mounting
- Mirror Pre-Mounting
- Temporary Mounting
- Gap Filling
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PE foam |
| Color | white |
| Liner Type | PE-coated paper |
| Total thickness | 1,200 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PE foam |
| Color | white |
| Liner Type | PE-coated paper |
| Total thickness | 1,200 µm |
Properties / Performance Values
| Temperature resistance long term | 60 °C |
|---|---|
| Temperature resistance short term | 80 °C |
Properties / Performance Values
| Temperature resistance long term | 60 °C |
|---|---|
| Temperature resistance short term | 80 °C |
Adhesion to Values
| Adhesion to Aluminium (initial) | 6.4 N/cm |
|---|---|
| Adhesion to PE (initial) | 1.4 N/cm |
| Adhesion to PVC (initial) | 3 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 6.4 N/cm |
|---|---|
| Adhesion to PE (initial) | 1.4 N/cm |
| Adhesion to PVC (initial) | 3 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
