tesa® 54294
Die-Cuts of Adhesive Zinc Film
Product Features
- Secure and long-lasting bonding stability
- Effective protection against bimetallic corrosion
- Good conformability to flat and curved surfaces
Product description

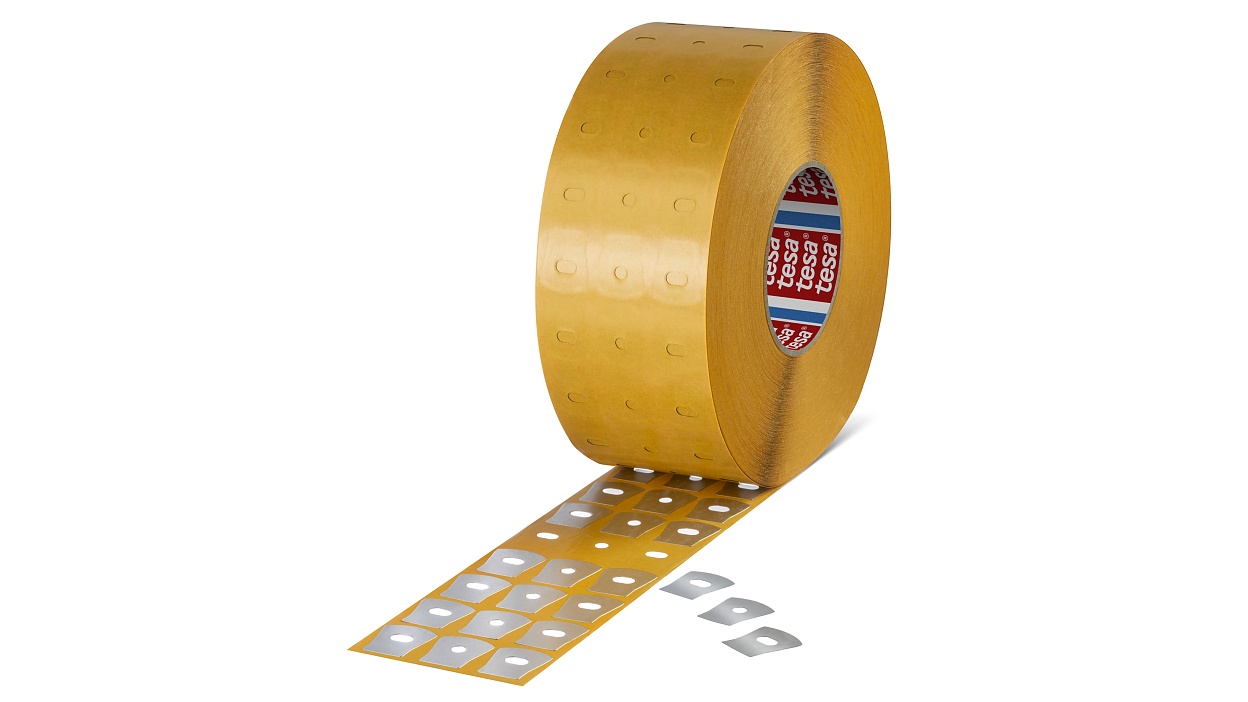

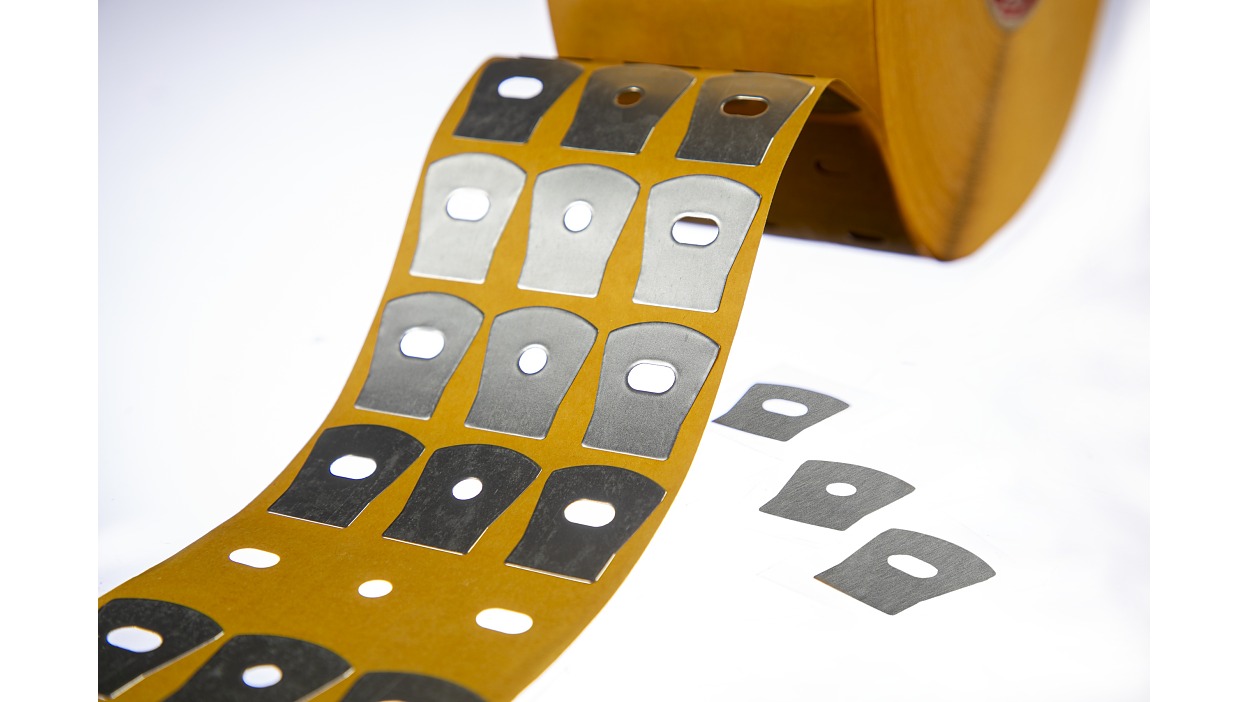

tesa® 54294 are customized die-cut solutions of an adhesive zinc film.
The product consists of a silver, high-purity zinc film and an permanent acrylic adhesive.
The precision die-cuts offer an effective protection against bimetallic corrosion and are perfectly suited as sacrificial anodes for protecting against electrolytic corrosion between varied metals, in particular under strong exposure to humidity and salt.
Product details and specifications
Product Features
- Secure and long-lasting bonding stability
- Effective protection against bimetallic corrosion
- Good conformability to flat and curved surfaces
- Good sealing ability
Application Fields
- Corrosion Protection
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | Zinc |
| Color | silver |
| Color of liner | yellow |
| Liner Type | glassine |
| Total thickness | 95 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | Zinc |
| Color | silver |
| Color of liner | yellow |
| Liner Type | glassine |
| Total thickness | 95 µm |
Properties / Performance Values
| Conformability | yes |
|---|---|
| Temperature resistance | yes |
| Suitable for die cutting | yes |
| Chemical Resistance | good |
| Temperature resistance (30 min) | 120 °C |
Properties / Performance Values
| Conformability | yes |
|---|---|
| Temperature resistance | yes |
| Suitable for die cutting | yes |
| Chemical Resistance | good |
| Temperature resistance (30 min) | 120 °C |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
