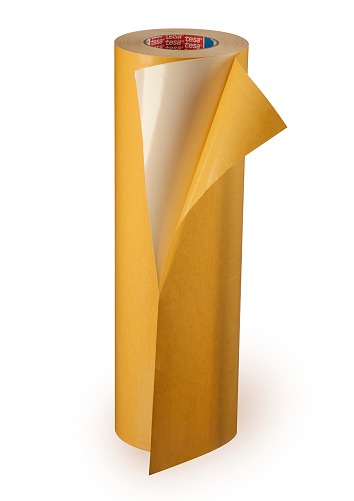

tesa® 52664
380 µm plate mounting tape for flexographic printing, especially corrugated postprint
Product Features
- The cloth backing provides a high degree of flexibility, facilitating easy plate mount, while the well-proven adhesive ensures a reliable yet removable bond between printing plate and carrier film.
- The product design makes this tape especially suitable for corrugated postprint plate mounting, where the tape is first applied to the printing plate, then the liner is removed and the plate is attached to the carrier film.
Product description
tesa® 52664 is a double-sided tape of 380 μm (15 mil) thickness with a cloth backing and a rubber adhesive.
Product details and specifications
Product Features
- The cloth backing provides a high degree of flexibility, facilitating easy plate mount, while the well-proven adhesive ensures a reliable yet removable bond between printing plate and carrier film.
- The product design makes this tape especially suitable for corrugated postprint plate mounting, where the tape is first applied to the printing plate, then the liner is removed and the plate is attached to the carrier film.
Application Fields
Plate mounting in flexo printing, especially mounting of photopolymer plates on polyester carrier films for corrugated board postprint
Product Construction
Adhesive Type | natural rubber |
---|---|
Backing material | cloth |
Liner Type | glassine |
Product Construction
Adhesive Type | natural rubber |
---|---|
Backing material | cloth |
Liner Type | glassine |
Properties / Performance Values
Thickness category | 380 |
---|
Properties / Performance Values
Thickness category | 380 |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
