tesa® 88026
2.6 mm (102 mil) tesaprint® Cushioning Foam
Product Features
- outstanding foam quality
- ensures excellent print quality, especially in combination with thinner printing plates
- It provides long-term resilience and outstanding resistance against water and solvents
Product description

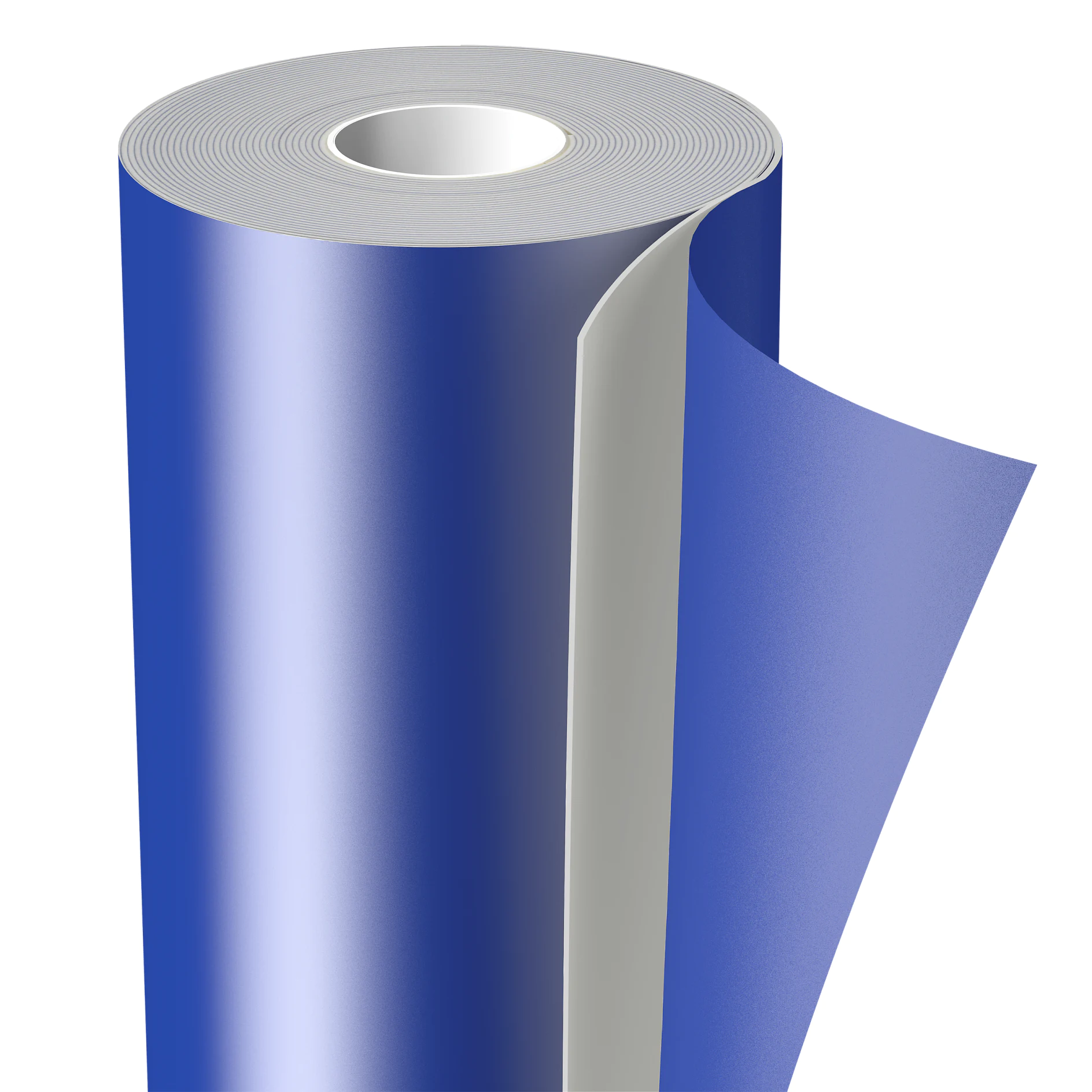

tesa® 88026 is a grey closed-cell PE foam, equipped with an acrylic adhesive, covered by a blue film liner.
It is especially designed to add a compressible layer to the compound of printing plate and carrier film when printing directly on corrugated board (Flexo post-print).
To use our tesaprint® Cushioning Foams, simply cut off the required foam size and remove the film liner to adhere the foam to the backside of your carrier film, after you have finished the printing plate mounting.
Product details and specifications
Product Features
- outstanding foam quality
- ensures excellent print quality, especially in combination with thinner printing plates
- It provides long-term resilience and outstanding resistance against water and solvents
Application Fields
Compressible substructure for post-print printing plates
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PE foam |
| Thickness of foam | 2.6 |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PE foam |
| Thickness of foam | 2.6 |
Properties / Performance Values
| Product design | removable HDPE liner |
|---|
Properties / Performance Values
| Product design | removable HDPE liner |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
