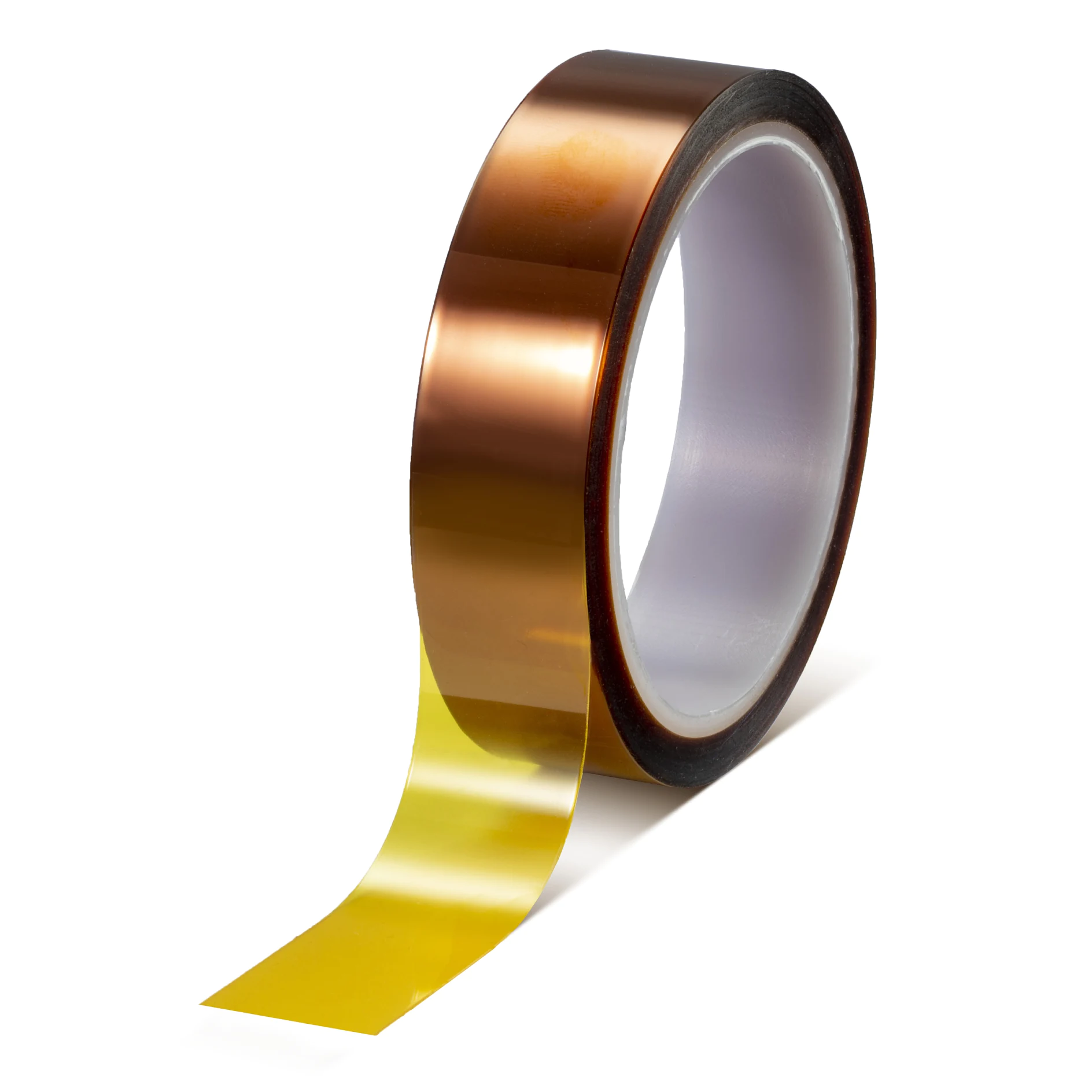

tesa® 51408
Premium Grade Polyimide Tape 260°C
Product Features
- High temperature resistance (up to 260°C)
- Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
- High chemical resistance and dielectric strength
Product description
tesa® 51408 is a premium grade polyimide tape with a silicone adhesive that has been specially developed to provide a solution for applications which require high temperature and chemical resistance.
tesa® 51408 is used for various applications, especially for wave soldering, thermal insulation and cable wrapping as well as masking during powder-coating processes where the tape enables sharp color edges and offers excellent paint anchorage. The polyimide tape's silicone adhesive system provides a high peel adhesion on various surfaces and makes the tape extremely heat-resistant, withstanding extreme temperatures of up to 260°C in continuous applications.
Product details and specifications
Product Features
- High temperature resistance (up to 260°C)
- Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
- High chemical resistance and dielectric strength
- Residue-free removability for masking applications
Application Fields
- tesa® 51408 is recommended for high temperature masking, e.g. powder coating, galvanizing
- The premium grade polyimide tape can be used for chemical production processes and wave soldering, e.g. during circuit board assembly
- Suitable for masking of 3D printing beds or electrical and thermal insulation, e.g. wire-or cable-wrapping
Product Construction
| Adhesive Type | silicone |
|---|---|
| Backing material | Polyimide |
| Total thickness | 65 µm |
Product Construction
| Adhesive Type | silicone |
|---|---|
| Backing material | Polyimide |
| Total thickness | 65 µm |
Properties / Performance Values
| Elongation at break | 70 % |
|---|---|
| Tensile strength | 46 N/cm |
| Dielectric breakdown voltage | 6000 V |
| Insulation class | H |
Properties / Performance Values
| Elongation at break | 70 % |
|---|---|
| Tensile strength | 46 N/cm |
| Dielectric breakdown voltage | 6000 V |
| Insulation class | H |
Adhesion to Values
| Adhesion to Steel | 2.8 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.8 N/cm |
|---|
Download the files below for more technical details and information on this product.
