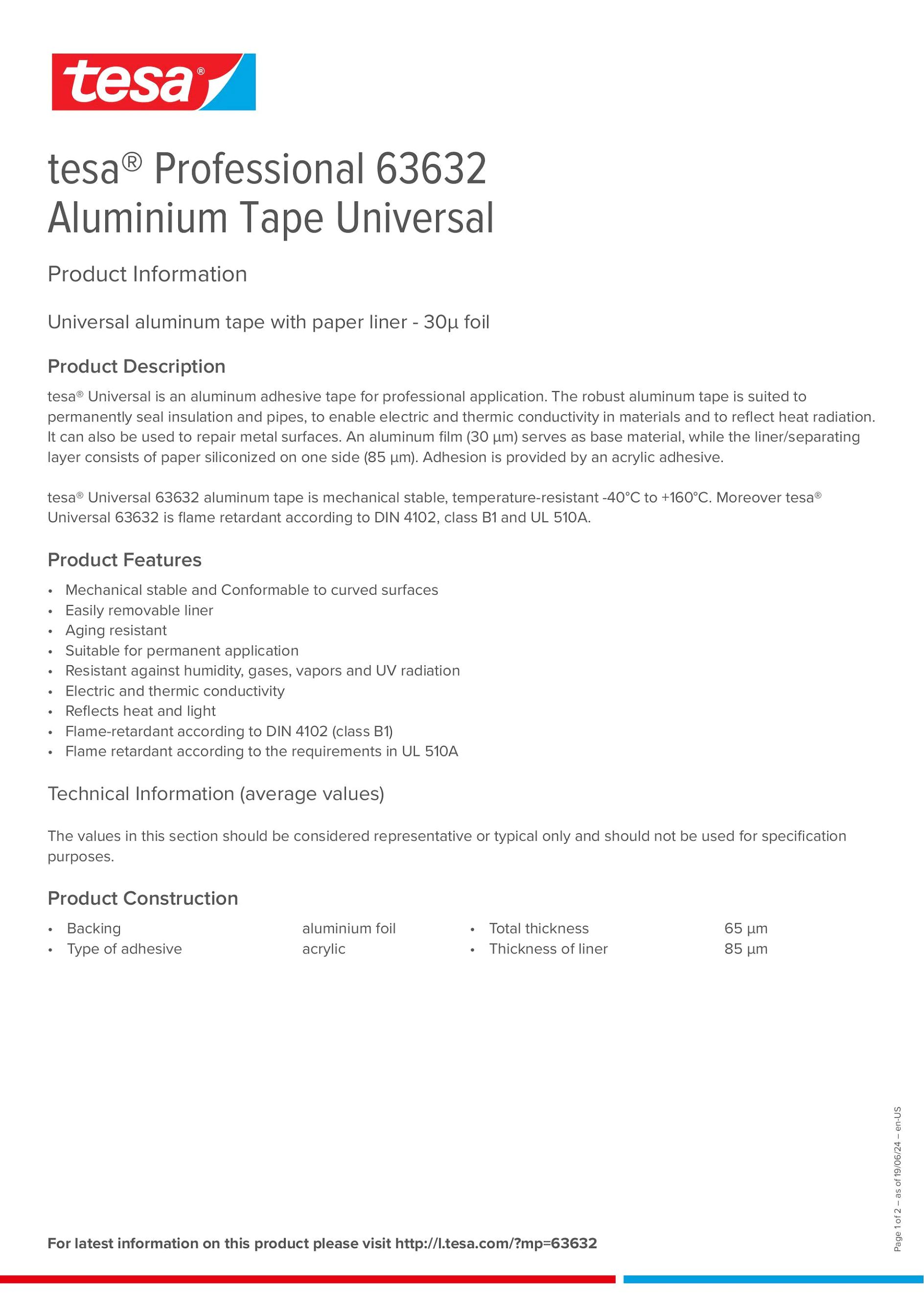

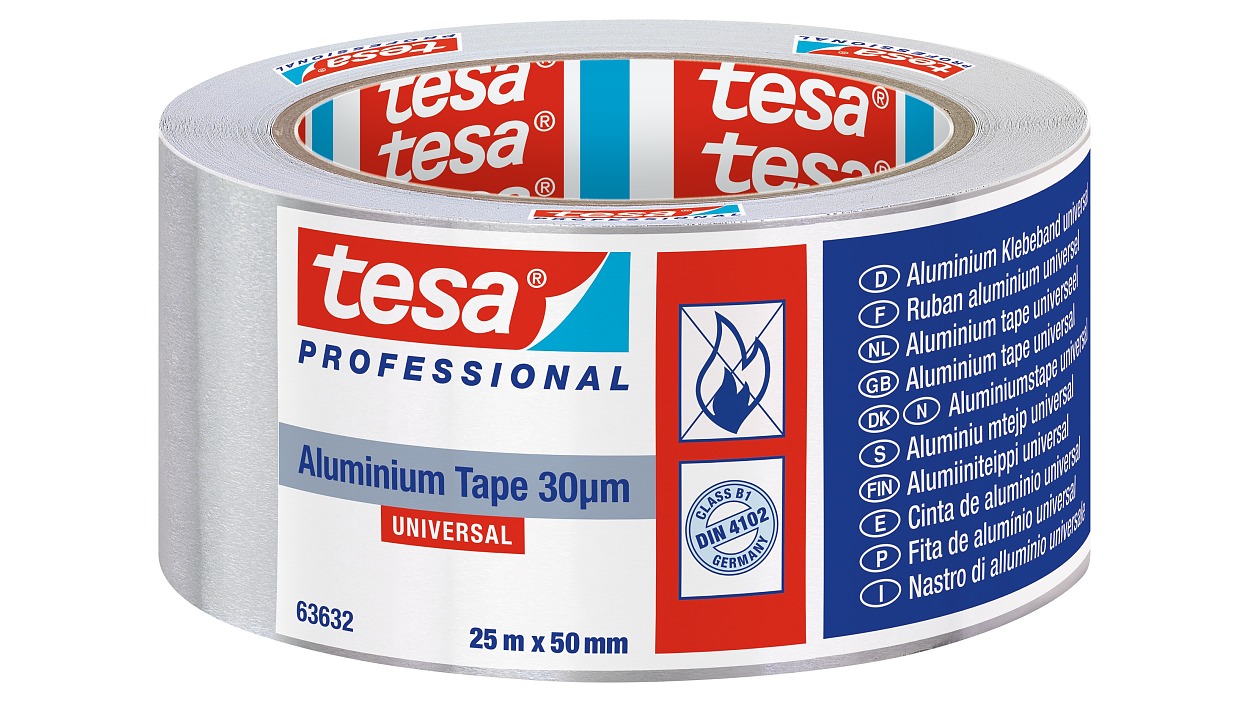

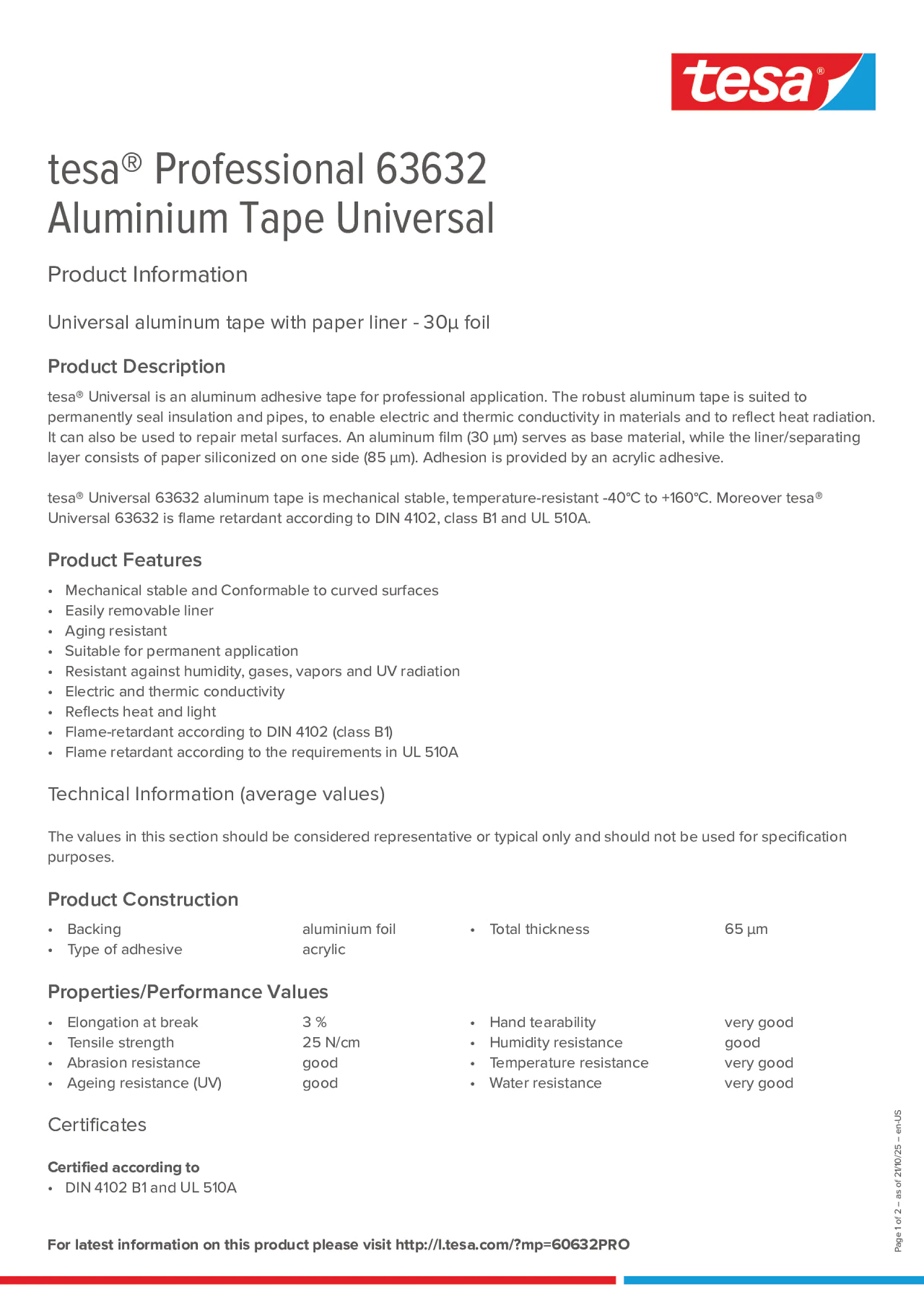

tesa® Professional 63632 Alu-Tape Universal
Universal aluminum tape with paper liner - 30μ foil
Product Features- Mechanical stable and Conformable to curved surfaces
- Easily removable liner
- Aging resistant
Product description
tesa® Universal is an aluminum adhesive tape for professional application. The robust aluminum tape is suited to permanently seal insulation and pipes, to enable electric and thermic conductivity in materials and to reflect heat radiation. It can also be used to repair metal surfaces. An aluminum film (30 μm) serves as base material, while the liner/separating layer consists of paper siliconized on one side (85 μm). Adhesion is provided by an acrylic adhesive.
tesa® Universal 63632 aluminum tape is mechanical stable, temperature-resistant -40°C to +160°C. Moreover tesa® Universal 63632 is flame retardant according to DIN 4102, class B1 and UL 510A.
tesa® Universal 63632 aluminum tape is mechanical stable, temperature-resistant -40°C to +160°C. Moreover tesa® Universal 63632 is flame retardant according to DIN 4102, class B1 and UL 510A.
Product Features
- Mechanical stable and Conformable to curved surfaces
- Easily removable liner
- Aging resistant
- Suitable for permanent application
- Resistant against humidity, gases, vapors and UV radiation
- Electric and thermic conductivity
- Reflects heat and light
- Flame-retardant according to DIN 4102 (class B1)
- Flame retardant according to the requirements in UL 510A
Product Construction
| Backing material | aluminium foil |
| Type of adhesive | acrylic |
| Total thickness | 65 µm |
| Thickness of liner | 85 µm |
Properties / Performance Values
| Easy to remove | no |
| Suitable for die cutting | yes |
| Abrasion resistance | good |
| Elongation at break | 3 % |
| Tensile strength | 25 N/cm |
| Ageing resistance (UV) | good |
| Backing appearance (visual) | reflective |
| Easy to write on | no |
| Fluorescent | no |
| Fogging | |
| Hand tearability | very good |
| Humidity resistance | good |
| Release of liner | easy |
| Temperature resistance long term | 90 °C |
| Temperature resistance min. | -40 °C |
| Temperature resistance short term | 160 °C |
| Water resistance | very good |
Adhesion to Values
| Adhesion to Glass (initial) | 8 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to Steel | 8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
