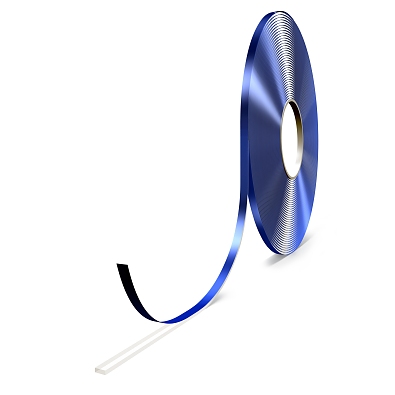

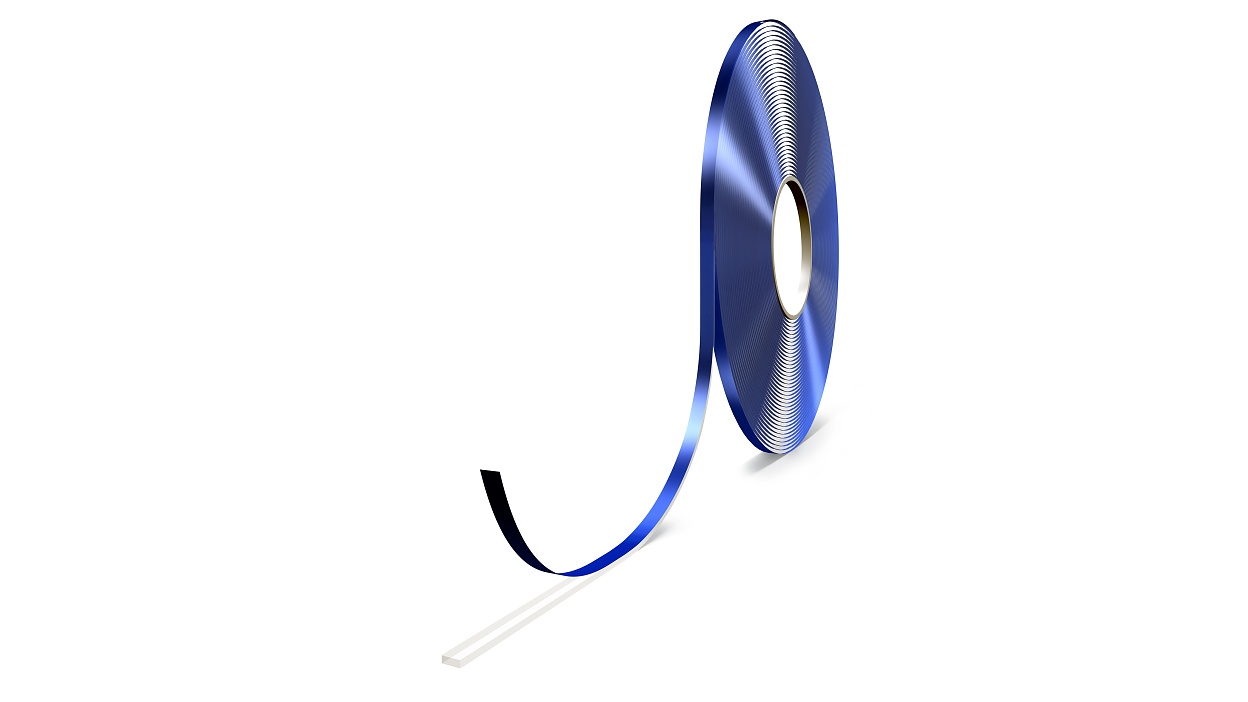

tesa® 75530

3000 µm double-sided acrylic core tape

Product Features

Due to its thickness ideal for gap filling requirements

Product description

tesa® ACX^plus 75530 is part of our tesa® ACX^plus 705x series and a highly transparent acrylic core tape designed for bonds that achieve a seamless and optical clear finish. Translucent and transparent materials, such as glass or acrylic are easy to bond with tesa® ACX^plus 75530.

Product details and specifications

Product Features

Due to its thickness ideal for gap filling requirements

Application Fields

Exemplary mounting applications in different industries (e.g. extruder, appliances, interior fit-out, signage) include:

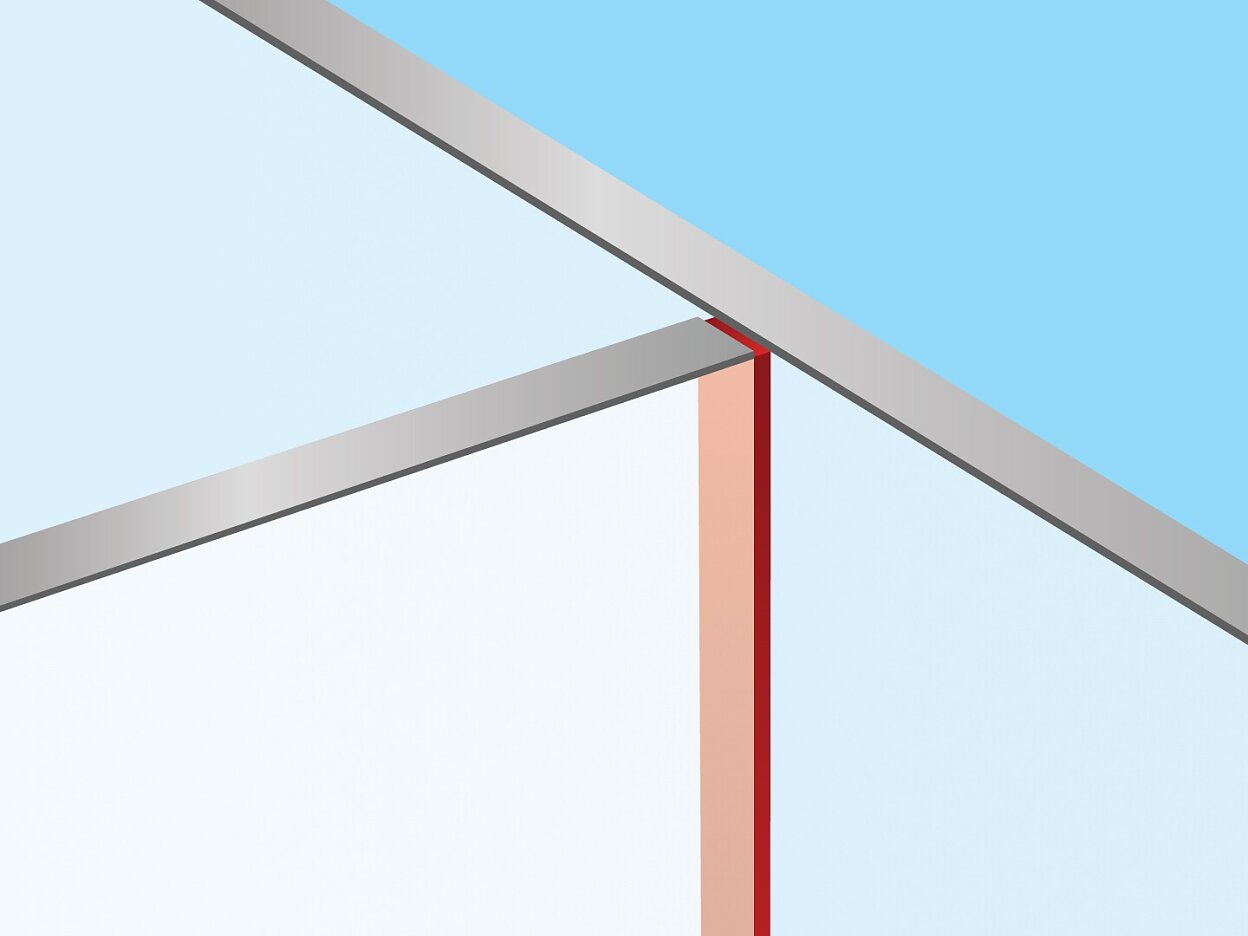

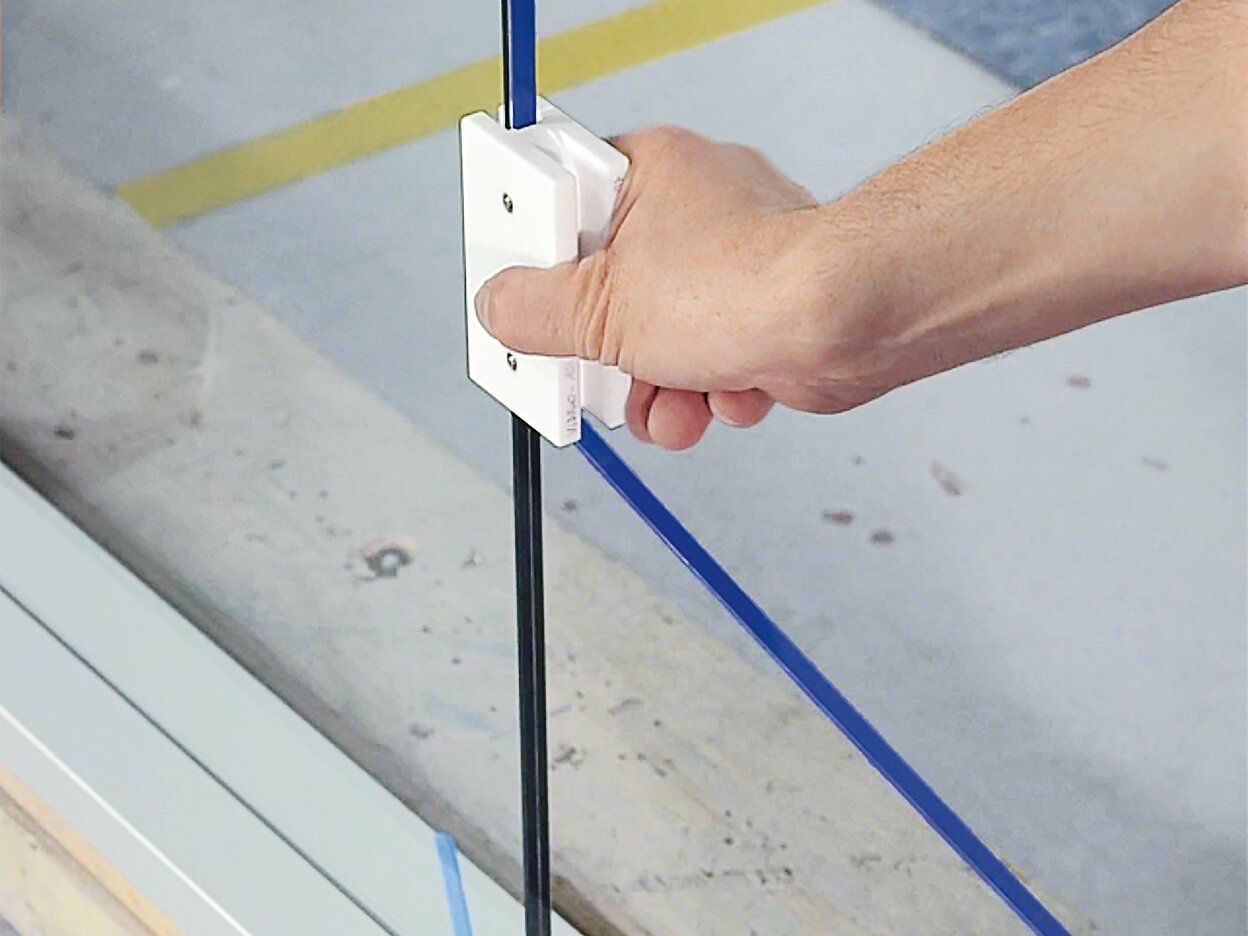

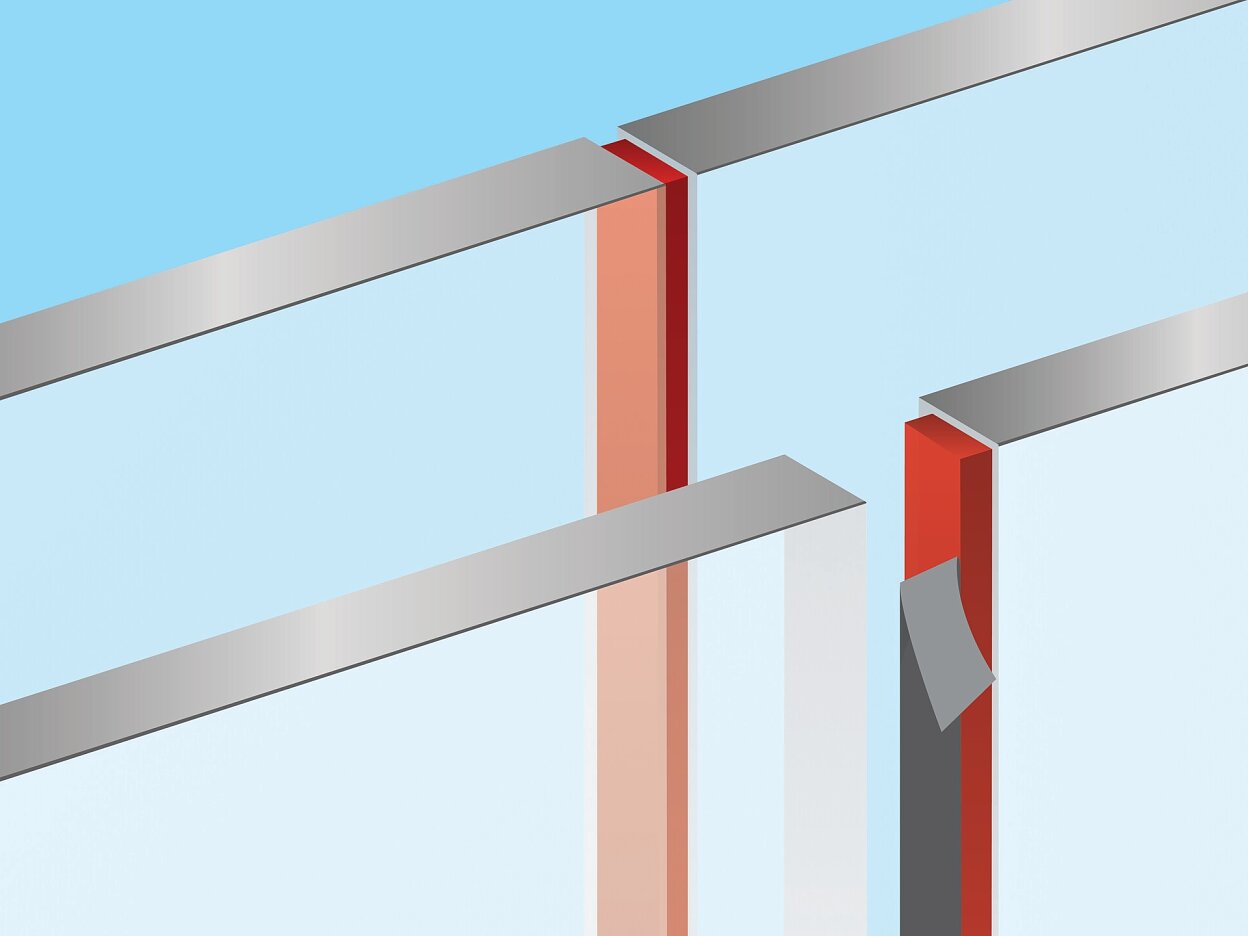

Partition walls (glass to glass)

Backing material	solid acrylic
Colour	transparent
Total thickness	3,000 µm
Type of adhesive	pure acrylic
Type of liner	PE

Adhesion to Steel (initial)	16 N/cm
Adhesion to Steel (after 14 days)	30 N/cm
Adhesion to Steel (after 3 days)	30 N/cm

For more technical data please click on the following link to open our technical information sheet:
https://www.tesa.com/ACXplus/TI-sheet
The product is recommended for indoor and outdoor usage. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation.
Liner options:
• PV28: Blue film liner – unbranded
• PV48: White film liner – branded

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 75530_en-GB 60.7 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 75530	tesa® ACXplus 7255 Multi Purpose (MP)	tesa® ACXplus 7254 Multi Purpose (MP)	tesa® ACXplus 7046	tesa® ACXplus 7076 High Resistance	tesa® ACXplus 7054 High Transparency	tesa® ACXplus 7048	tesa® ACXplus 70740 High Resistance	tesa® ACXplus 7074	tesa® ACXplus 7065 High Adhesion	tesa® ACXplus 7043	tesa® ACXplus 7042
Total thickness	3,000 µm	1,000 µm	500 µm	1,500 µm	1,500 µm	500 µm	2,000 µm	3,900 µm	1,000 µm	1,200 µm	640 µm	500 µm
Type of adhesive	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic
Backing material	solid acrylic	solid acrylic	solid acrylic	filled acrylic	foamed acrylic	solid acrylic	filled acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	filled acrylic
Adhesion to Steel (initial)	16 N/cm	14 N/cm	11 N/cm		18 N/cm			14 N/cm	16 N/cm	30 N/cm	17 N/cm	16 N/cm
Adhesion to Steel (after 14 days)	30 N/cm	24 N/cm	19 N/cm		34 N/cm			38 N/cm	33 N/cm	48 N/cm	29 N/cm	24 N/cm
Colour	transparent	transparent	transparent		black	transparent		black	black	black

Last updated on 16 Apr 2024
