Additional Info
Liner variants:
PV0 brown glassine (69 μm)
Peel Adhesion:
- initial and after 14 days: foam splitting on Steel and PP
PV0 brown glassine (69 μm)
Peel Adhesion:
- initial and after 14 days: foam splitting on Steel and PP
tesa® 64912 PV0
Double-sided PE foam tape
Product Features
- High initial adhesion to LSE and MSE surfaces without primer
- Near to ultimate peel adhesion level right after application
- Good performance at an application temperature as low as 5°C
Product description
Primer process is annoying but essential for many suppliers in the Automotive Industries nowadays!
The introduction of tesa® 64912 can help our customers eliminate the primer in the process1!
tesa® 64912 is a double-sided PE-foam tape. Its high performance adhesive enables primerless bonding of Low Surface Energy (LSE) and Medium Surface Energy (MSE) substrates.
Features:
- High initial performance to LSE and MSE surfaces without primer
- Reach ultimate peel adhesion level right after application
- Superior peel adhesion on PP substrates, even at an application temperature down to 5 °C
- Reliable performance at higher temperature
- Highly conformable and gap filling
- Excellent converting properties
Benefits:
- Eliminate the primer in the production process
- Enable a much more efficient and robust application
- Skip the pre-heating of tape in winter time
- Realise a healthier working condition
- Reach a more environmental friendly production
(*) For glass and soft EPDM substrates primer is still needed.
Product details and specifications
Product Features
- High initial adhesion to LSE and MSE surfaces without primer
- Near to ultimate peel adhesion level right after application
- Good performance at an application temperature as low as 5°C
- Conformable foam backing to compensate design tolerances or uneven surfaces
- Reliable performance at higher temperatures
- Excellent converting properties
Application Fields
Developed for permanent mounting of similar and / or dissimilar plastic parts, tesa® 64912 can be widely used for mounting applications of smaller parts. Such as permanent mounting of
- park distance sensor bracket
- entry trim
- interior decorative trim

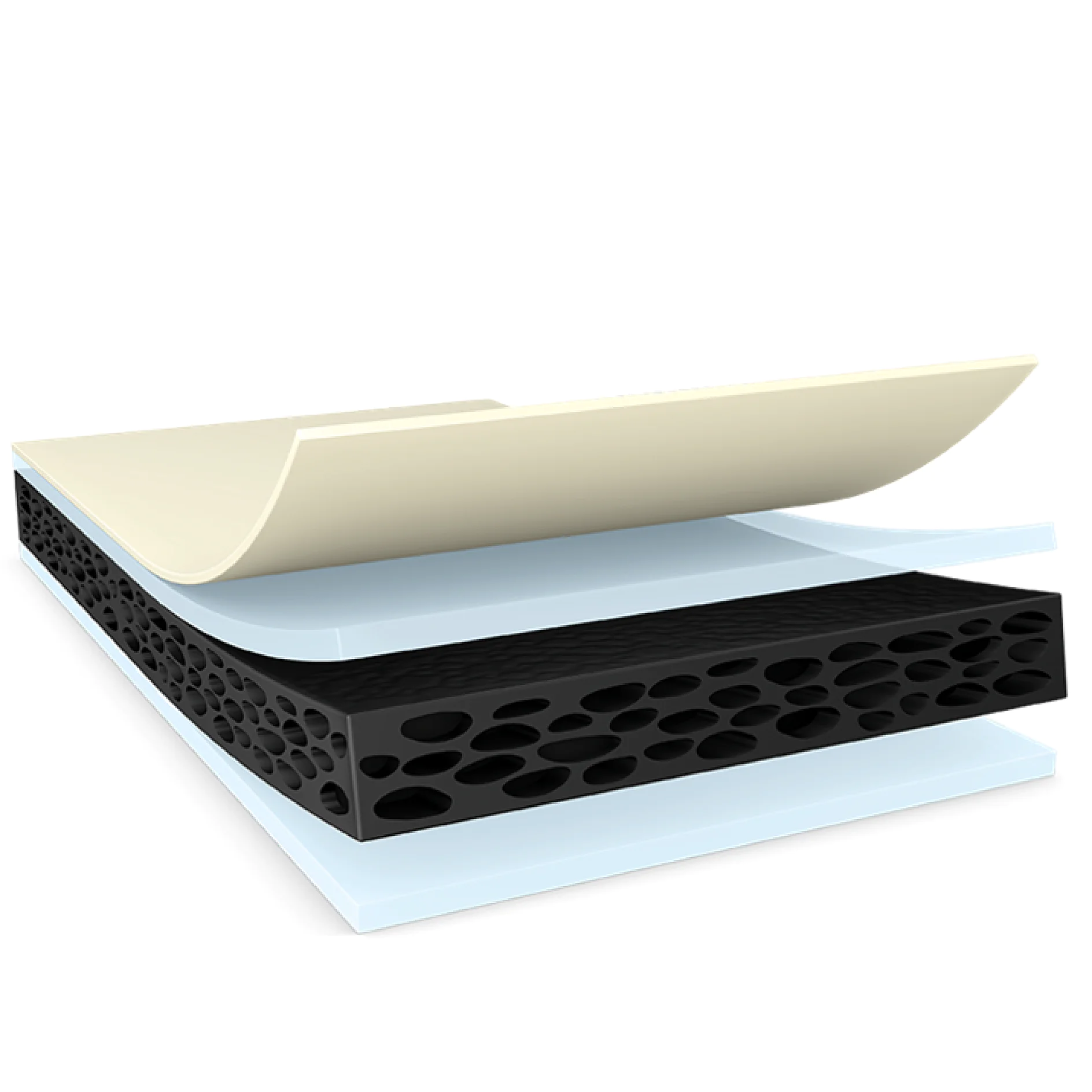

Product Construction
| Backing material | PE foam |
|---|---|
| Colour | black |
| Colour of liner | brown |
| Thickness of liner | 69 µm |
| Total thickness | 1,200 µm |
| Type of adhesive | specialty |
| Type of liner | glassine |
Product Construction
| Backing material | PE foam |
|---|---|
| Colour | black |
| Colour of liner | brown |
| Thickness of liner | 69 µm |
| Total thickness | 1,200 µm |
| Type of adhesive | specialty |
| Type of liner | glassine |
Properties / Performance Values
| Elongation at break | 400 % |
|---|---|
| Tensile strength | 13 N/cm |
Properties / Performance Values
| Elongation at break | 400 % |
|---|---|
| Tensile strength | 13 N/cm |
Adhesion to Values
| Adhesion to PP (initial) | 20 N/cm |
|---|---|
| Adhesion to PP (after 14 days) | 20 N/cm |
| Adhesion to Steel (initial) | 20 N/cm |
| Adhesion to Steel (after 14 days) | 20 N/cm |
Adhesion to Values
| Adhesion to PP (initial) | 20 N/cm |
|---|---|
| Adhesion to PP (after 14 days) | 20 N/cm |
| Adhesion to Steel (initial) | 20 N/cm |
| Adhesion to Steel (after 14 days) | 20 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
