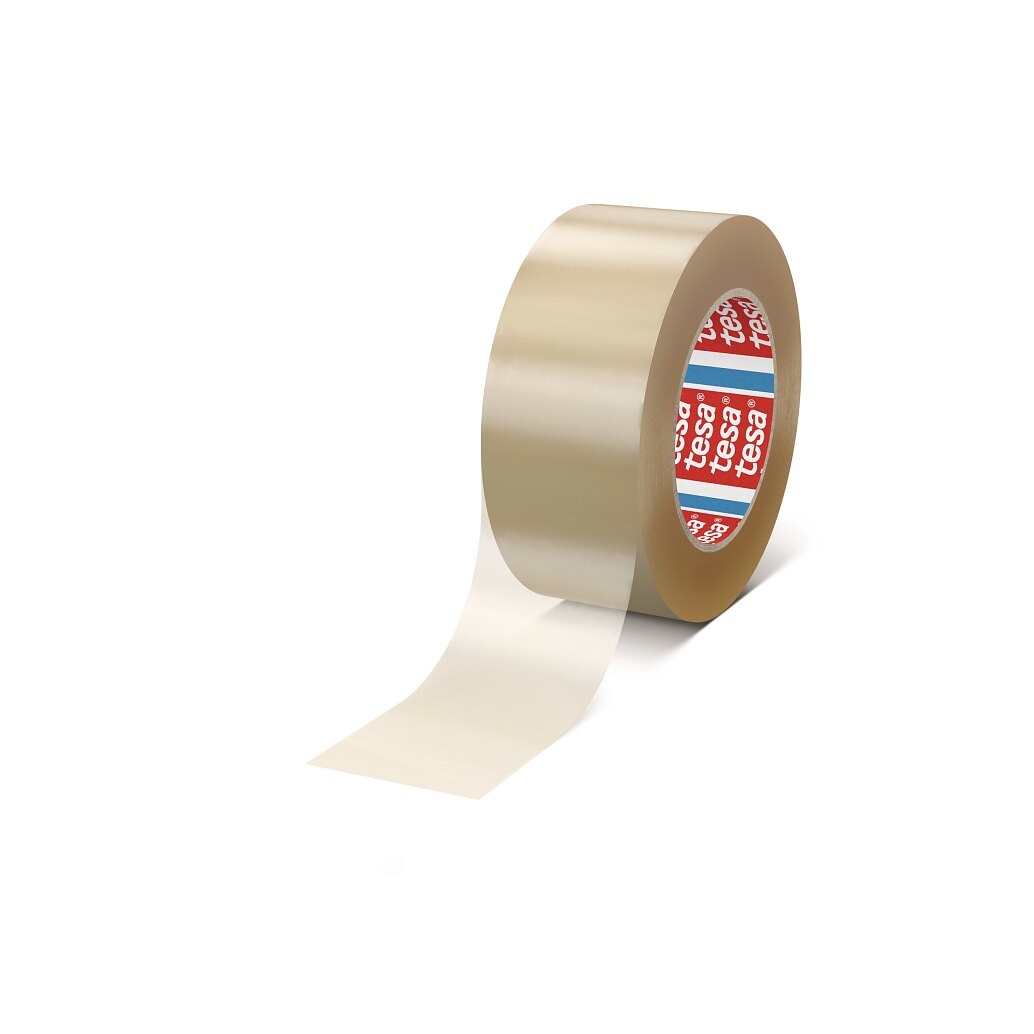

tesa® 58420

Highly ageing-resistant backboard splicing tape

Product description

tesa® 58420 is a transparent PET-based filmic tape with a modified acrylic adhesive. It is highly ageing resistant even under extreme ambient conditions such as high or low temperature or high humidity. tesa® 58420 exhibits excellent initial tack and final adhesion especially on rough surfaces such as MDF or HDF.

Resistance to tear propagation in longitudinal direction is essential for backboard splicing applications. The PET backing redirects any tear into cross direction and thereby ensures a stable splice while being thin and conformable.

tesa® 58420 is well suited for the use in automated applicators and is available in long length rolls.

Product details and specifications

Application Fields

Splicing for backboards in the furniture industry, e.g. backboards for

kitchen cabinets
wardrobes
cupboards
shelves

Backing material	PET film
Colour	transparent
Total thickness	105 µm
Type of adhesive	tackified acrylic

Backing material	PET film
Colour	transparent
Total thickness	105 µm
Type of adhesive	tackified acrylic

Elongation at break	200 %
Tensile strength	81 N/cm

Elongation at break	200 %
Tensile strength	81 N/cm

Adhesion to steel	8.5 N/cm

Adhesion to steel	8.5 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 58420_en-GB_v11 131.2 kB Product information_tesa® 58420_en-GB 51.9 kB

Contact us

Thank you for your message.

We will conctact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 58420	tesa® 4287 EU PV10	tesa® 4287 EU PV11	tesa® 4298	tesa® 4298	tesa® 50050 High Load	tesa® 53393	tesa® 4298	tesa® 4298	tesa® 4224 PV10	tesa® 64283 EU PV11
Total thickness	105 µm	80 µm	85 µm	114 µm	116 µm	125 µm	170 µm	116 µm	116 µm	79 µm	85 µm
Type of adhesive	tackified acrylic	synthetic rubber	synthetic rubber	natural rubber	natural rubber	synthetic rubber	synthetic rubber	natural rubber	natural rubber	synthetic rubber	synthetic rubber
Backing material	PET film	MOPP	MOPP	MOPP	MOPP	MOPP	glassfibre / PET film	MOPP	MOPP	MOPP	MOPP
Adhesion to steel	8.5 N/cm	6 N/cm	6 N/cm	5 N/cm	6.7 N/cm	7 N/cm	7 N/cm	6.7 N/cm	6.7 N/cm	6 N/cm	6 N/cm
Elongation at break	200 %	35 %	35 %	35 %	32.5 %	25 %		32.5 %	32.5 %	35 %	35 %
Colour	transparent	orange	orange	blue						white	blue
Residue free removal			yes	yes	yes			yes	yes	yes	yes
