tesa® 54335 Exterior Performance Sealer

The Exterior High Performance Sealer for permanent hole covering applications

Product description

tesa® 54335 combines a strong PET layer with an extra thick acrylic adhesive sealer. This product is optimised for the automotive industry to cover unused exterior holes that require excellent paint anchorage, perfect sealing and best stone chipping protection even under harsh outdoor conditions.

Features:

Reliable corrosion protection as e.g. punch burrs will be securely sealed by 800μm adhesive layer
Excellent stone chipping protection even at lowest temperature
High temperature resistance up to 160°C
Very good paint and UBC (PVC) compatibility
Reduces and absorbs noise regardless of the hole size to enhance the acoustic comfort while driving
Secure adhesion on painted substrates and on reinforced plastic substrates in automotive lightweight constructions, e.g. CFRP

Product details and specifications

Application Fields

tesa® 54335 is especially designed for permanent covering of exterior holes that are directly exposed to the environment. It can withstand stone chipping and seals holes securely against water leakage and corrosion. Due to the unique etched PET backing it's suitable even for A-class surfaces.

After e-coat where a good compatibility to UBC (PVC) and sealant is required, e.g. car body platform, wheel houses, engine compartment
Before paint shop where good paint compatibility is essential
At the assembly line for exterior hole covering on all car body areas, e.g. pillars, rocker, front/rear floor

Backing material	PET
Colour	grey
Total thickness	990 µm
Type of adhesive	modified acrylic
Type of liner	PE-coated paper

Backing material	PET
Colour	grey
Total thickness	990 µm
Type of adhesive	modified acrylic
Type of liner	PE-coated paper

Area weight	900 g/m²
Sealing performance (IPX7 acc. ISO 20653:2023-08)	yes
Puncture resistance	1000 N
Noise damping	good

Area weight	900 g/m²
Sealing performance (IPX7 acc. ISO 20653:2023-08)	yes
Puncture resistance	1000 N
Noise damping	good

Adhesion to steel	12 N/cm

Adhesion to steel	12 N/cm

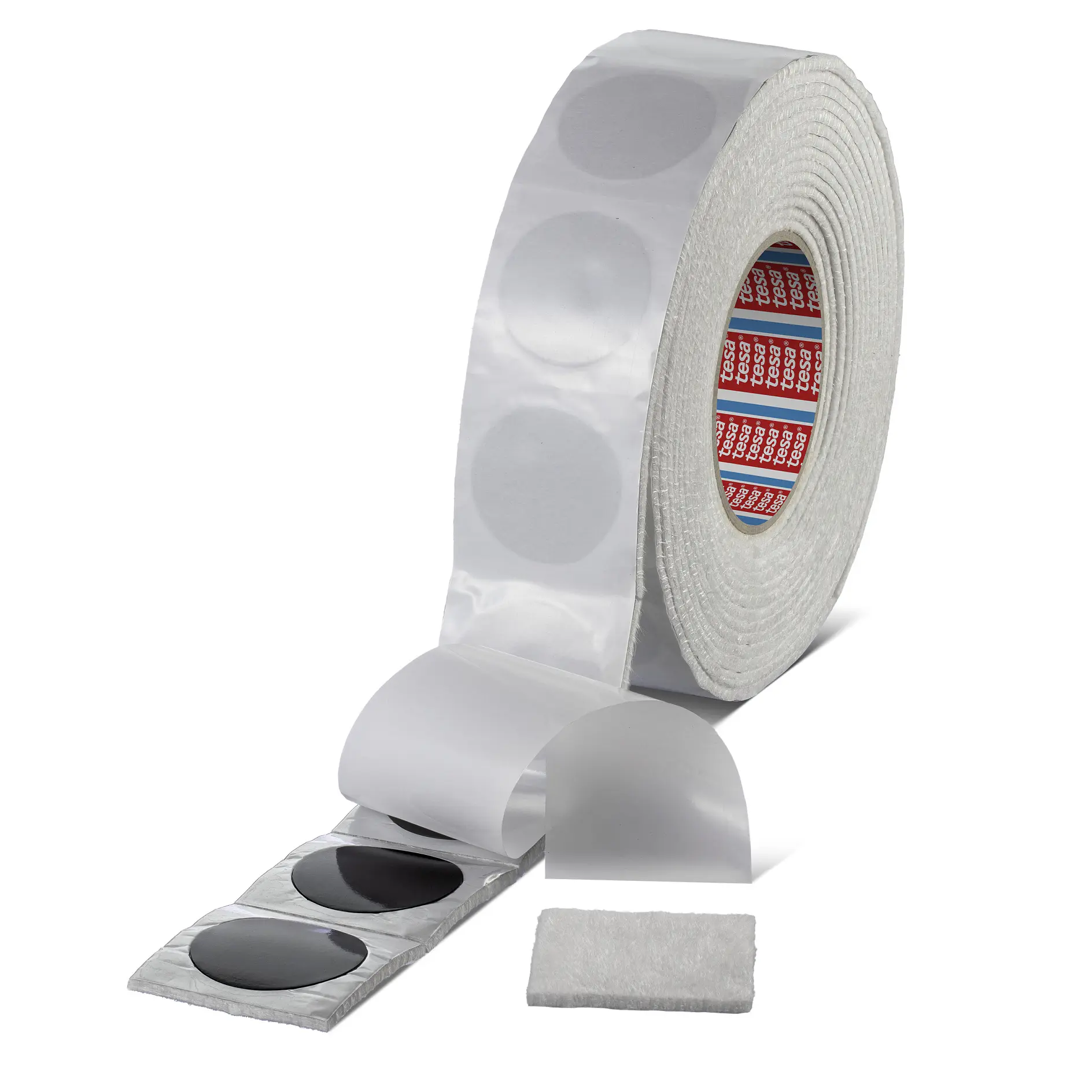

tesa® 54335 can be supplied as standardised die-cut rolls in these dimensions:
30mm circle or square
40mm circle or square

Customer specific dimensions can be delivered according to customer requirements and applications in either roll or sheet form.

tesa’s automation and application solution department provides customised equipment and self-designed application tools to enhance productivity.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 54335_en-GB_v7 131 kB Product information_tesa® 54335_en-GB 62 kB

Contact us

Thank you for your message.

We will conctact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 54335 Exterior Performance Sealer	tesa® 54338	tesa® 54349 90% PCR PET	tesa® 54485 Fireman Access	tesa® 54715 Noise Blocker Standard	tesa® 6042 ProSeal	tesa® 54336 flexible and temperature resistant	tesa® 54335 PunctureGuard	tesa® 54321	tesa® 54332 FireGuard	tesa® 4848 PV1
Total thickness	990 µm	95 µm	260 µm	9690 µm	1140 µm		450 µm	690 µm	690 µm	1010 µm	48 µm
Type of adhesive	modified acrylic	modified acrylic	modified acrylic	modified acrylic	modified acrylic		modified acrylic	modified acrylic	tackified acrylic	modified acrylic	acrylic
Backing material	PET	PET film	PET	glassfibre / PET film	polyolefin		PET	PET	PET fleece	aluminium laminated glasscloth	PE film
Colour	grey	transparent	transparent	white	grey	colourless	black	grey	white	silver
