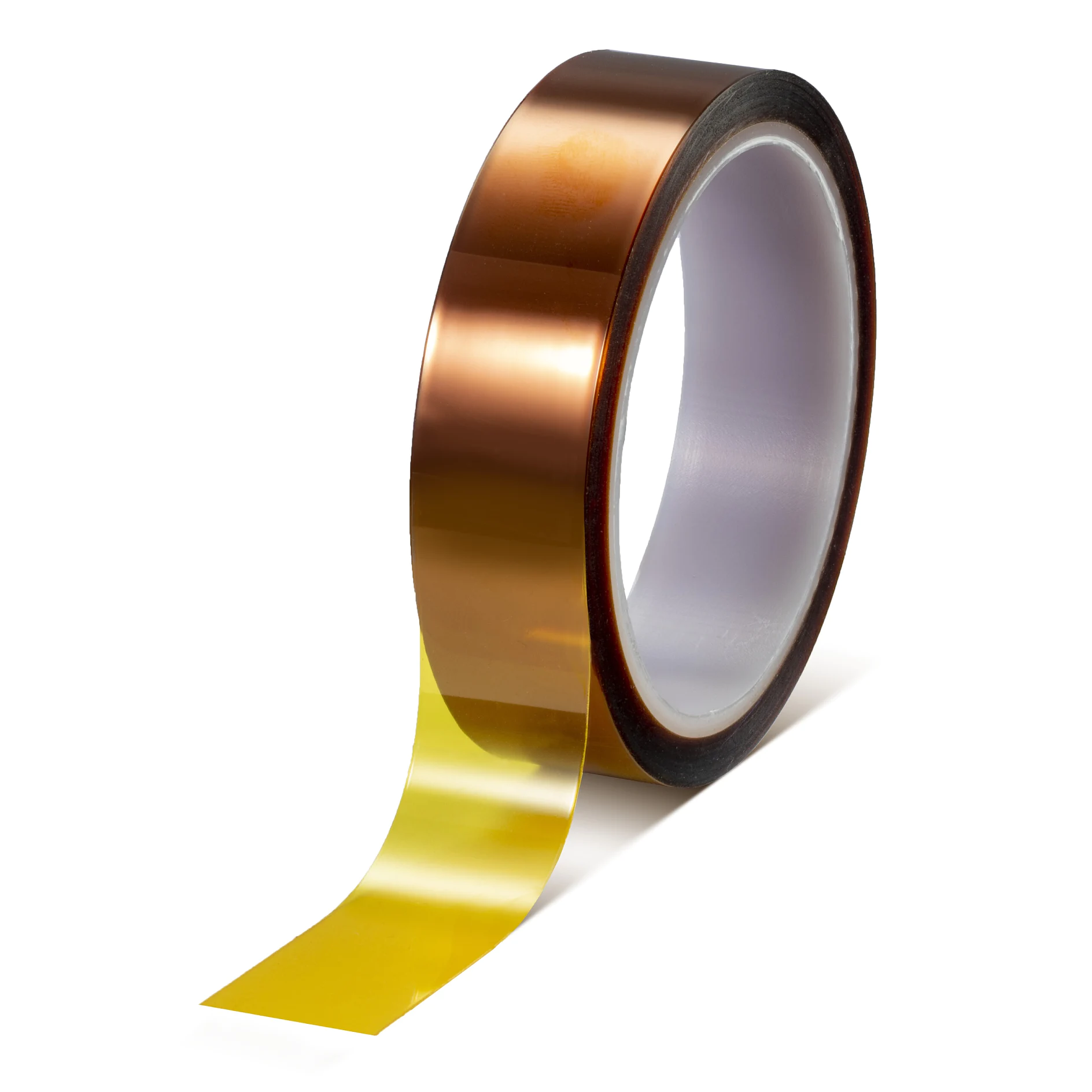

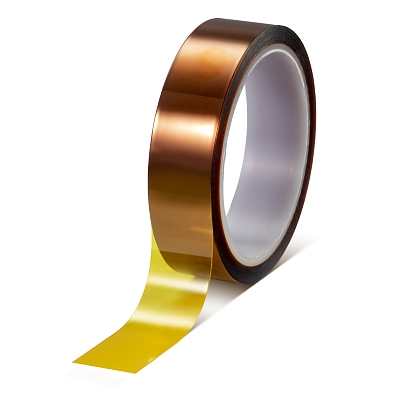

tesa® 51408

Flame retardant Kapton® high grade Masking Tape


Product Features
  • High temperature resistance (up to 260°C)
  • Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
  • High chemical resistance and dielectric strength
All product features
Product description

tesa® 51408 (Kapton® backing with silicone adhesive) is a highly temperature-resistant and high grade adhesive tape


Product details and specifications

Product Features

  • High temperature resistance (up to 260°C)
  • Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
  • High chemical resistance and dielectric strength
  • Residue-free removability for masking applications

Application Fields

tesa® 51408 can withstand high temperatures for limited periods of time
(250°C/ 482 F = 1.000 hours, 350°C/ 662 F = 10 hours).
Backing material Polyimide
Total thickness 65 µm
Type of adhesive silicone
Elongation at break 70 %
Tensile strength 46 N/cm
Dielectric breakdown voltage 6,000 V
Insulation class H
Adhesion to steel 2.8 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 51408 tesa® 4331 tesa® 50620 tesa® 61124 tesa® 50600 Standard tesa® 51407 tesa® 50650 Conformable tesa® 4831 tesa® 61126 tesa® 50625 tesa® 4338 PV1
Total thickness
65 µm
110 µm
70 µm
60 µm
80 µm
62 µm
55 µm
125 µm
125 µm
50
145 µm
Type of adhesive
silicone
silicone
silicone
silicone
silicone
silicone
silicone
acrylic
silicone
silicone
natural rubber
Backing material
Polyimide
PET / non-woven
PET
PETP
PET
Polyimide
PETP
PET / non-woven
PETP
PET
slightly-creped paper
Adhesion to steel
2.8 N/cm
4 N/cm
3.6 N/cm
3.5 N/cm
4 N/cm
2.5 N/cm
3.3 N/cm
3.5 N/cm
4.3 N/cm
3.2 N/cm
4 N/cm
