tesa® 4934
Double-sided fabric tape
Product Features
- The synthetic rubber adhesive is solvent free.
- tesa® 4934 is a general purpose mounting tape.
- tesa® 4934 is easily hand tearable.
Product description

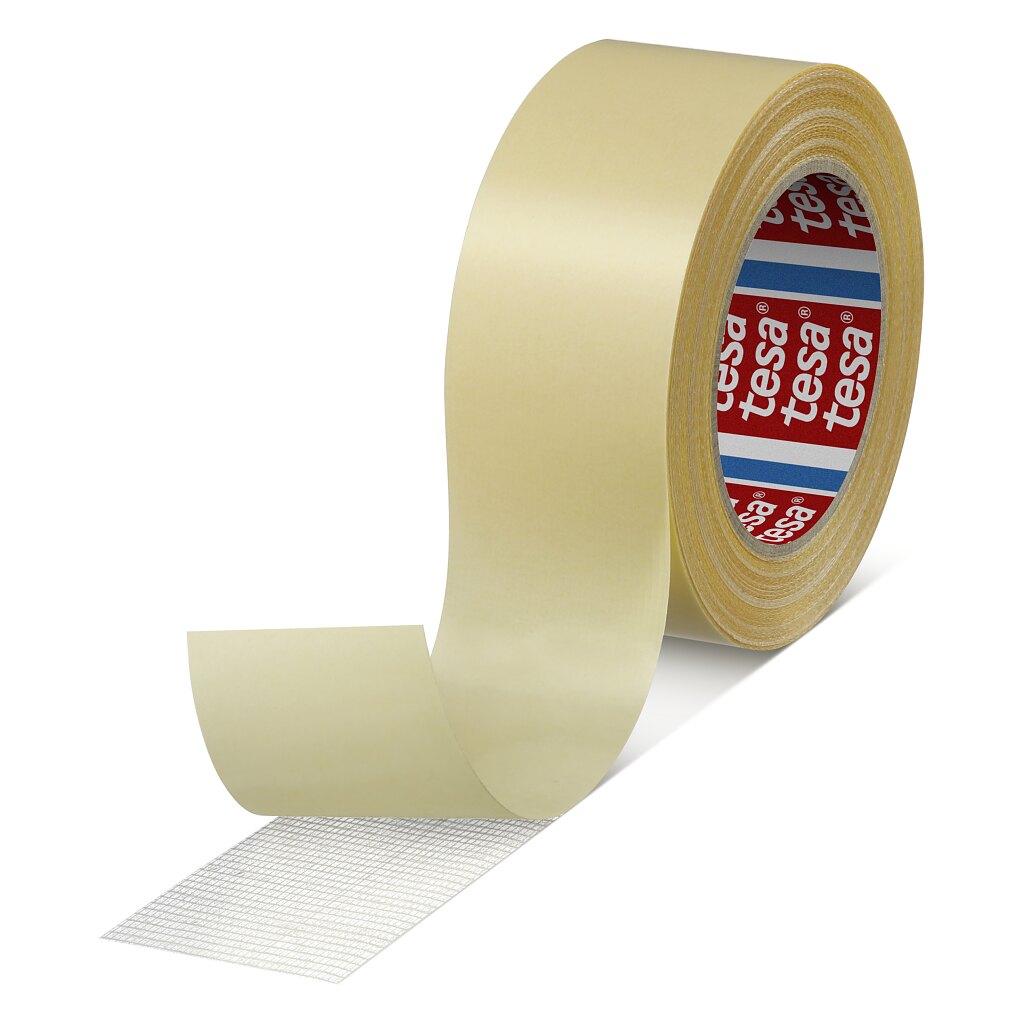

tesa® 4934 is a double-sided tape. It consists of a fabric backing with a thick, tacky adhesive coating. The synthetic rubber adhesive is solvent free.
tesa® 4934 is a general purpose mounting tape.
tesa® 4934 is easily hand tearable.
Product details and specifications
Product Features
- The synthetic rubber adhesive is solvent free.
- tesa® 4934 is a general purpose mounting tape.
- tesa® 4934 is easily hand tearable.
Application Fields
Due to the flexible fabric backing and the high coating weight it is particularly suited for mounting on rough, fibrous surfaces, for example carpet laying.
Product Construction
| Backing material | cloth |
|---|---|
| Colour | white |
| Total thickness | 200 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | glassine |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 35 N/cm |
| Static shear resistance at 70°C | low |
| Ageing resistance (UV) | medium |
| Fogging | very good |
| Humidity resistance | good |
| Tack | very good |
| Static shear resistance at 40°C | very good |
| Temperature resistance long term duration | 40 °C |
| Static shear resistance at 23°C | medium |
| Temperature resistance short term duration | 60 °C |
Adhesion to Values
| Adhesion to PE (initial) | 8 N/cm |
|---|---|
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to PP (initial) | 16 N/cm |
| Adhesion to PP (after 14 days) | 24.5 N/cm |
| Adhesion to PVC (initial) | 14 N/cm |
| Adhesion to PVC (after 14 days) | 22.5 N/cm |
| Adhesion to Steel (initial) | 14.5 N/cm |
| Adhesion to Steel (after 14 days) | 24 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
