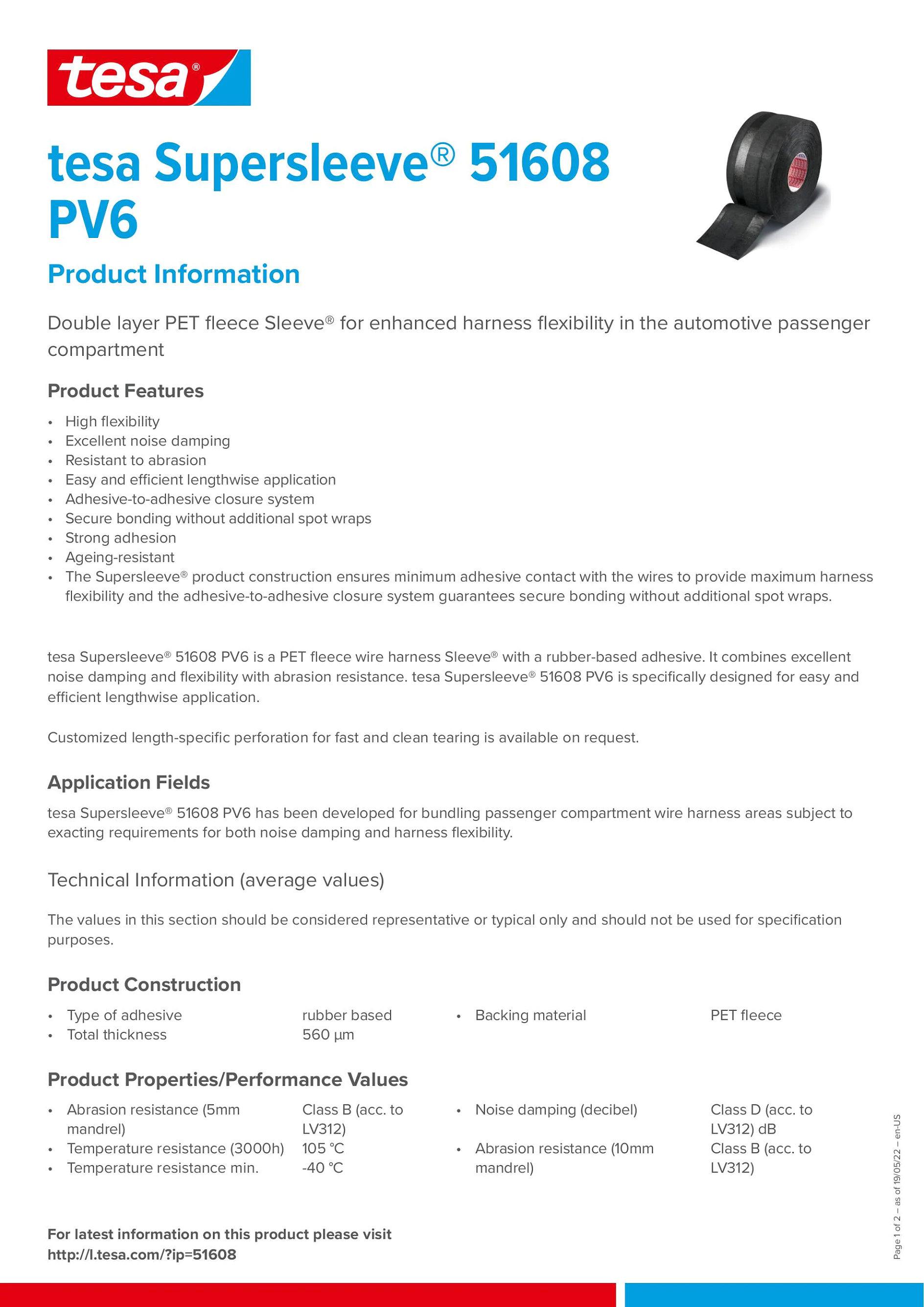

PDF – 36.6 kB
tesa Supersleeve® 51608 PV6
Double layer PET fleece Sleeve® for enhanced harness flexibility in the automotive passenger compartment
Product description
tesa Supersleeve® 51608 PV6 is a PET fleece wire harness Sleeve® with a rubber-based adhesive. It combines excellent noise damping and flexibility with abrasion resistance. tesa Supersleeve® 51608 PV6 is specifically designed for easy and efficient lengthwise application.The Supersleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps. Customized length-specific perforation for fast and clean tearing is available on request.
Main features:
- High flexibility
- Excellent noise damping
- Resistant to abrasion
- Easy and efficient lengthwise application
- Adhesive-to-adhesive closure system
- Secure bonding without additional spot wraps
- Strong adhesion
- Ageing-resistant
Main applications
tesa Supersleeve® 51608 PV6 has been developed for bundling passenger compartment wire harness areas subject to exacting requirements for both noise damping and harness flexibility.Technical properties
Type of adhesive
rubber based
Abrasion resistance (5mm mandrel)
Class B (acc. to LV312)
Temperature resistance min.
-40 °C
Temperature resistance (3000h)
105 °C
Total thickness
560 µm
Backing material
PET fleece
Adhesion to steel
3 N/cm
Flame resistance as composite
Class B (acc. to LV 312)
Noise damping (decibel)
Class D (acc. to LV312)
Abrasion resistance (10mm mandrel)
Class B (acc. to LV312)
Additional Info
Standard widths: 67, 85, 100, 115, 130, 145, 160, 180, 195 mmStandard lengths: 50 m
- Most combinations of width and length are possible
- Standard perforation length: 100-940 mm (in increments of 10 mm)
- Further dimensions are available on request
Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
- Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
