tesa® flameXtinct 45065

1200µm double-sided flame retardant acrylic core tape

Product Features

flame retardant according to FAR 25.853(a) app. F part1 and UL 94 V-2

Product description

The tesa^® flameXtinct 4506x series is designed for applications where a flame retardant requirement of the tape or the building component is required. The acrylic core allows for the compensation of thermal elongation and good adhesion on different substrates.

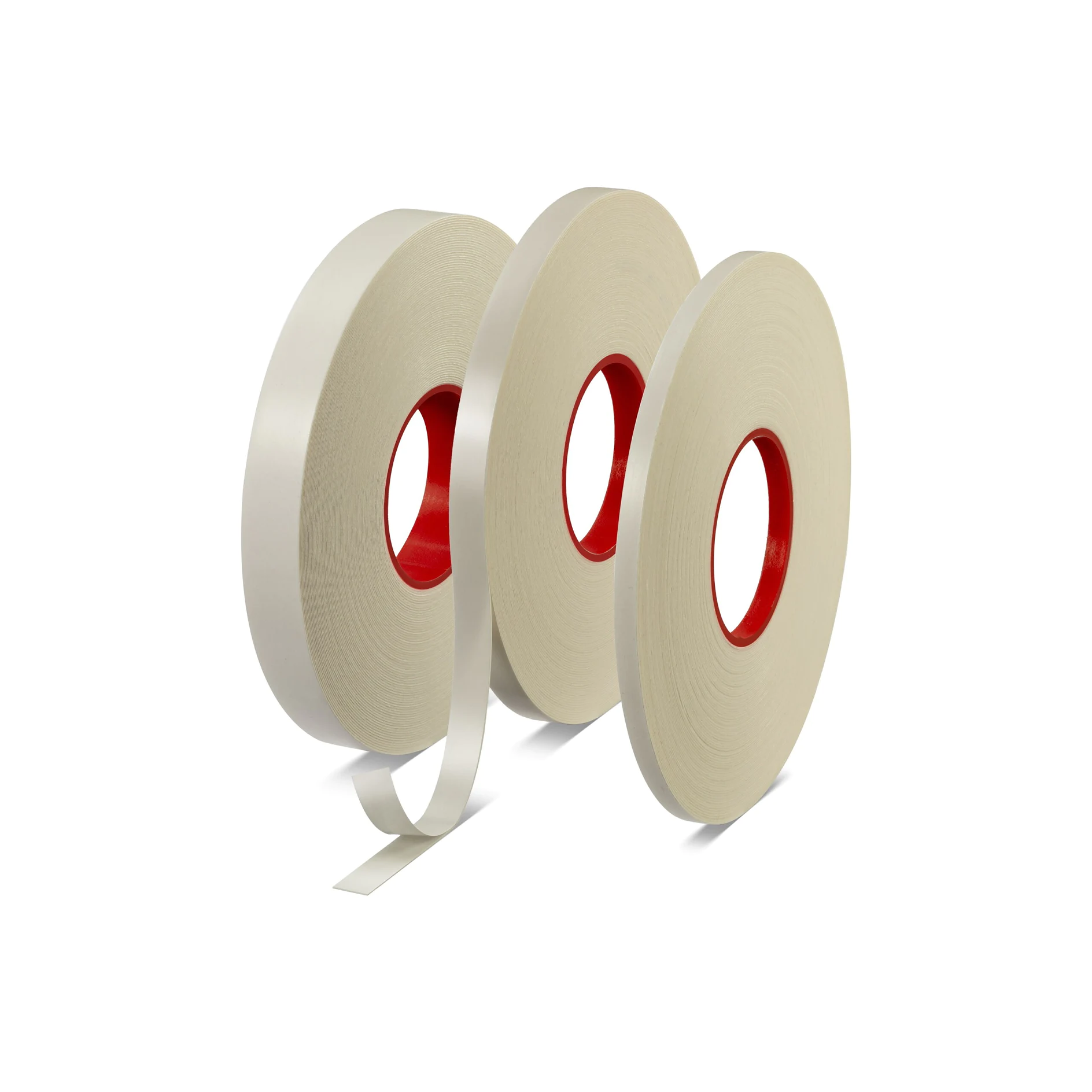

tesa^® flameXtinct 45063 is part of the tesa^® flameXtinct family which includes a double-sided PE foam, a thin filmic and three non-woven tapes. This assortment is clearly defined by the following characteristics:

Flame retardant
Halogen-free
High performance adhesive
Wide product portfolio

Product details and specifications

Product Features

flame retardant according to FAR 25.853(a) app. F part1 and UL 94 V-2

Application Fields

Possible for mounting applications in different industries:

Windows & doors
Elevator
Transportation
Marine
Automotive

Adhesive Type	acrylic
Backing material	filled acrylic
Color	white
Liner Type	PE-coated paper
Total thickness	1,200 µm

Temperature resistance long term	100 °C
Temperature resistance short term	200 °C

Adhesion to ABS (initial)	22 N/cm
Adhesion to ABS (after 14 days)	28 N/cm
Adhesion to PP (initial)	5 N/cm
Adhesion to PP (after 14 days)	6 N/cm
Adhesion to Steel (initial)	21 N/cm
Adhesion to Steel (after 14 days)	37 N/cm
Adhesion to Steel (after 3 days)	37 N/cm

For more technical data please click on the following link to open our technical information sheet:
https://www.tesa.com/ACX^plus/TI-sheet
The product is recommended for indoor and outdoor usage. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation.
Liner options:

PV26: white PE-coated paper liner

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® flameXtinct 45065_en 60 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® flameXtinct 45065	tesa® ACXplus 6812 Black Line	tesa® ACXplus 7255 Multi Purpose (MP)	tesa® ACXplus 7254 Multi Purpose (MP)	tesa® ACXplus 7076	tesa® ACXplus 7054	tesa® ACXplus 7048	tesa® ACXplus 70740	tesa® ACXplus 7074	tesa® ACXplus 7065	tesa® ACXplus 7043	tesa® ACXplus 7042
Total thickness	1,200 µm	1,200 µm	1,000 µm	500 µm	1,500 µm	500 µm	2,000 µm	3,900 µm	1,000 µm	1,200 µm	640 µm	500 µm
Adhesive Type	acrylic	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic
Backing material	filled acrylic	foamed acrylic	solid acrylic	solid acrylic	foamed acrylic	solid acrylic	filled acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	filled acrylic
Adhesion to Steel (initial)	21 N/cm	20 N/cm	14 N/cm	11 N/cm	18 N/cm			14 N/cm	16 N/cm	30 N/cm	17 N/cm	16 N/cm
Adhesion to Steel (after 14 days)	37 N/cm		24 N/cm	19 N/cm	34 N/cm			38 N/cm	33 N/cm	48 N/cm	29 N/cm	24 N/cm
Color	white	deep black	transparent	transparent	black	transparent		black	black	black

Last updated on Apr 16, 2024
