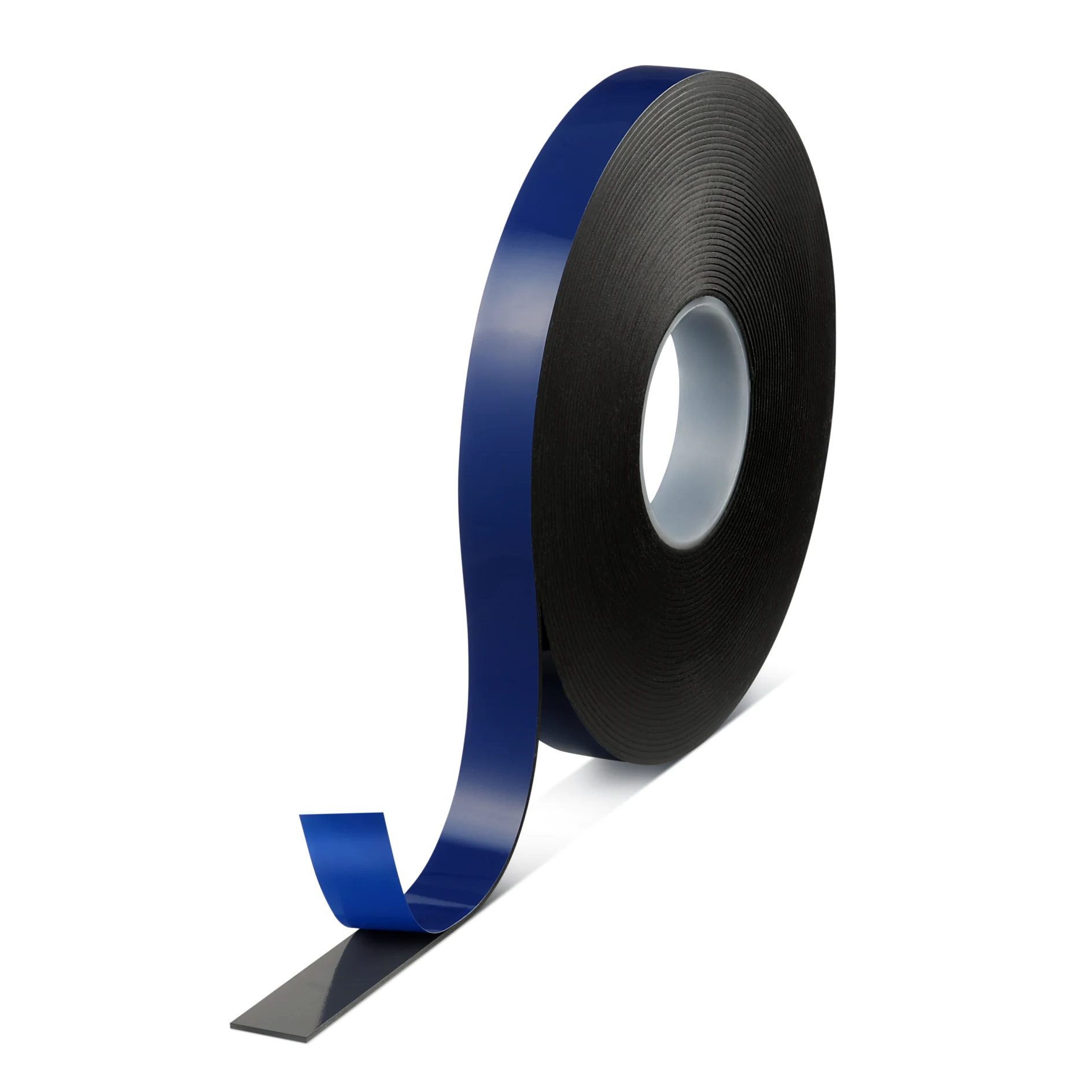

tesa® ACX^plus 70730

2900 µm double-sided acrylic foam tape

Product Features

Due to its thickness ideal for gap filling requirements
Compensation of thermal elongation of different materials

Product description

The tesa® ACX^plus 707xx series is suitable for a wide range of bonding applications. For powerful long-lasting bonds, even on material with different surface characteristics. Three thicknesses are available (2400 µm – 3900µm) and the product is ideal for mounting applications with larger gap filling requirements.
As being part of the tesa® ACX^plus707x product group, tesa® ACX^plus 70730 can compensate thermal elongations of bonded components with temperature cycles from -20 °C to 80 °C.

Product details and specifications

Product Features

Due to its thickness ideal for gap filling requirements
Compensation of thermal elongation of different materials

Application Fields

Exemplary mounting applications in different industries (e.g. windows & doors, elevator, transportation, appliances) include:

Partition Walls (glass-to-glass)

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	black
Total thickness	2900 µm

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	black
Total thickness	2900 µm

Temperature resistance short term	220 °C
Temperature resistance long term	120 °C

Temperature resistance short term	220 °C
Temperature resistance long term	120 °C

Adhesion to Steel (after 3 days)	38 N/cm

Adhesion to Steel (after 3 days)	38 N/cm

For more technical data please click on the following link to open our technical information sheet:
https://www.tesa.com/ACX^plus/TI-sheet
The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACX^plus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation.
Liner options:

PV24: Blue film liner - unbranded

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
