Product Construction
| Adhesive Type | water-based acrylic |
| Backing material | PET cloth |
| Total thickness | 250 µm |

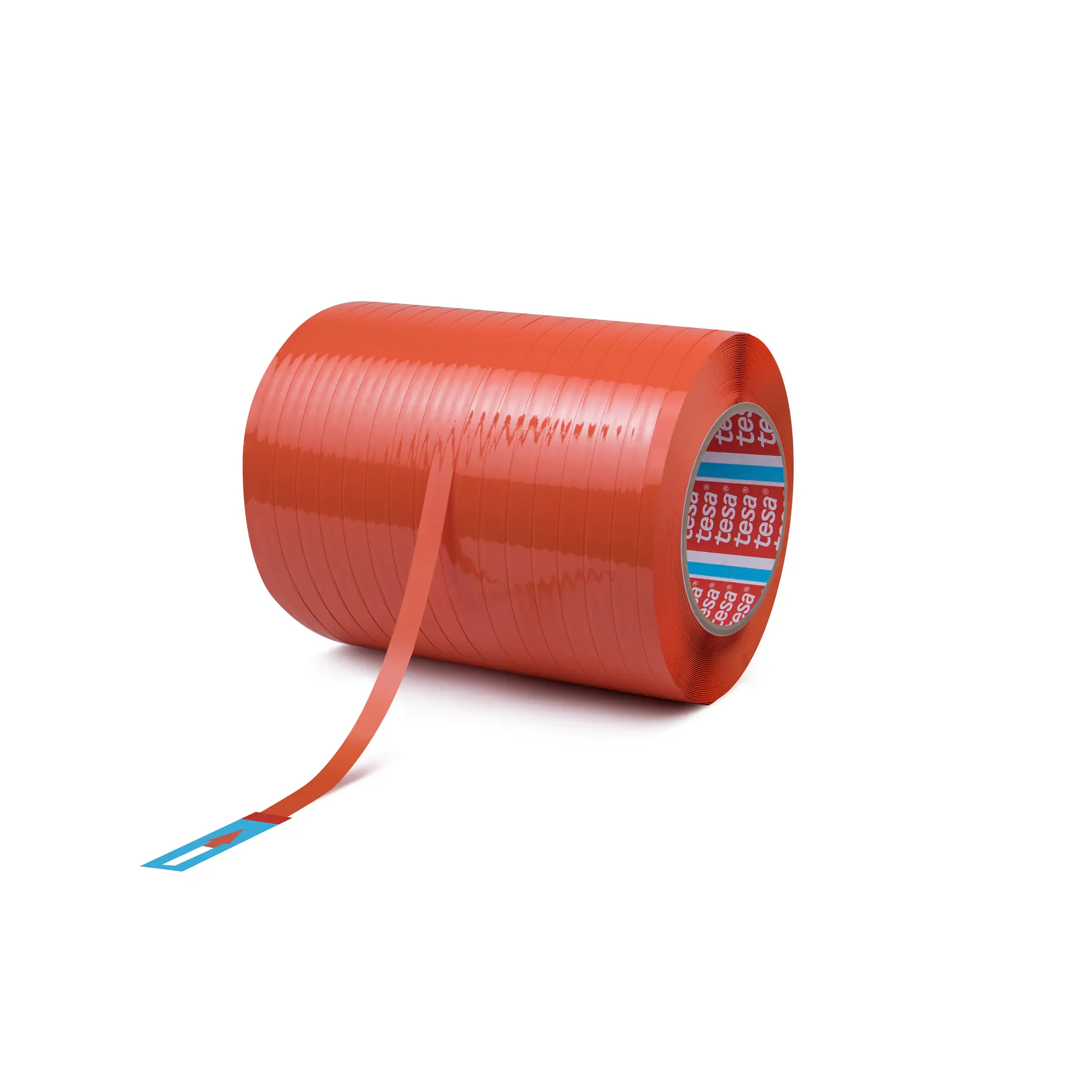

tesa® 88103 Orange PET Cloth Spool
High abrasion spool for machine wrapping and high voltage cable protection
Product Features
- Available in very long length of more than 2000m and relatively small outer-diameter
- High abrasion and temperature resistance
- Color warning for HV cables
Product description
tesa® 88103 is a flag-resistant PET cloth spool with a waterborne acrylic adhesive.
tesa combines the expected level of quality in the taping process with efficiency by means of high speed during unwinding and cutting as well as long roll length of more than 2,000 meters.
Product details and specifications
Product Features
- Available in very long length of more than 2000m and relatively small outer-diameter
- High abrasion and temperature resistance
- Color warning for HV cables
- Excellent high voltage cable compatibility
- Highly flag resistant
- High temperature resistance of 150 °C
Application Fields
By offering orange spools, tesa® 88103 enables customers to use an automatic process to apply the tape to wire harness systems or other different applications with visual warnings.
Product Construction
| Adhesive Type | water-based acrylic |
| Backing material | PET cloth |
| Total thickness | 250 µm |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Noise damping (LV312) | Class A |
| Temperature resistance max. | 150 °C |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Noise damping (LV312) | Class A |
| Temperature resistance max. | 150 °C |
Adhesion to Values
| Adhesion to Steel | 4.9 N/cm |
Adhesion to Values
| Adhesion to Steel | 4.9 N/cm |
Additional Info
- Standard widths: 18mm
- Standard lengths: 2000m, 2400m
- Standard core diameter: 6 inch
- Further dimensions available upon request
Note: Noise Damping and Abrasion Resistance Classification is conducted according to LV 312 standard.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
