Additional Info
- Standard widths: 18mm
- Standard lengths: 2600m
- Standard core diameter: 6 inch
- Further dimensions available upon request

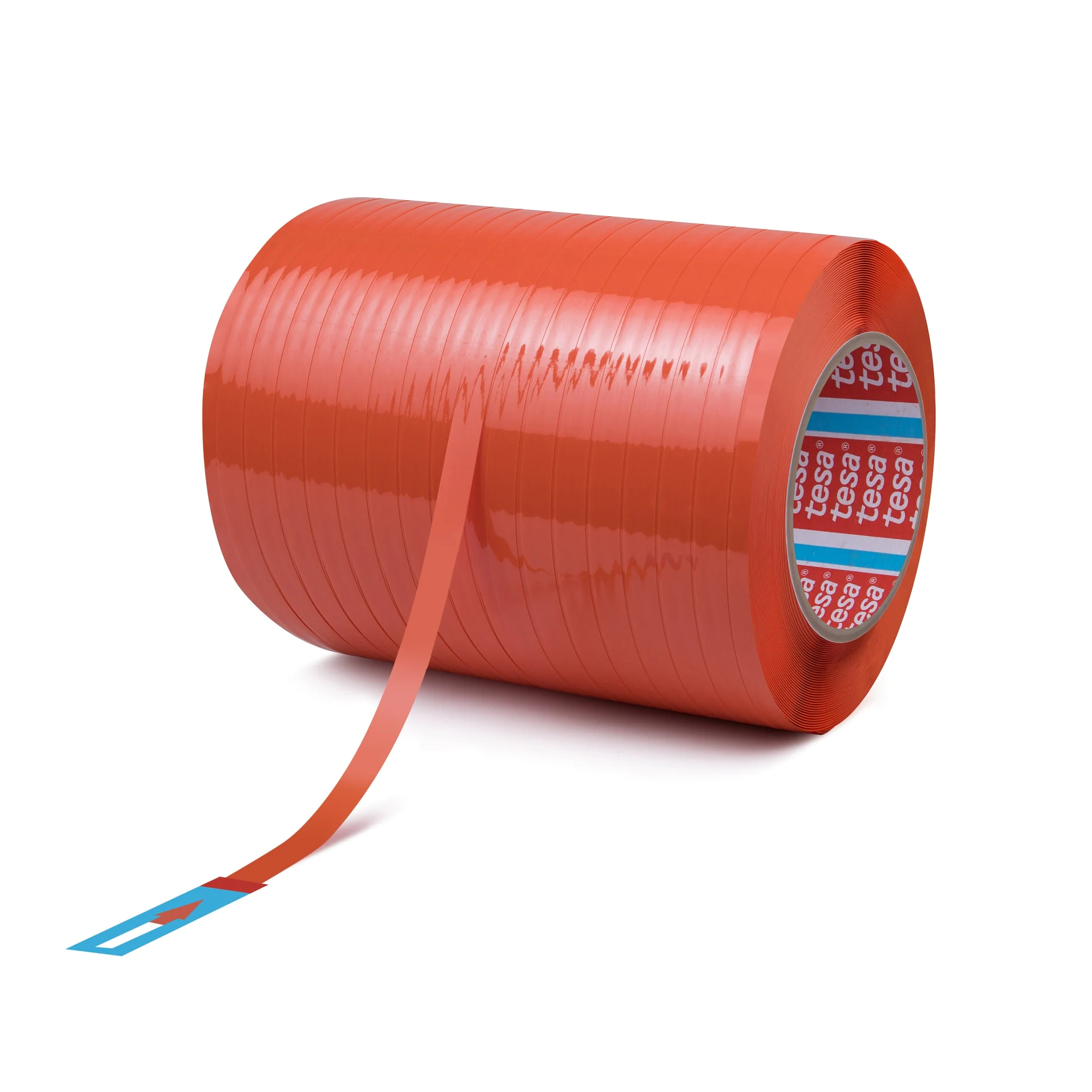

tesa® 88101 PV1 PET Cloth Spool
Automatic production enabler providing D class abrasion resistance for cable protection
Product Features
- More than 2600m roll length and relatively small out-diameter
- Automatic tapping to improve customer efficiency and save labor cost
- High abrasion protection
Product description
tesa® 88101 PV1 is a PET cloth spool with a new waterborne acrylic adhesive that combines high abrasion resistance with efficient taping processing by long roll length of more than 2600m.
Product details and specifications
Product Features
- More than 2600m roll length and relatively small out-diameter
- Automatic tapping to improve customer efficiency and save labor cost
- High abrasion protection
- Excellent cable compatibility
- Low VOC & Low odor
- Available both in Orange and Black color
Application Fields
By offering cloth spools, tesa® 88101 PV1 enables customers to use an automatic process to apply the tape to wire harness systems or other different applications with abrasion protection.
Product Construction
| Adhesive Type | water-based acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 225 µm |
Product Construction
| Adhesive Type | water-based acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 225 µm |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 270 N/cm |
| Temperature resistance min. | -40 °C |
| Temperature resistance max. | 105 °C |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 270 N/cm |
| Temperature resistance min. | -40 °C |
| Temperature resistance max. | 105 °C |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
Adhesion to Values
| Adhesion to Steel | 2.7 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.7 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
