Product description

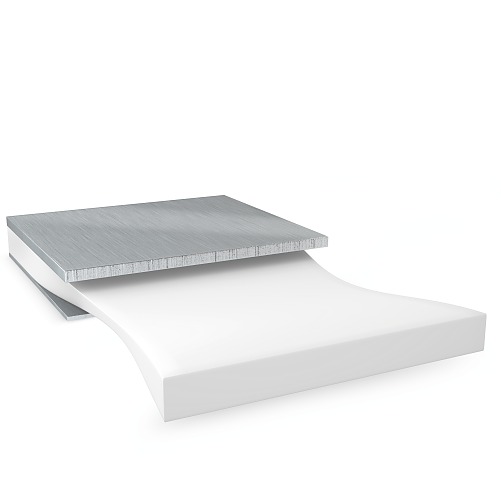

tesa® 70410 is a double-sided mounting tape which can be removed by stretching the adhesive in the bond plane (stripping).
tesa® 70410 features:
- Thickness: 100µm
- Very high bonding strength
- Superior push out and shock resistance
- Easy removability even after long bonding time by stretching the adhesive
Main applications
- Temporary fixation of components in electronic devices during the production process
- Permanent mounting of components in electronic devices with the option to remove the parts for repairing or recycling
Technical properties
Backing material
none
Color
white
Total thickness
100 µm
Type of adhesive
specialty
Type of liner
glassine
Adhesion properties
Adhesion to Glass (after 14 days)
9 N/cm
Adhesion to Glass (initial)
9 N/cm
Adhesion to PC (after 14 days)
9 N/cm
Adhesion to PC (initial)
9 N/cm
Adhesion to PE (after 14 days)
8 N/cm
Adhesion to PE (initial)
8 N/cm
Adhesion to Steel (after 14 days)
9 N/cm
Adhesion to Steel (initial)
9 N/cm
Rating properties
Temperature resistance short term
90 °C
Temperature resistance long term
60 °C
Static shear resistance at 23°C
++
Static shear resistance at 40°C
++
Removability after 14 days (23°C)
++
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
