tesa® 70699 tesa® Bond&Detach
1000µm double-sided black Bond & Detach tape
Sustainable Aspects
- solvent free coating
- Thickness: 1000µm
- Light blocking
- Superior bonding strength
Product description
tesa® 70699 is a double-sided mounting tape in black which can be easily removed by stretching the adhesive.
Product details and specifications
Product Features
- Thickness: 1000µm
- Light blocking
- Superior bonding strength
- Very good push out and shock resistance
- Easy removability by stretching the adhesive
- Residue free removal even after long bonding time
- High performance also on LSE substrates
Application Fields
- Permanent mounting of components in electronic devices with easy removal option
- Temporary fixation of components in electronic devices during the production process
- Screen mounting in Notebooks and All-In-One-PCs
Sustainable Aspects
- solvent free coating

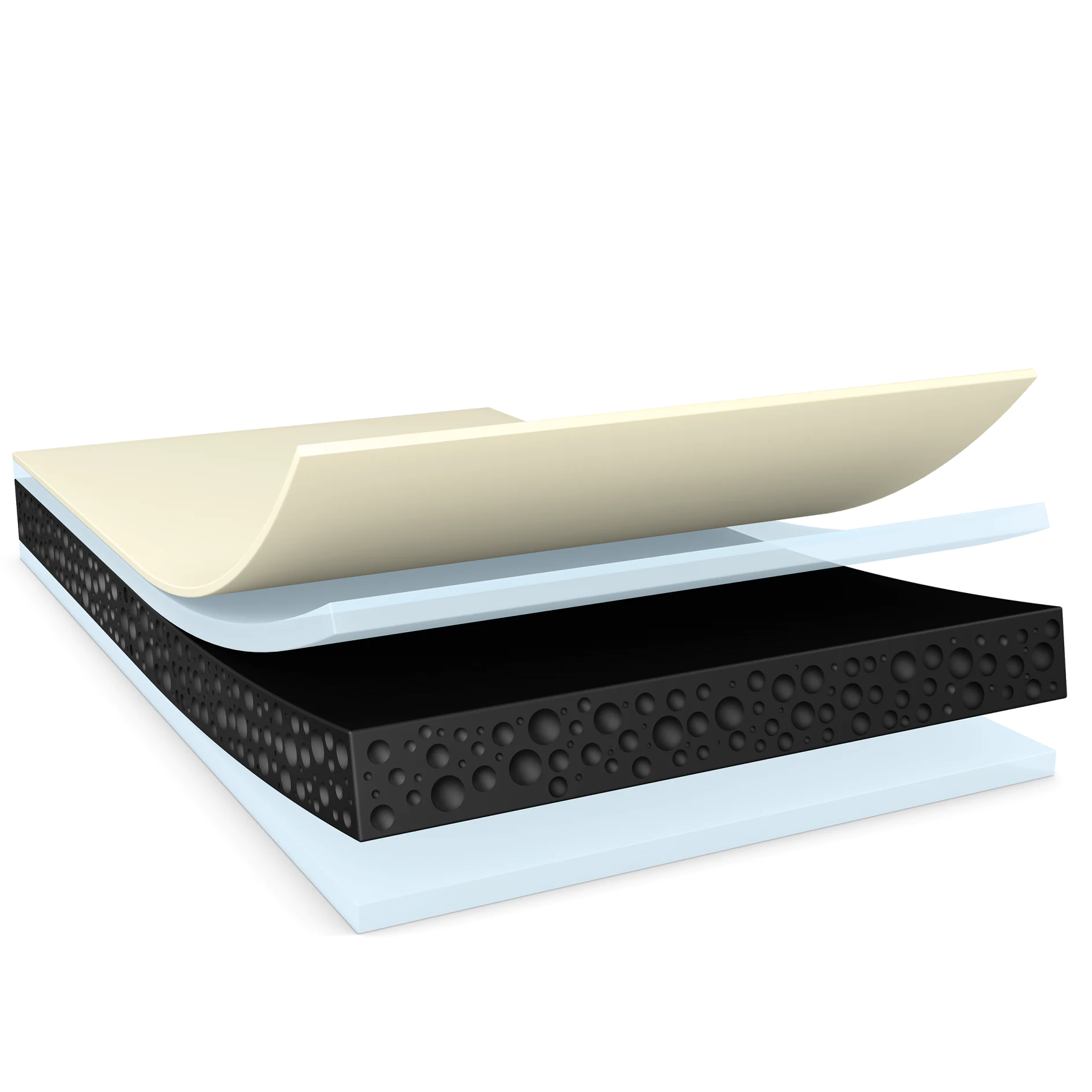

Product Construction
| Adhesive Type | specialty |
|---|---|
| Backing material | none |
| Color | black |
| Color of liner | brown |
| Liner Type | glassine |
| Thickness of liner | 72 µm |
| Total thickness | 1000 µm |
Product Construction
| Adhesive Type | specialty |
|---|---|
| Backing material | none |
| Color | black |
| Color of liner | brown |
| Liner Type | glassine |
| Thickness of liner | 72 µm |
| Total thickness | 1000 µm |
Properties / Performance Values
| Temperature resistance short term | 90 °C |
|---|---|
| Removability after 14 days (23°C) | very good |
| Solvent free | yes |
| Static shear resistance at 40°C | very good |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 60 °C |
| Residue-free removability | yes |
Properties / Performance Values
| Temperature resistance short term | 90 °C |
|---|---|
| Removability after 14 days (23°C) | very good |
| Solvent free | yes |
| Static shear resistance at 40°C | very good |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 60 °C |
| Residue-free removability | yes |
Adhesion to Values
| Adhesion to Aluminium (initial) | 20 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 20 N/cm |
| Adhesion to Magnesium (initial) | 17 N/cm |
| Adhesion to Magnesium (after 14 days) | 17 N/cm |
| Adhesion to PE (initial) | 13 N/cm |
| Adhesion to PE (after 14 days) | 13 N/cm |
| Adhesion to Steel (initial) | 26 N/cm |
| Adhesion to Steel (after 14 days) | 26 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 20 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 20 N/cm |
| Adhesion to Magnesium (initial) | 17 N/cm |
| Adhesion to Magnesium (after 14 days) | 17 N/cm |
| Adhesion to PE (initial) | 13 N/cm |
| Adhesion to PE (after 14 days) | 13 N/cm |
| Adhesion to Steel (initial) | 26 N/cm |
| Adhesion to Steel (after 14 days) | 26 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
