tesa® 68962
50µm double sided transparent high performance film tape
Product Features
- Thickness: 50µm
- Excellent bonding strength
- Quick bonding property
Product description

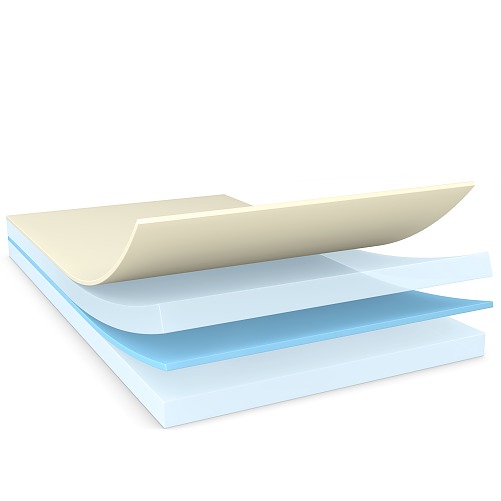

tesa® 68962 is a double-sided self-adhesive tape consisting of a transparent PET film backing and a special adhesive.
Product details and specifications
Product Features
- Thickness: 50µm
- Excellent bonding strength
- Quick bonding property
- Very good shear resistance
- Very good anti-repulsion performance
- Excellent resistance to demanding environmental conditions
Application Fields
- Component mounting
- Demanding mounting applications
- Mesh mounting
Product Construction
| Backing material | PET film |
|---|---|
| Color | transparent |
| Color of liner | white/red logo |
| Thickness of liner | 71 µm |
| Total thickness | 50 µm |
| Weight of liner | 80 g/m² |
Product Construction
| Backing material | PET film |
|---|---|
| Color | transparent |
| Color of liner | white/red logo |
| Thickness of liner | 71 µm |
| Total thickness | 50 µm |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 7 N/cm |
| Static shear resistance at 40°C | very good |
| Ageing resistance (UV) | very good |
| Tack | low |
| Humidity resistance | very good |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 7 N/cm |
| Static shear resistance at 40°C | very good |
| Ageing resistance (UV) | very good |
| Tack | low |
| Humidity resistance | very good |
Adhesion to Values
| Adhesion to PC (initial) | 11 N/cm |
|---|---|
| Adhesion to PC (after 14 days) | 11 N/cm |
| Adhesion to PE (initial) | 8 N/cm |
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to PP (initial) | 8.5 N/cm |
| Adhesion to PP (after 14 days) | 8.5 N/cm |
| Adhesion to Steel (initial) | 12.1 N/cm |
| Adhesion to Steel (after 14 days) | 12.5 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 11 N/cm |
|---|---|
| Adhesion to PC (after 14 days) | 11 N/cm |
| Adhesion to PE (initial) | 8 N/cm |
| Adhesion to PE (after 14 days) | 8.5 N/cm |
| Adhesion to PP (initial) | 8.5 N/cm |
| Adhesion to PP (after 14 days) | 8.5 N/cm |
| Adhesion to Steel (initial) | 12.1 N/cm |
| Adhesion to Steel (after 14 days) | 12.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
