tesa® 68144
100 µm double-sided splicing tape
Product Features
- The special adhesive formulation ensures a secure bond on a variety of paper materials, even at elevated temperatures.
Product description

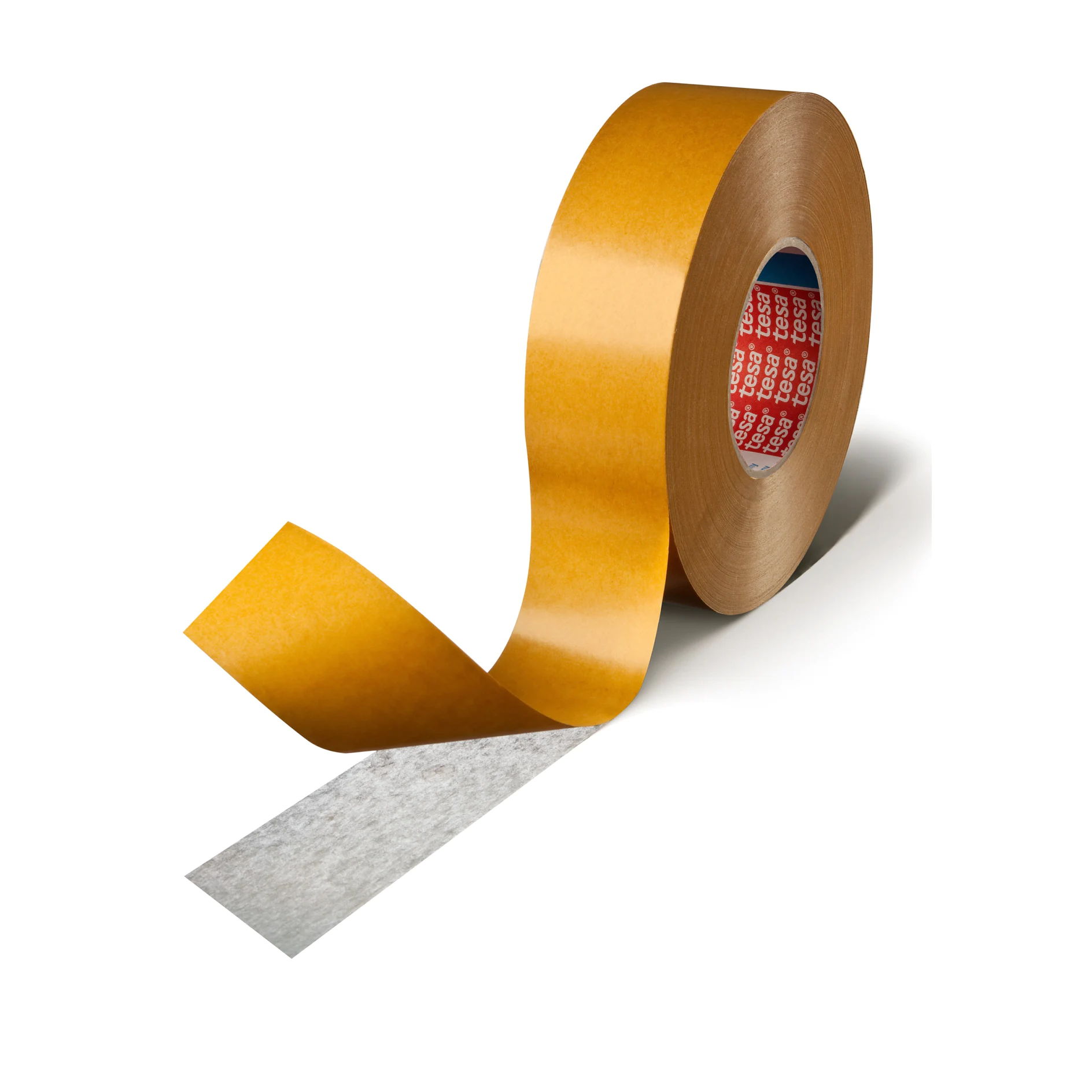

tesa® 68144 is a 100 µm translucent double-sided splicing tape consisting of a non-woven carrier coated with an acrylic adhesive, covered by a white paper liner.
Product details and specifications
Product Features
- The special adhesive formulation ensures a secure bond on a variety of paper materials, even at elevated temperatures.
Application Fields
Splicing of

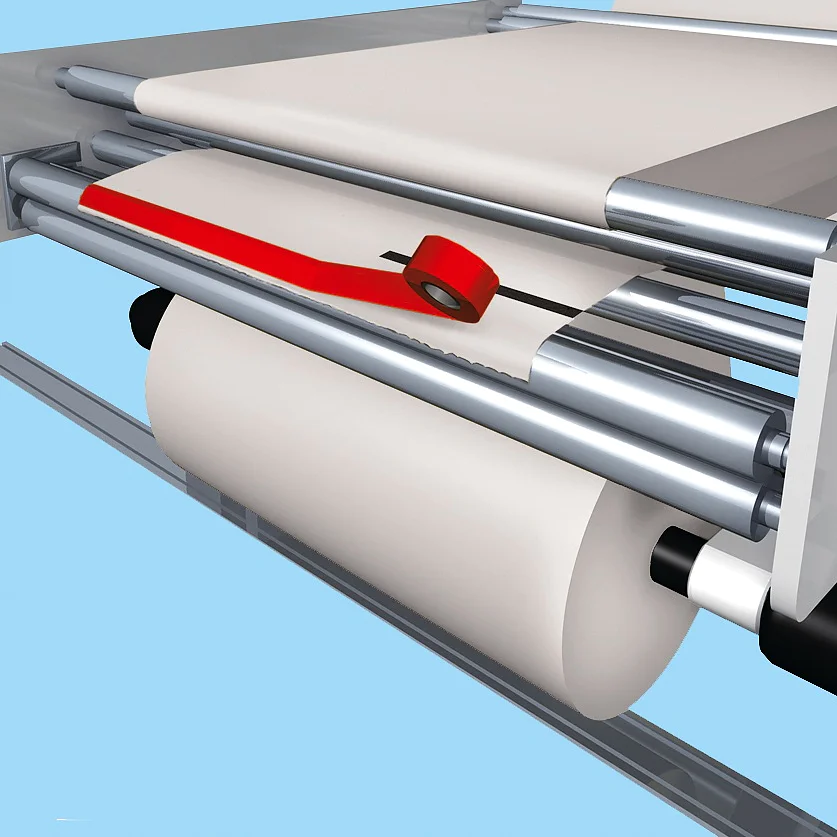

- Paper (liner and flute) in corrugated board production
- Paper in newsprint and converting processes
- Lightweight cardboard
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | PE-coated paper |
| Thickness of liner | 120 µm |
| Thickness of tape | 100 µm |
| Total thickness | 100 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | PE-coated paper |
| Thickness of liner | 120 µm |
| Thickness of tape | 100 µm |
| Total thickness | 100 µm |
Properties / Performance Values
| Elongation at break | 2 % |
|---|---|
| Tensile strength | 9 N/cm |
| Temperature resistance short term | 100 °C |
| Temperature resistance long term | 70 °C |
Properties / Performance Values
| Elongation at break | 2 % |
|---|---|
| Tensile strength | 9 N/cm |
| Temperature resistance short term | 100 °C |
| Temperature resistance long term | 70 °C |
Adhesion to Values
| Adhesion to Aluminium (initial) | 3.6 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 4.2 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 14 days) | 7.1 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 8.1 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 3.6 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 4.2 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 14 days) | 7.1 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 8.1 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
